4. Lift the lever and turn the duct holder
upwards.

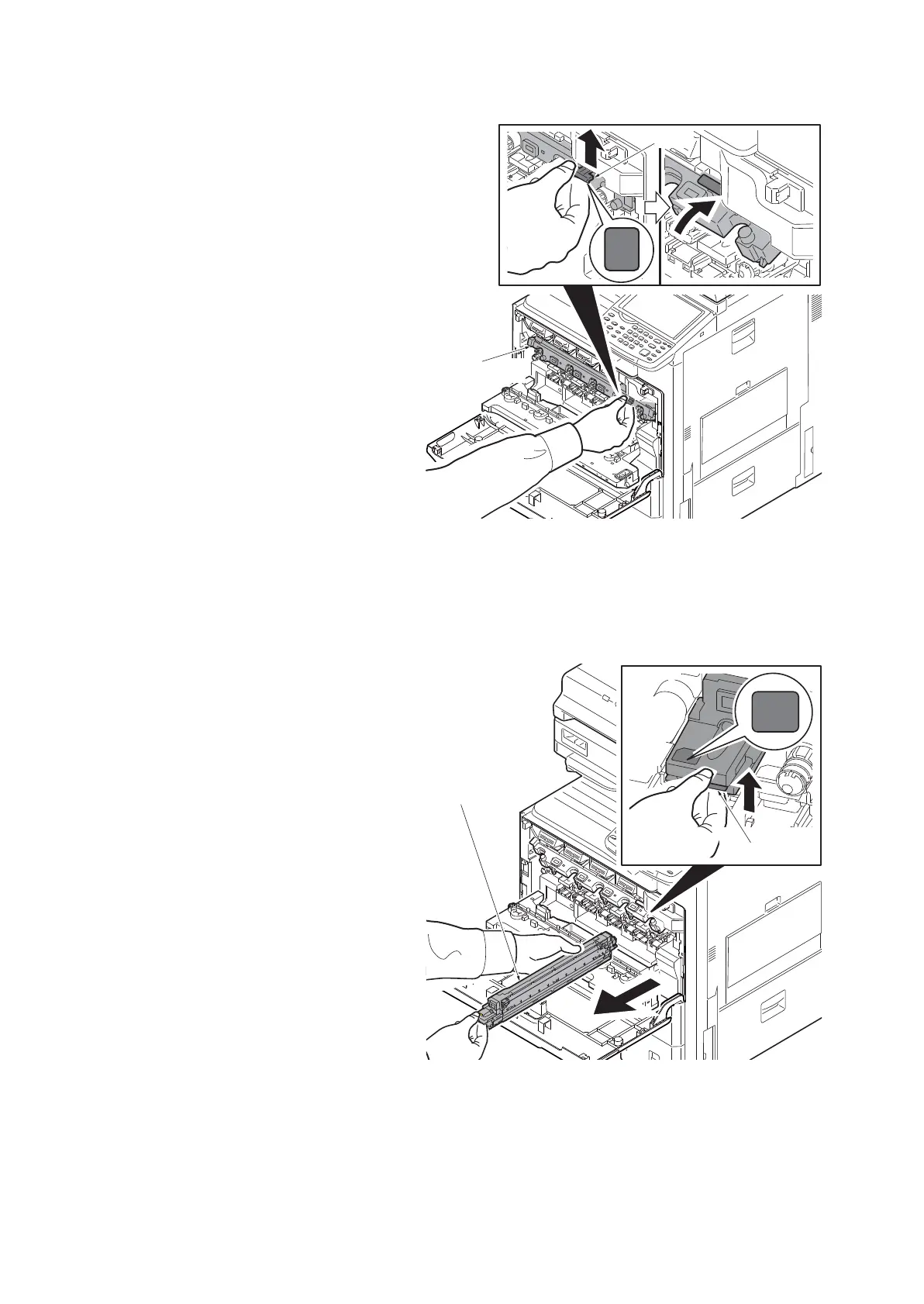

Figure 1-5-24
5. Push the lock lever of the developer
unit upwards and then remove the
developer unit.
6. Check or replace the developer unit and
refit all the removed parts.
7. When replacing the new unit,proceed
as follows:
1)Performs maintenance mode U410
(Adjusting the halftone automatically)
(see page 1-3-109).
Figure 1-5-25
Duct holder
e
Lever
g
Lock lever
Developer unit
