Kyocera TASKalfa 2550ci - Key Counter Cover Retainer

2MV
1-2-37

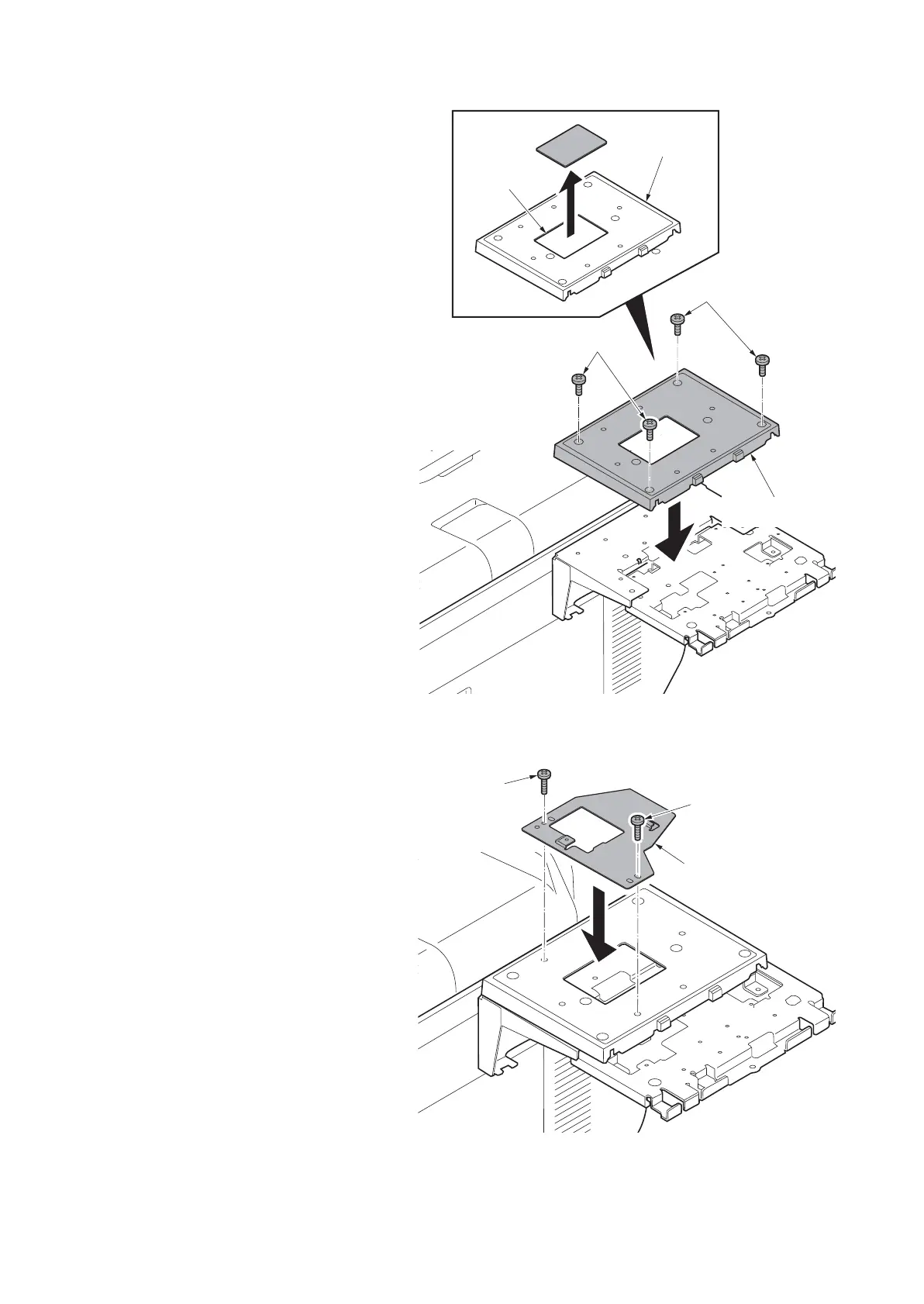

31. Cut out the aperture plate on the tray
cover using nippers.
32. Fit the tray cover to the tray stay using
four screws.
Figure 1-2-51
33. Fit the key counter cover retainer using
two screws.
Figure 1-2-52
M4 x 8 screws
Aperture
Tray cover
Tray cover
M4 x 8 screws
Key counter
cover retainer
M4 x 20
tap-tight S
screw
M4 x 20
tap-tight S screw
