1-5-4 Developing section
(1) Detaching and refitting the developing unit
Procedures

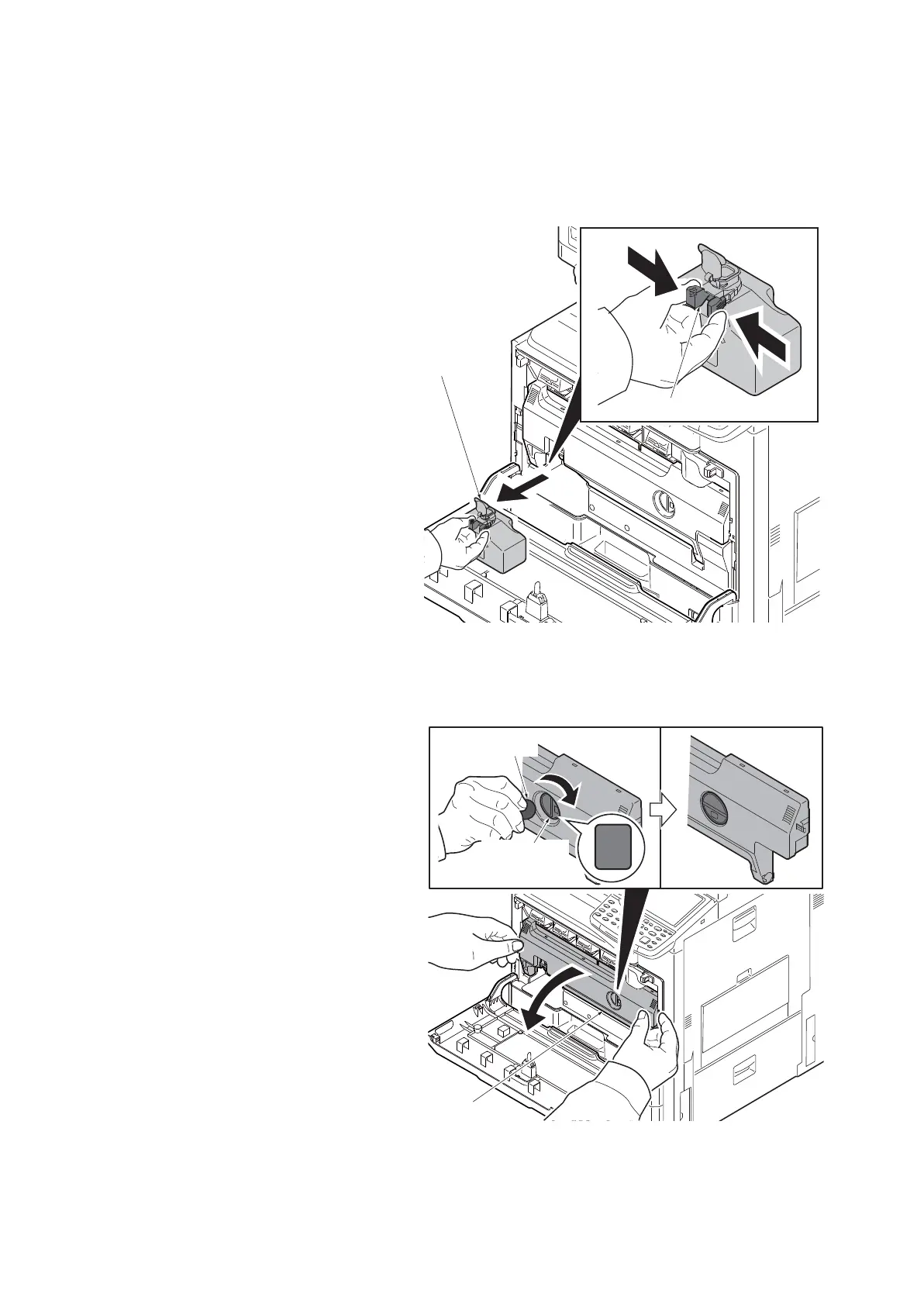

1. Open the front cover.
2. Release the lock lever and then remove
the waste toner box.
Figure 1-5-22
3. Turn the lock lever to the right using a
coin and then knock down the duct
cover forwards.
Figure 1-5-23
Lock lever
Waste
toner box
d
Lock lever
Duct cover
Coin
