2MV
1-5-12

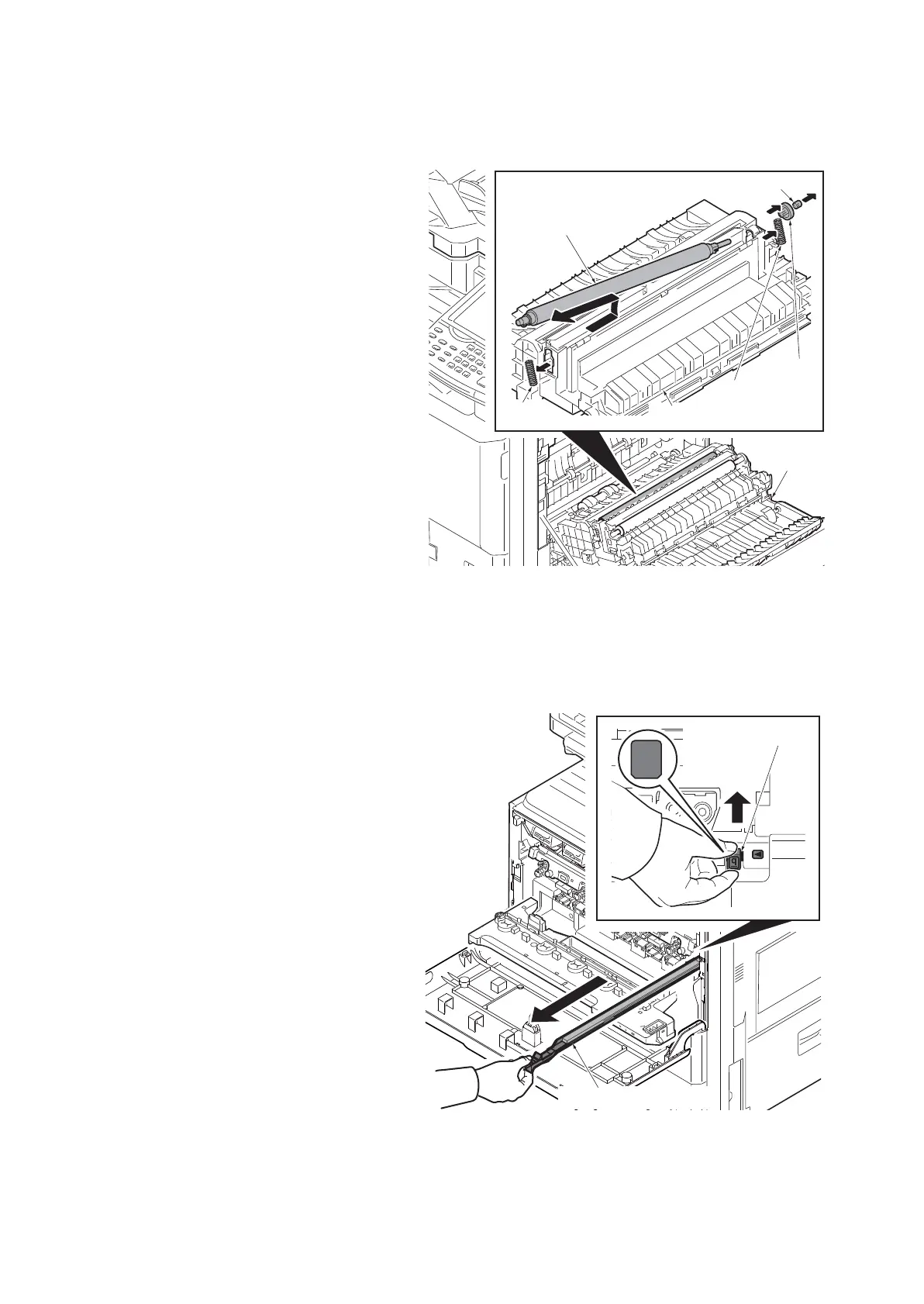

(3) Detaching and refitting the registration roller
Procedures
1. Open the right cover 1.
2. Remove the transfer roller unit.
(See page 1-5-17)
3. Remove two springs at the front and
back of the registration roller right.
4. Remove the cap and gear.
5. Slide and remove the registration roller
right.
6. Check or replace the registration roller
right and refit all the removed parts.
Figure 1-5-18
(4) Detaching and refitting the registration cleaner
Procedures
1. Open the front cover.
2. Open the duct cover. (See page 1-5-15)
3. Set the cleaner lever up and draw the
registration cleaner frontward.
4. Check or replace the registration
cleaner and refit all the removed parts.
Figure 1-5-19
Right
cover 1
Registration
roller right
Spring
Spring
Gear
Cap
Duplex unit
_
q
Registration cleaner
Cleaner lever
To Next Page
