2MV
1-2-43
1-2-5 Installing the IC card reader holder (option)
IC card reader holder installation requires the following parts:
Supplied parts of IC card reader holder (1709AD0UN0):
The card reader base, card reader mount, and the pin are packaged as an assembled kit.
Procedure
1. Press the power key on the operation
panel to off. Make sure that the power
indicator and the memory indicator are
off before turning off the main power
switch. And then unplug the power
cable from the wall outlet.
2. Remove the pin of the card reader base
and then remove the card reader
mount.

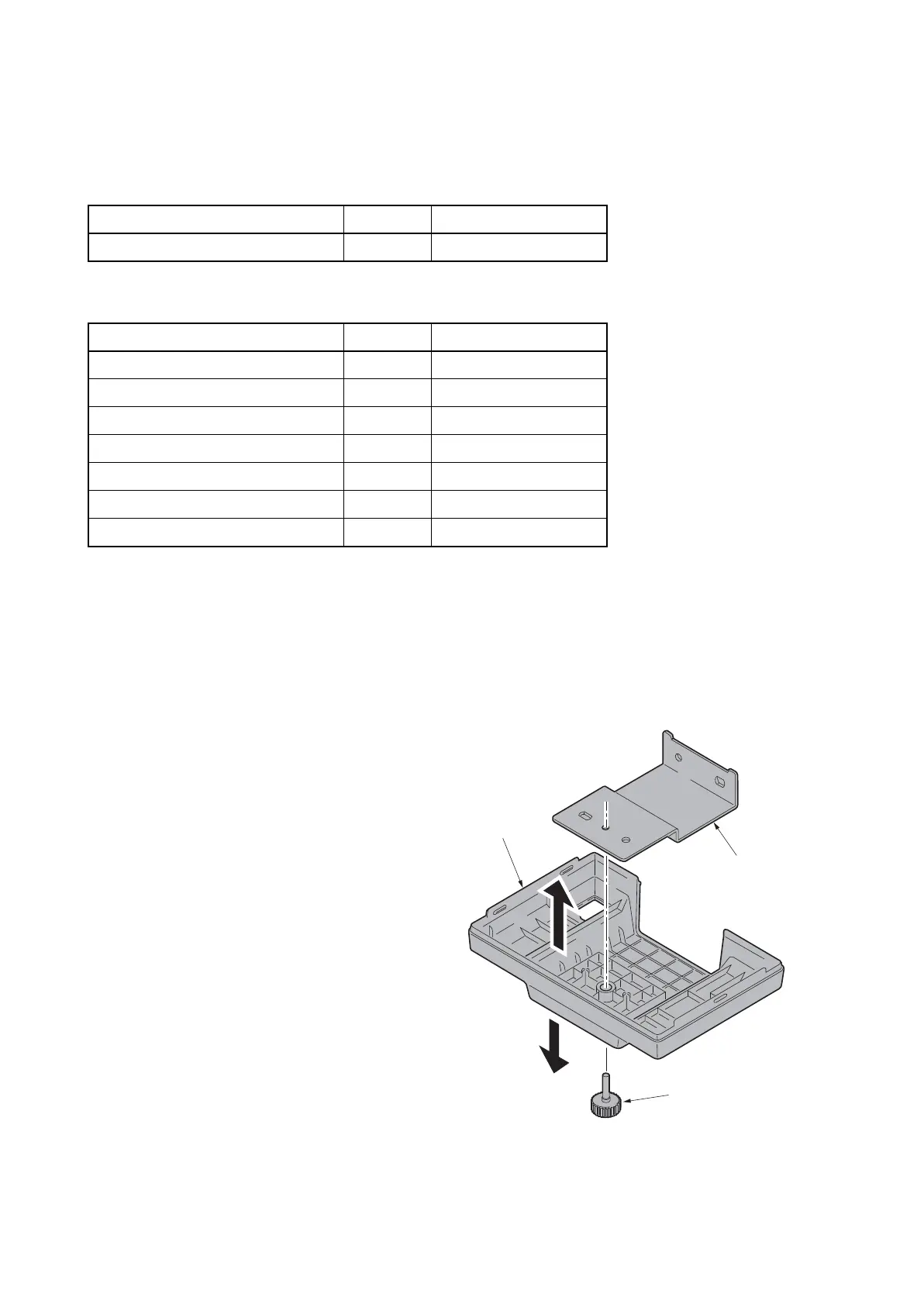

Figure 1-2-60
Parts Quantity Part.No.
IC card reader holder 1 1709AD0UN0 (option)
Parts Quantity Part.No.
Card reader case
1-
Card reader base
1-
Card reader mount
1-
Card reader tray
1-
USB Wire (For extension)
1-
Pin
3 303NS24410
Clamp 6 7YZM690002++H01
Card reader
base
Pin
Card reader
mount
To Next Page
