16. Attaches the wire saddle B and the wire
saddle C to right upper section of the
machine and then release two hooks of
the thir.
17. Attach the edging to the aperture part.

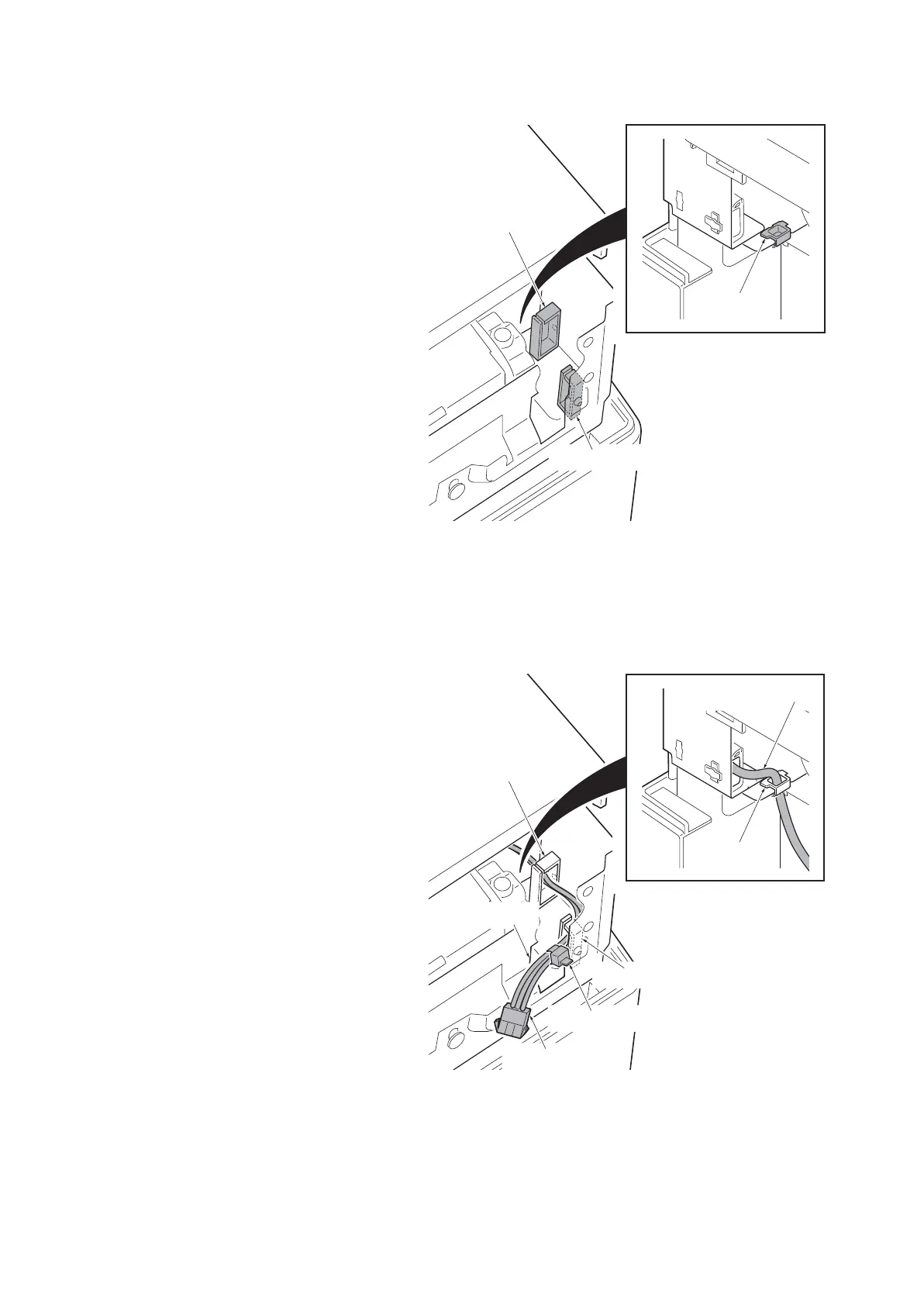

Figure 1-2-45
18. Pass the key counter wire through the
wire saddle B and the wire saddle C
and then pull out from the aperture part.
Note: Put a binding band on the out
side of the wire saddle B.
19. Pass the key counter wire through the
edging.
Figure 1-2-46
Wire saddle B
Wire saddle C
Edging
Connector
Wire saddle C
Edging
Key counter wire
Binding band
Aperture
Wire saddle B
