2MV
2-2-9
(4) Others

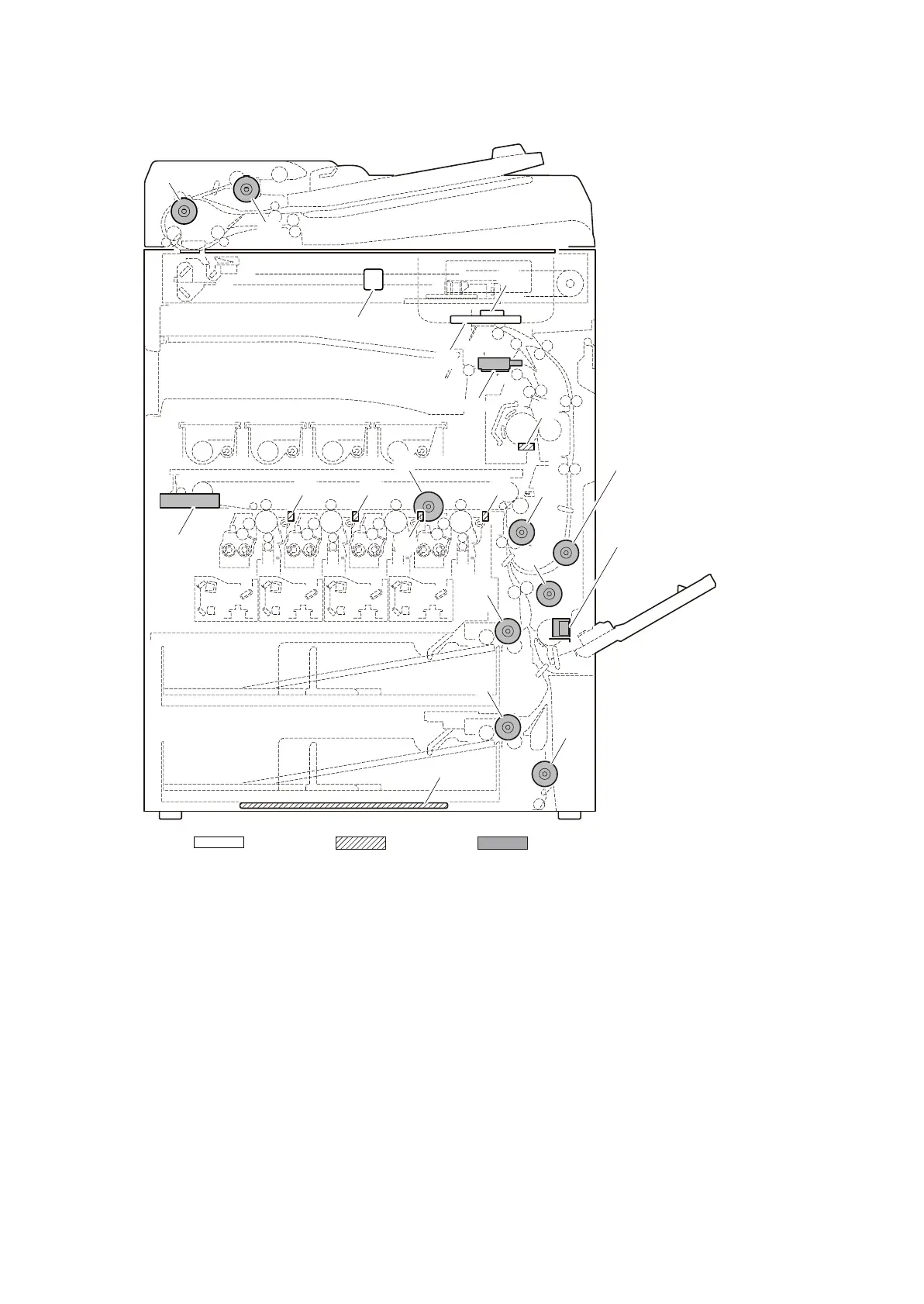

Figure 2-2-4 Others
1. Paper feed clutch 1 (PFCL1) ................ Controls the primary paper feed from cassette 1.
2. Paper feed clutch 2 (PFCL2) ................ Controls the primary paper feed from cassette 2.
3. Mid clutch 1 (MCL1).............................. Controls the paper conveying.
4. Mid clutch 2 (MCL2).............................. Controls the paper conveying.
5. Registration clutch (RCL)...................... Controls the secondary paper feed.
6. Duplex clutch (DUCL) ........................... Controls the drive of the duplex feed roller.
7. Developer stop clutch (DEVSCL).......... Controls the drive of the developer.
8. MP solenoid (MPSOL) .......................... Controls the MP bottom plate.
9. Feedshift solenoid (FSSOL).................. Operates the feedshift guide.
10. Exposure lamp (EL) .............................. Exposes originals.
11. Cleaning lamp Y (CL-Y) ........................ Eliminates the residual electrostatic charge on the drum.
12. Cleaning lamp C (CL-C)........................ Eliminates the residual electrostatic charge on the drum.
13. Cleaning lamp M (CL-M)....................... Eliminates the residual electrostatic charge on the drum.
14. Cleaning lamp K (CL-K) ........................ Eliminates the residual electrostatic charge on the drum.
6
8
5
14
19
9
1
2
3
7
21
20
11
12
1310
15
4
16
17
18
Front Inside Rear
To Next Page
