Kyocera TASKalfa 2550ci - MP Tray Paper Feed Section; MP Tray Paper Feed Section Block Diagram

2MV
2-1-3
(2) MP tray paper feed section
The MP tray can contain 100 sheets. Feeding from the MP tray is performed by the rotation of the MP paper
feed roller. Also, function of the MP separation pad prevents paper from multiple feeding.

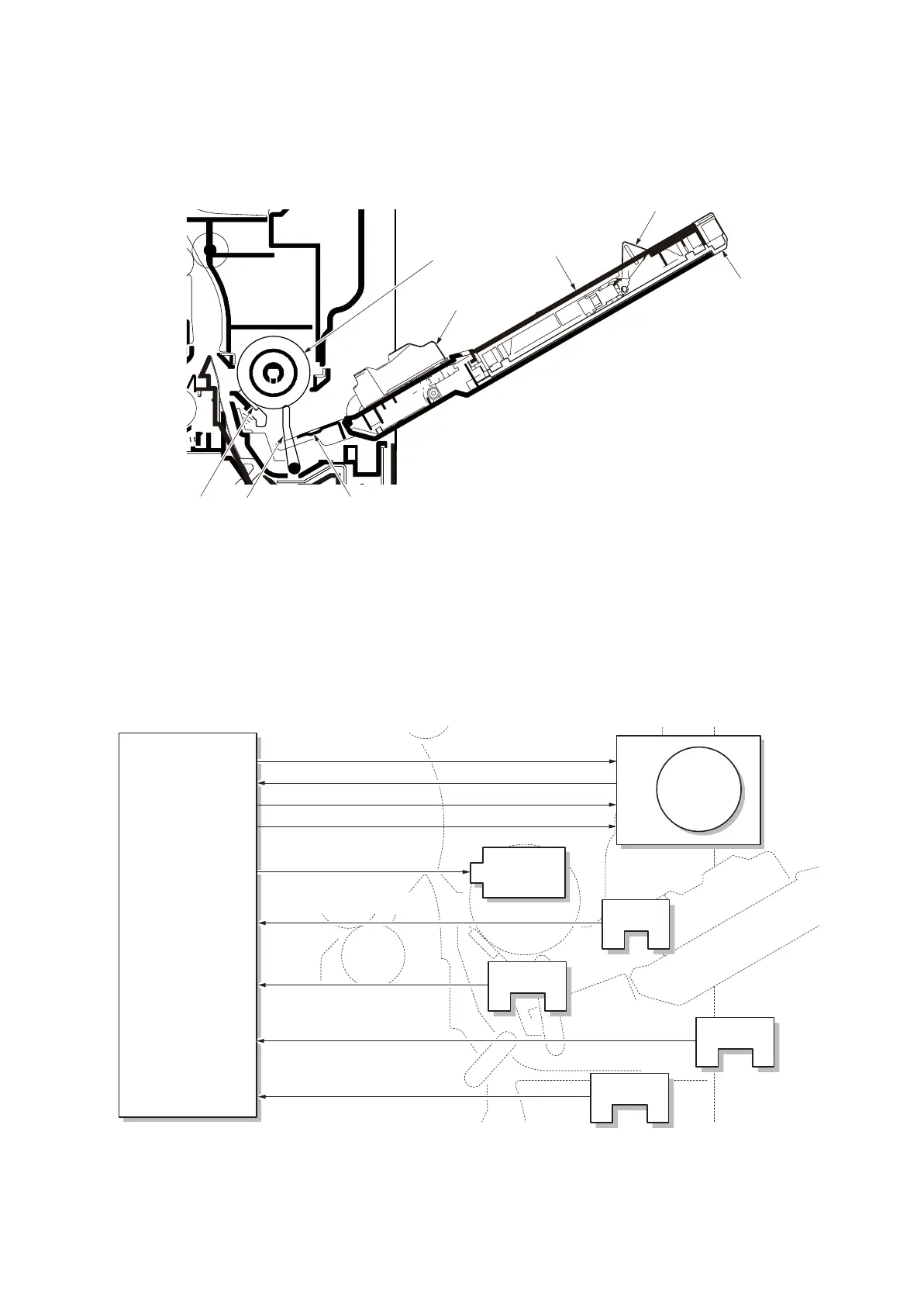

Figure 2-1-3 MP tray paper feed section
Figure 2-1-4 MP tray paper feed section block diagram
5
1
3
4
2
6
7
8
1. MP paper feed roller
2. MP separation pad
3. MP bottom plate
4. Actuator(MP paper feed sensor)
5. MP (multi purpose)tray
6. MP tray extension
7. MP paper width guide
8. Actuator (MP paper length switch)
MPPS
MPSOL
MPF_SENSE
YC5-9
YC2-2
YC2-13
YC2-12
YC2-11
MPF_SOL_REM
YC2-14
FEED_MT_CW
FEED_MT_LDY
FEED_MT_CLK
FEED_MT_REM
5
6
4
3
CM1
EPWB
MPTDSW
MPF_TRAY
YC44-6
MPPLSW
MPFLSIZE
YC44-3
MPPWSW
MPFWSIZE
YC44-2
