Kyocera TASKalfa 2550ci - Page 363

2MV
1-5-30

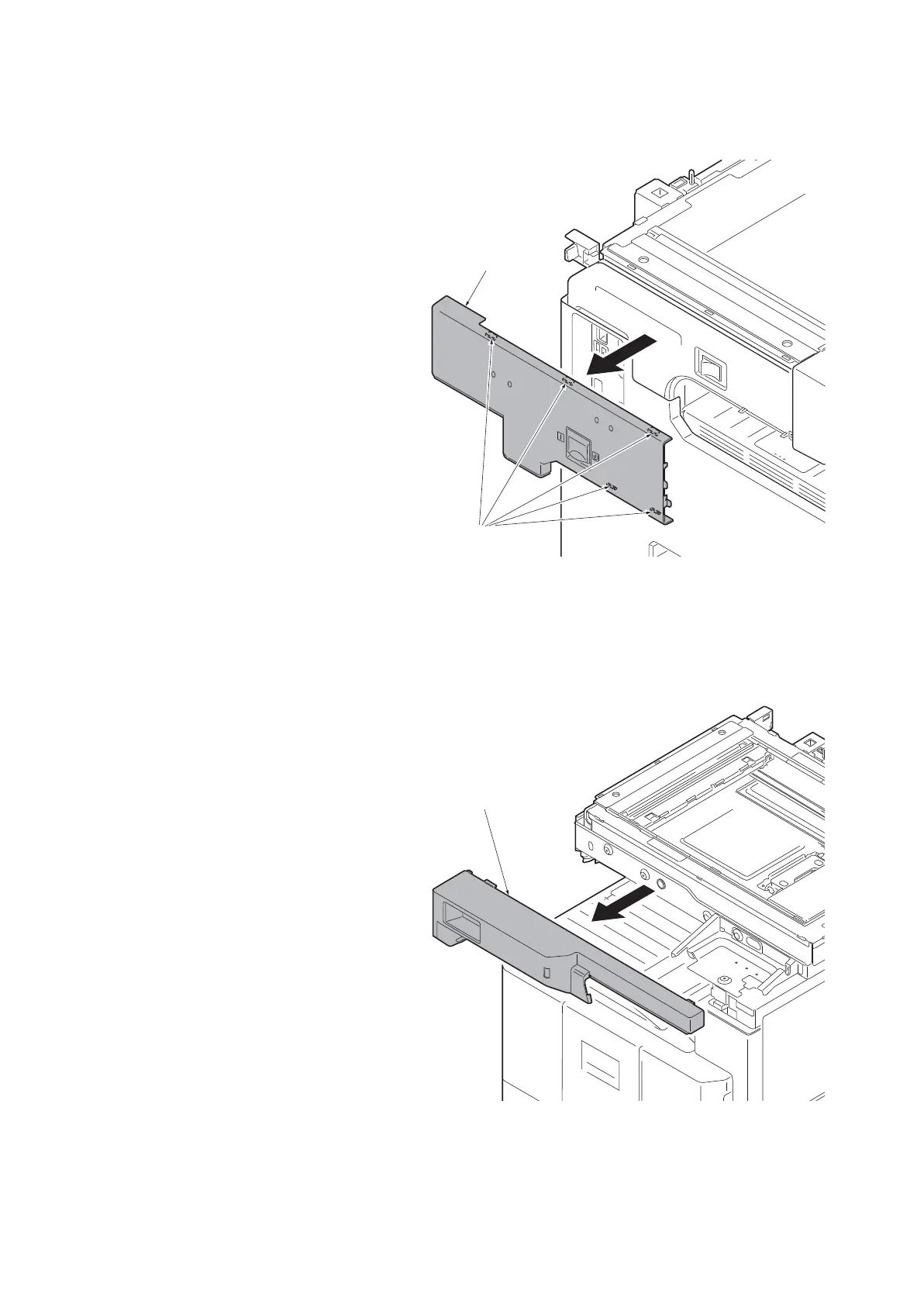

5. Unhook five hooks and then remove the
ISU front cover.
Figure 1-5-53
6. Remove the job separator tray.
7. Remove the operation panel unit.
8. Remove the ISU front cover.
Figure 1-5-54
Left upper cover
Hooks
ISU front cover
