Kyocera TASKalfa 2550ci - Page 377

2MV
1-5-44
7. Remove all connectors and FFC from
the main PWB.
8. Remove seven screws and then
remove the main PWB.
9. Check or replace the main PWB and
refit all the removed parts.

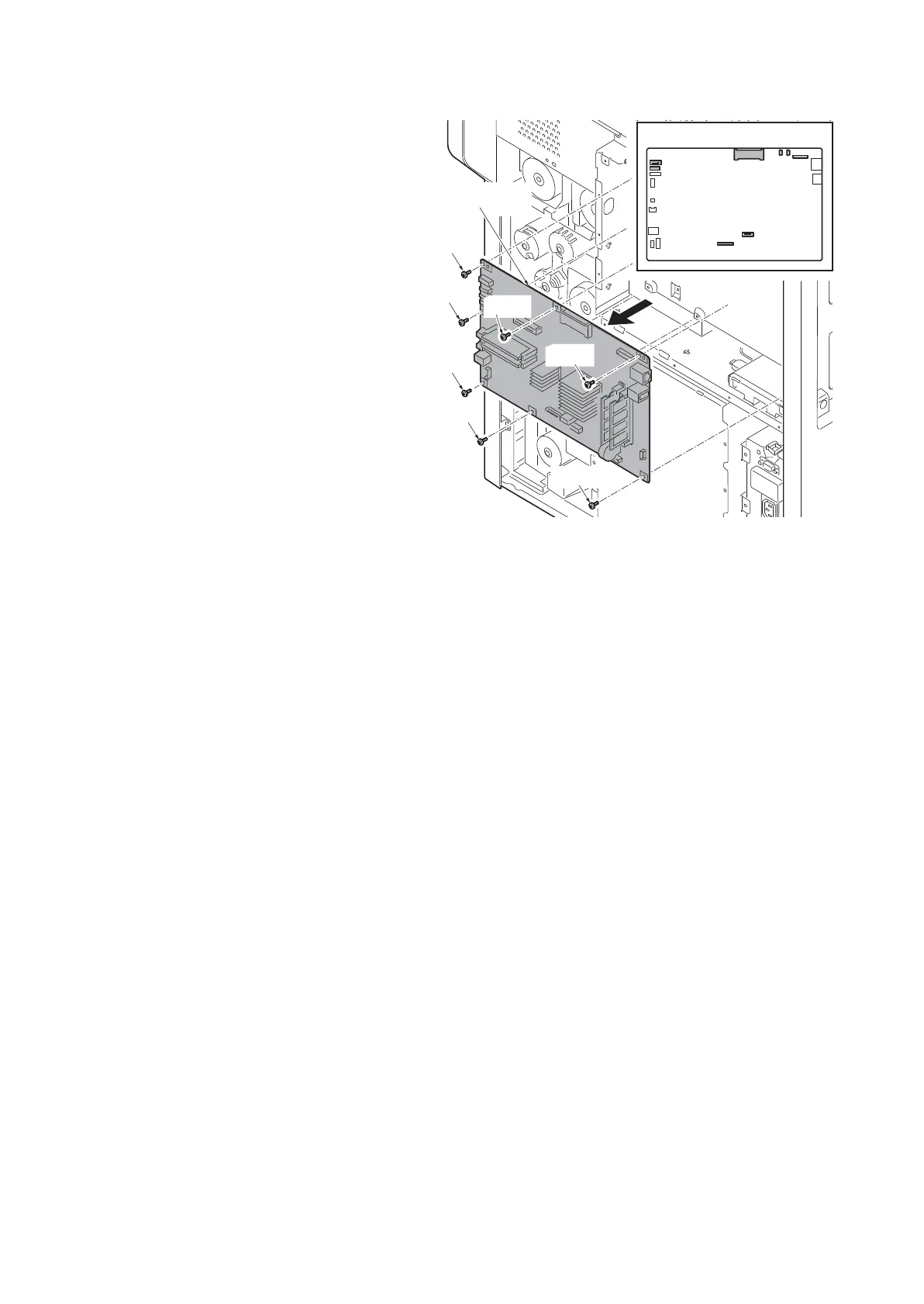

Figure 1-5-79
PWB connector
YC25
YC11
YC30
YC7
YC23
YC27
YC24
YC8
YC9
YC3
YC20
YC5
YC12
YC21
YC17
YC16
YC1
Screw
Screw
Screw
Screw
Screw
Screw
Main PWB
Screw
