Circuit Boards

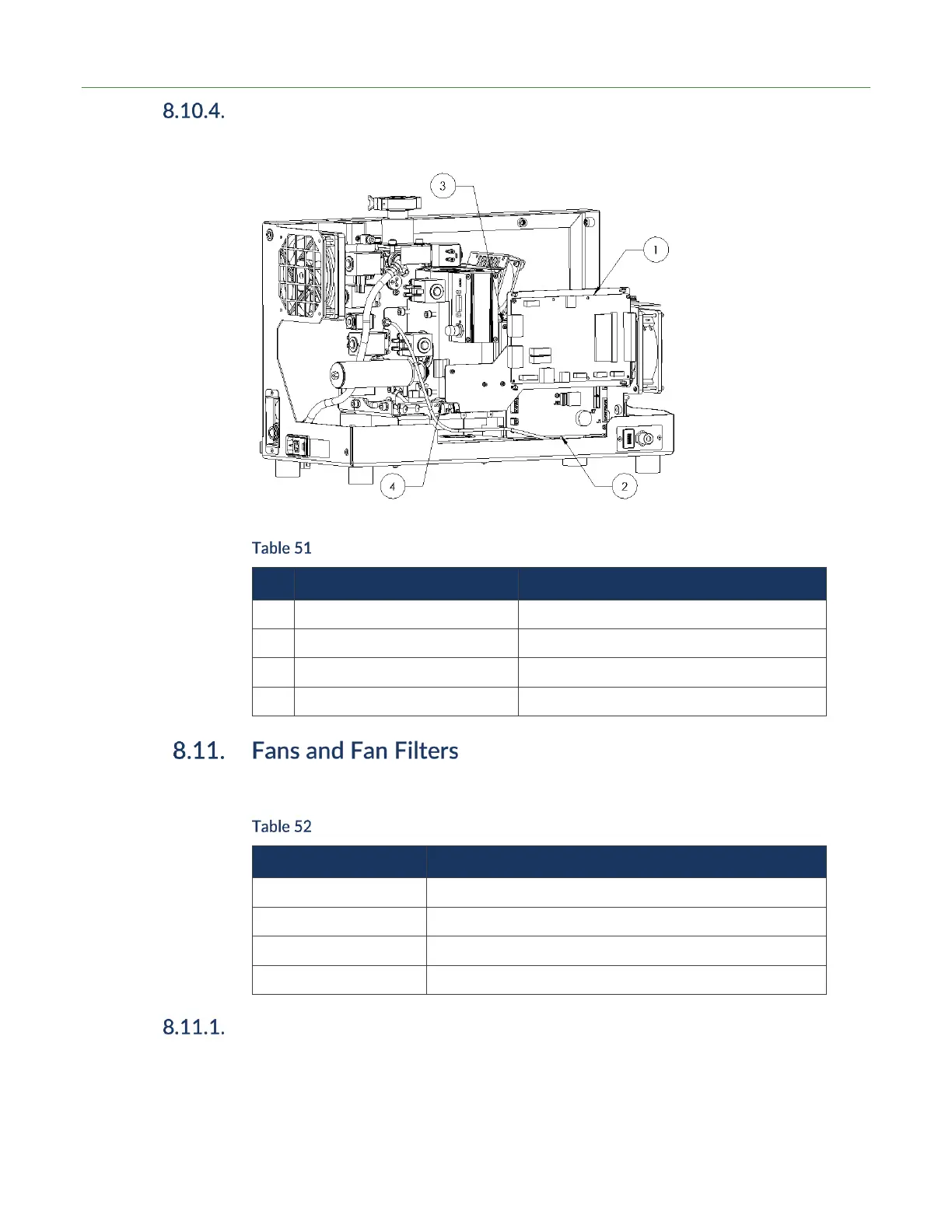

For replacement boards refer to the drawing below and part numbers in Table 51.
TITAN VERSA Circuit Boards
ID
Part Number
Description
1
LMSA115899
Main Carrier Board
2
PFP0518E1
Supervisory Board
3
PFP0392
Mass Spec Cell Board
4
PFP0513E1
Power Distribution board
For fan part replacements refer to the part numbers in Table 52 below.
TITAN VERSA Fan Components
Part Number
Description
LMSA5802
Fan, Main Enclosure and Pump
PF121658
Fan, Turbo Unit
PF101094
Fan, Mass Spectrometer
LMSA5987
Fan Filter
Fans
There are three to four fans within the TITAN VERSA. All models have an inlet fan in
the main enclosure, a turbo fan, and a mass spectrometer fan. The tower and horizontal
units also include a pump fan.
