8 MAINTENANCE AND SERVICE
LACO Technologies TITAN VERSA Operations and Maintenance Manual 157

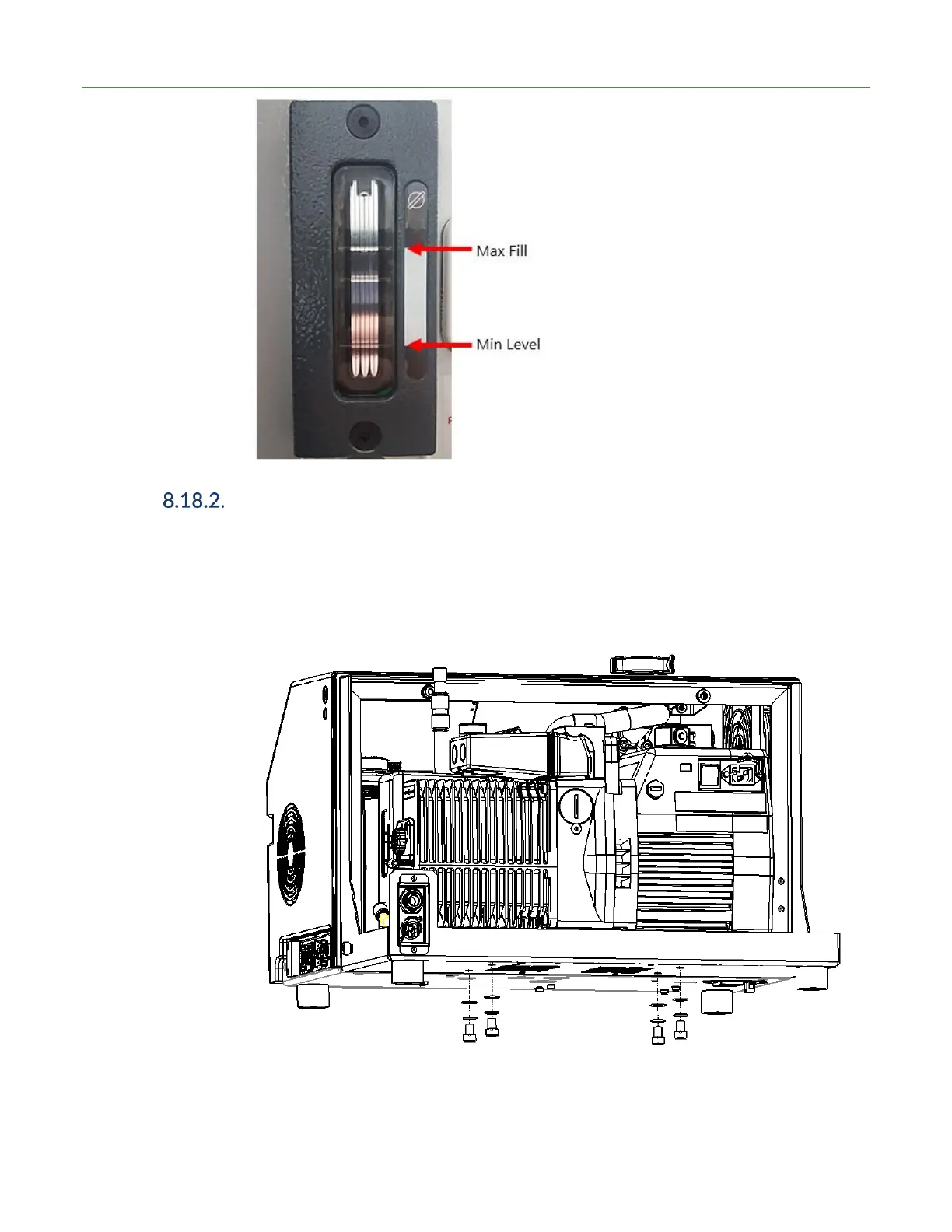

Accessing 1015 pump
1. Remove the back cover using 6 mm hex wrench.
2. Disconnect the foreline hose from the pump.
3. Disconnect the black exhaust hose from the chassis exhaust port.
4. Unplug the power cord.
To Next Page
