5 INSTALLATION
LACO Technologies TITAN VERSA Operations and Maintenance Manual 39

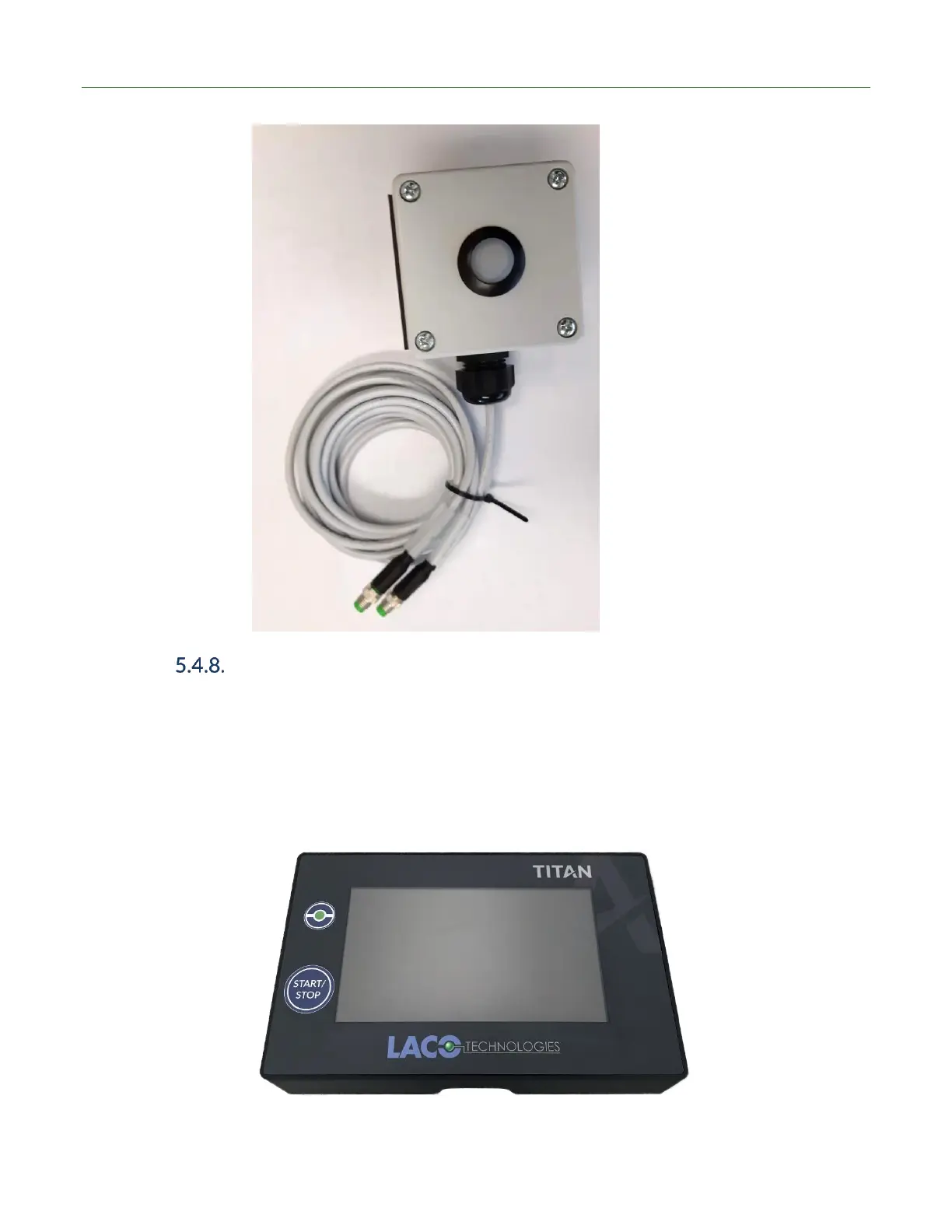

Figure 7: Pass / Fail Light Assembly (P/N: TV118378)
Remote Wired Screen
The remote screen accessory allows users to mount a remote screen when the main
screen is not accessible. Connect the M8 cable from remote screen port to male M8
port on the remote screen. Configure remote screen to Menu > System > Accessories.
See the Remote Screen Manual (SMT-07-1041) for more information on the screen and
various mounting options.
Figure 8: Remote Wired Screen
