5 INSTALLATION
LACO Technologies TITAN VERSA Operations and Maintenance Manual 37
Remote I/O

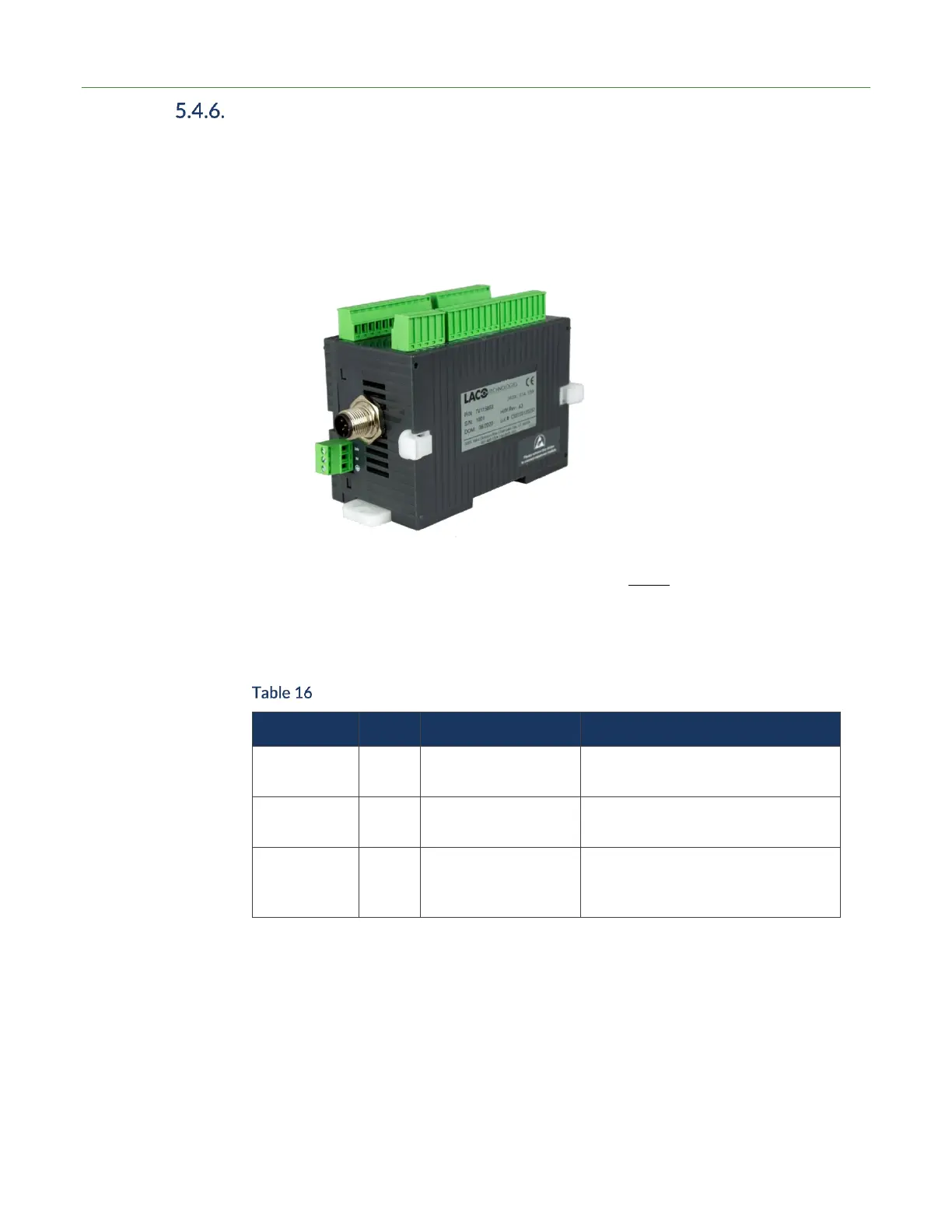

The Remote I/O module (P/N: TV115893) can be connected to the Remote I/O port
with three different cable lengths.
• TV5839 (1 m cable)
• TV5840 (3 m cable)
• TV5841 (5m cable)
The module is powered by 24 VDC power from the TITAN VERSA and is fused at
2.0 amps. In case of short circuit, replace fuse F2 (see Fuses for instructions on fuse
replacement). The module is DIN rail mountable.
The module provides the I/O functions listed in Table 16. See the TITAN VERSA Remote
I/O Manual (SMT-07-1040) for more details on the module.
Remote I/O Functions Summary
I/O Function
Total
Detail
Electrical Spec.
Digital Input
8
8 Bi-directional
(PNP or NPN)
15-30 VDC On Voltage,
Optical Isolation,10 msec response
Digital Output
8
6 Relay
2 PNP transistor
Relay: DC or AC load
Transistor: 24 VDC, 250 mA max
Analog
Output
2
Voltage (0-10 VDC) or
Current (4-20 mA)
12-bit A-D, 0.2% of full scale
Current - max load 500 Ohm
Voltage – max load 1000 Ohm
The TITAN VERSA I/O module offers the following benefits over a traditional leak
detector I/O on DB25 or DB37 connector:
• Ability to put I/O module where needed (critical in production leak testing
applications)
• Easy I/O wiring with no soldering needed; just a screwdriver is required
• 24 VDC logic inputs and outputs
• Flexible digital inputs – PNP or NPN
• 4-20 mA analog outputs provide less noise and longer runs
