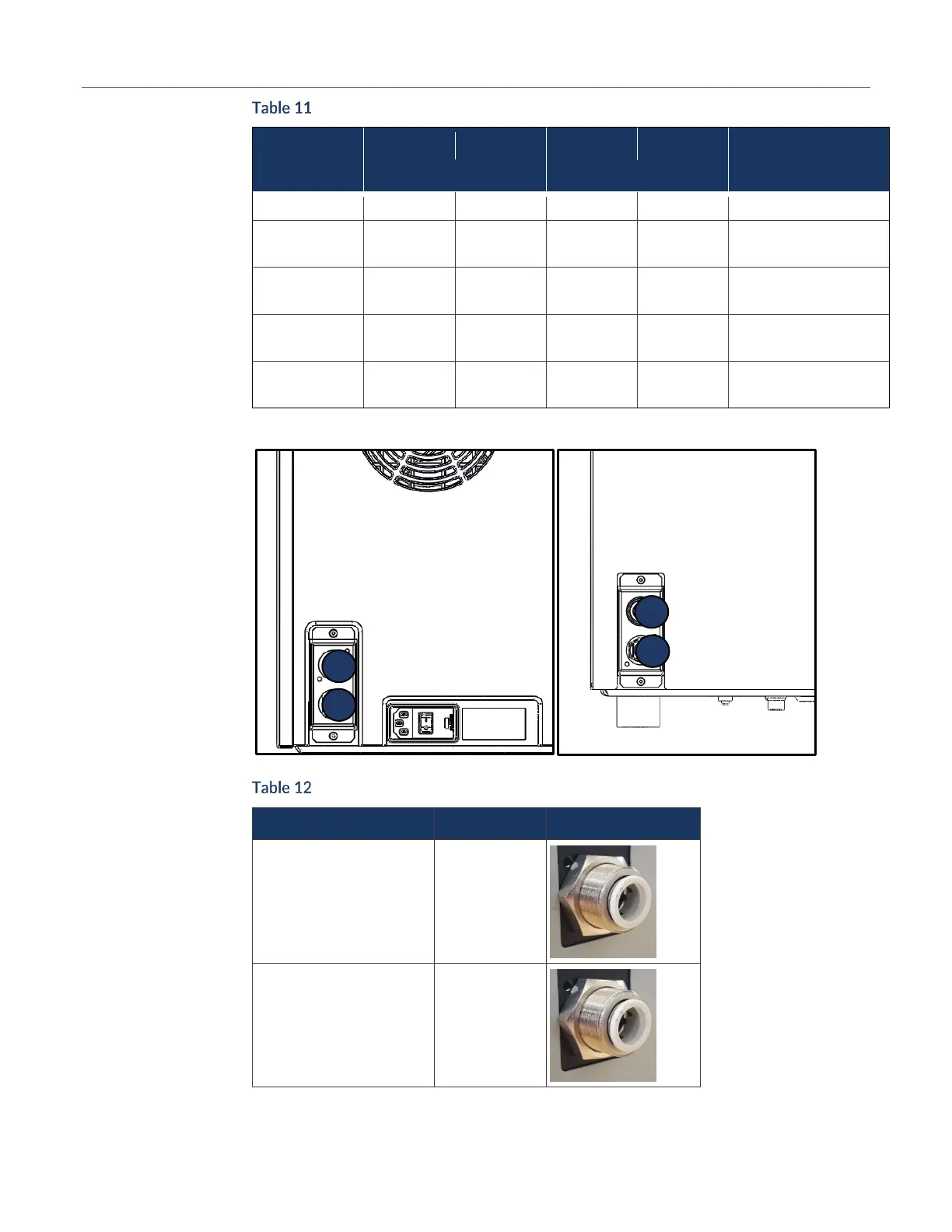

TITAN VERSA Multi-Use Ports and Locations
Port ID
1
2
3
4
Oil Fill
Model
Left Side, Bottom
Back Side, Bottom
VERSA C
Vent
Blank
N/A
N/A
N/A
VERSA T - Wet
Vent
Pump
exhaust
Oil drain
Spare
Remove Back Cover
VERSA T - Dry
Vent
Spare
Pump
exhaust
Spare
N/A
VERSA L - Wet
Vent
Spare
Oil drain
Pump
exhaust
Hole in top rear cover
VERSA L - Dry
Vent
Spare
Pump
exhaust
Spare
N/A
TITAN VERSA Multi-Use Port Details
Port
Specification
Vacuum vent
12 mm tube
Pump exhaust (wet pump)
12 mm tube
1
3
4
2
2
1
4
3
