8 MAINTENANCE AND SERVICE
156 TITAN VERSA Operations and Maintenance Manual LACO Technologies
5. Reassemble the diaphragms in reverse order.

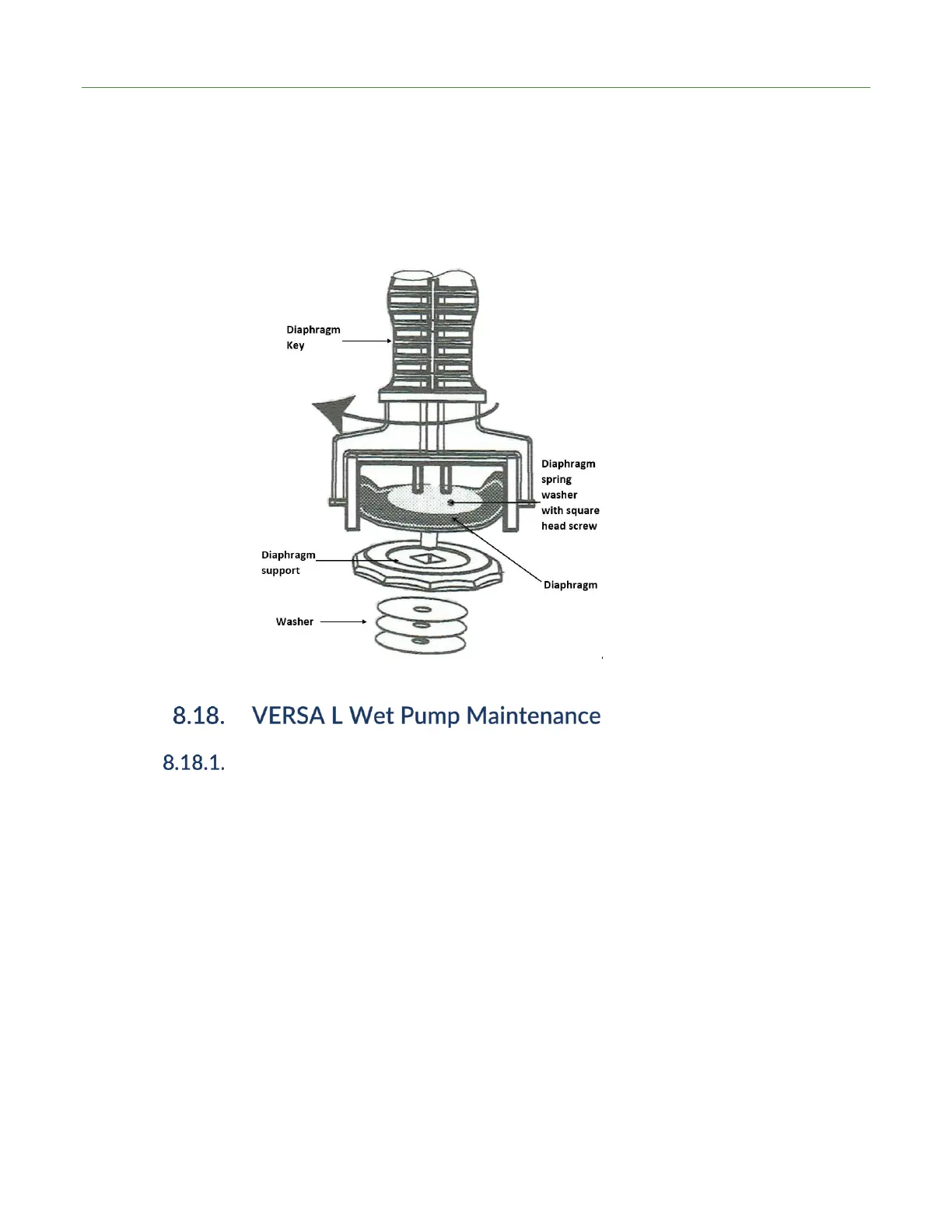

6. Install the new diaphragm between diaphragm clamping disk with square head
screw and diaphragm support disk. Ensure the square head screw of the diaphragm
clamping disk is correctly seated in the guide hole of the diaphragm support disk.
See picture below.
7. Reassemble pump in reverse order.
Check Oil Level and Color
Check the pump oil level and color monthly or more frequently under heavy usage.
Change the oil if the level is below the minimum level mark. LACO recommends
changing the pump oil if the oil color appears to be heavily discolored or white in
appearance.
➔ Oil level reading is most accurate if checked while pump is off, hot, and on a
horizontal plane.
