6 OPERATION
48 TITAN VERSA Operations and Maintenance Manual LACO Technologies
1. Set Calibrated leak type to External (see Calibration Settings).

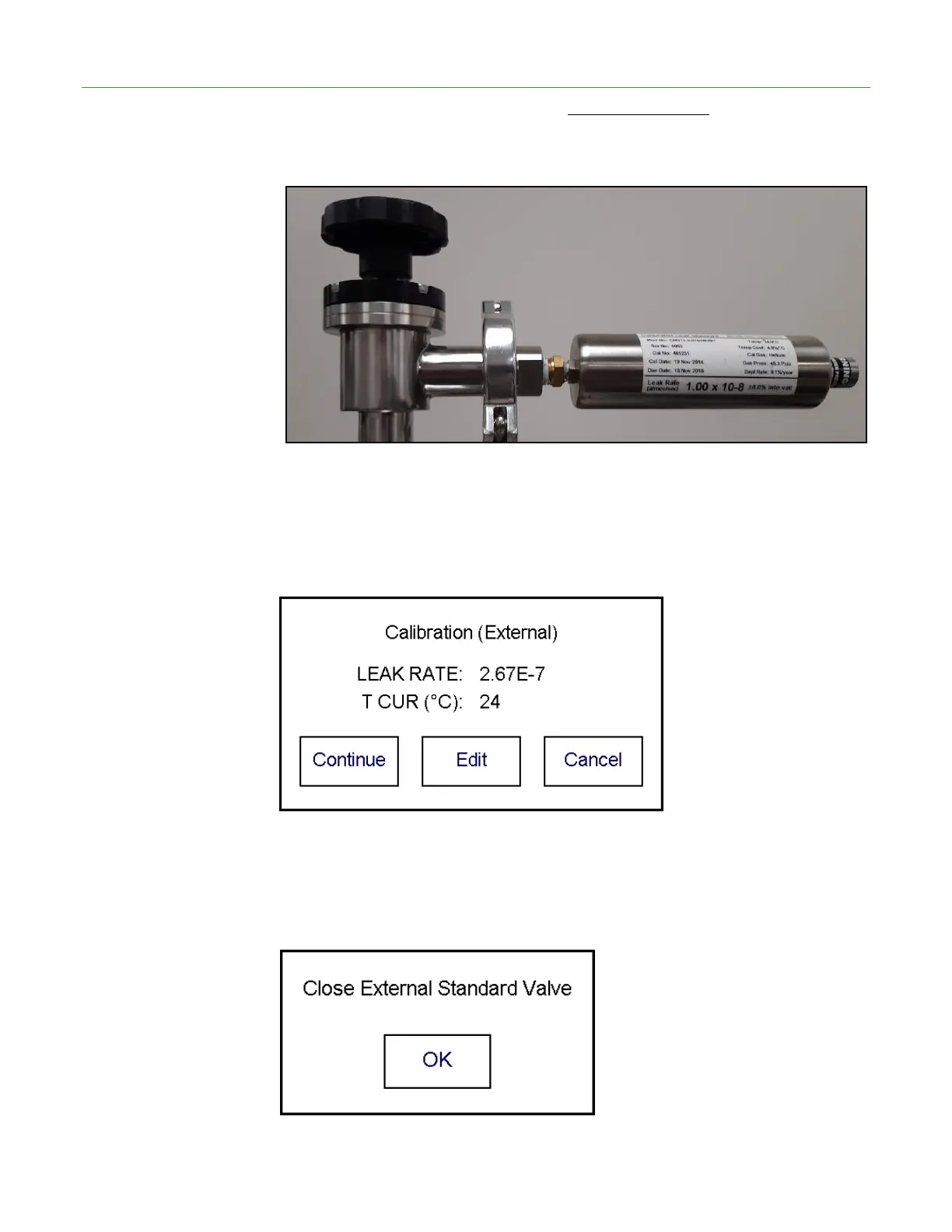

2. Place the calibrated leak standard, with integrated isolation valve, onto the KF-25
inlet test port with the calibrated valve open.
3. Press the Calibrate icon.
4. Verify the Calibrate option and press Start.
5. Verify External Calibrated leak setting configurations. Press Continue to start the
calibration or Edit to change the calibrated leak valve settings.
6. Confirm calibrated leak valve is open.
7. Calibration proceeds through peak find and peak measure.
8. Dialog prompts user to close calibrated leak valve. After valve is closed, press
Continue.
