6 OPERATION
LACO Technologies TITAN VERSA Operations and Maintenance Manual 79

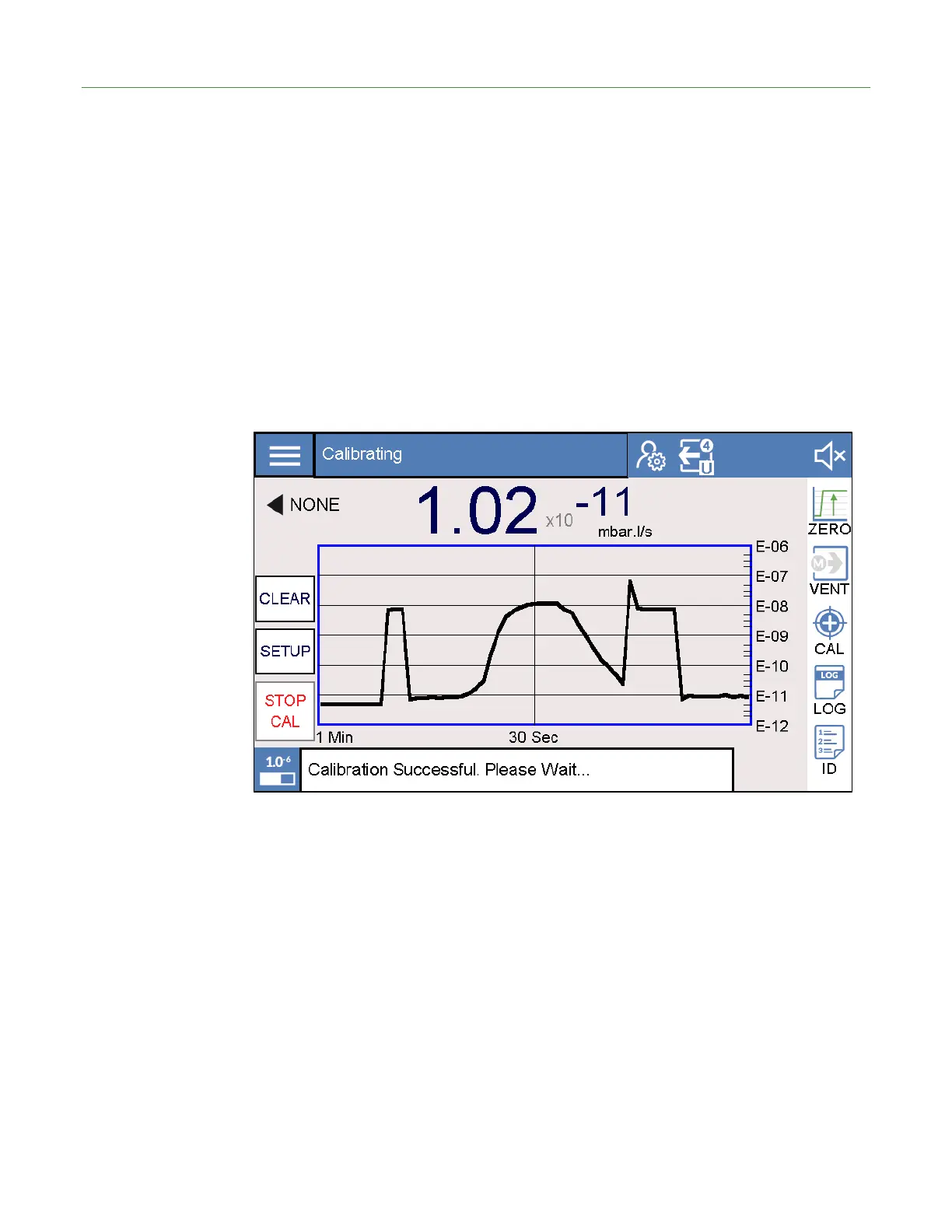

Sample Interval Select options of 0.5 seconds, one second, or two seconds.
Scaling Select Automatic or Manual. Automatic scaling adjusts the graph as the leak rate
changes.
Scaling Reference Select either Reject Limit or Current Value for the scaling reference. This setting only
applies to Automatic Scaling.
Low Decade Select the low decade range between -12 and -5.
Decade Range User can display from one to six decades in graph.
Overall Graph Range Select options of 1 minute, 2 minutes, 4 minutes, or 30 seconds.
Logarithmic Select to graph values to log scale; default graph logs in linear scale.
Show Grid Select to show grid on graph.
