LeeBoy 8515E - Engine and Fuel System Maintenance

5555
LeeBoy 8515E Conveyor Paver 5-17
Maintenance
7 - Radiator Cap
8 - Engine Fan / Fan Shield
9 - Air Filter
10 - Exhaust Pipe
11 - Alternator
12 - Engine Fan Belt
13 - Oil Separator
1
3
4
5
6
7
8
9
10
11
12
13
14
2

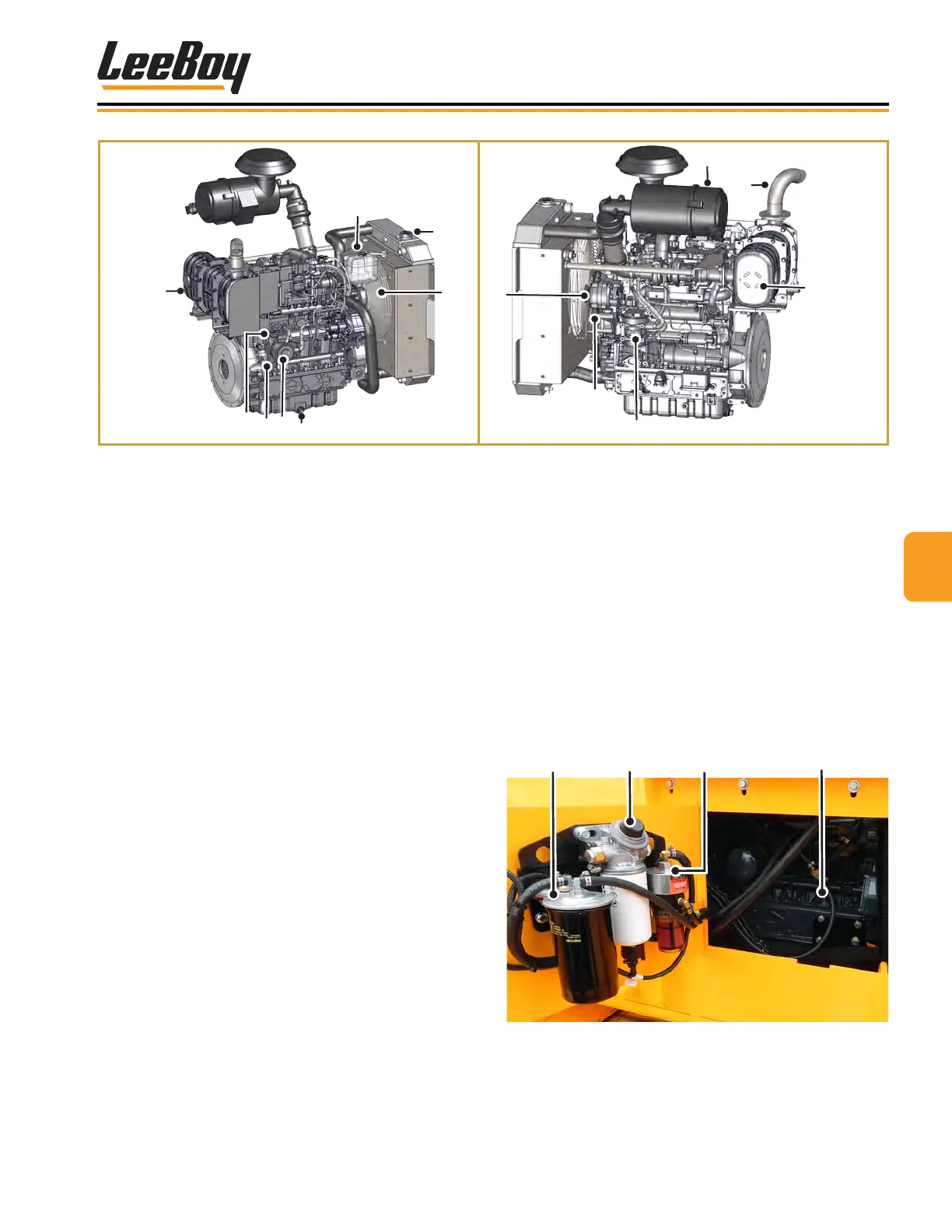

Figure 5-14. Engine and Related Components
1 - SCR (Selective Catalytic Reduction)
2 - Oil Cap
3 - Oil Dipstick
4 - Oil Filter
5 - Oil Drain Plug
6 - Coolant Fill Cap/Tank
ENGINE MAINTENANCE
The LeeBoy 8515E Conveyor Paver features the latest in
engine technology. Tier 4 engines comply with emission
requirements established by the U.S. Environmental
Protection Agency (EPA) to reduce diesel particulate
matter (DPM) and other toxins released into the air. As
part of the Clean Air Rules of 2004, the EPA requires
engine manufacturers to integrate controls into systems
that reduce exhaust emissions by 90 percent.
Advanced emission-control devices and low-sulfur fuel
requirements--only Ultra-Low Sulfur Diesel (ULSD) can
be used in these engines--combine with new after-
treatment methods such as Exhaust Gas Recirculation
(EGR) and Diesel Particulate Filters (DPF). These
general maintenance procedures are most often
required for the engine. Refer to the Engine Operator’s
Manual for more specic maintenance information and
procedures.
You can access the engine and other components via
the access panel in the hopper (Figure 5-15) or via
the operator platform. Some components can also be
reached from either side of the machine.
Fuel
Filter
Engine
Water
Separator
Fuel
Pump
Figure 5-15. Engine Access Panel
