SPECIFICATION CHARTS
The specications provided in this section include
screed weights, dimensions, performance, and torque
values for both metric and standard inch fastener.
8’
13.4’
10’
8’ 6”

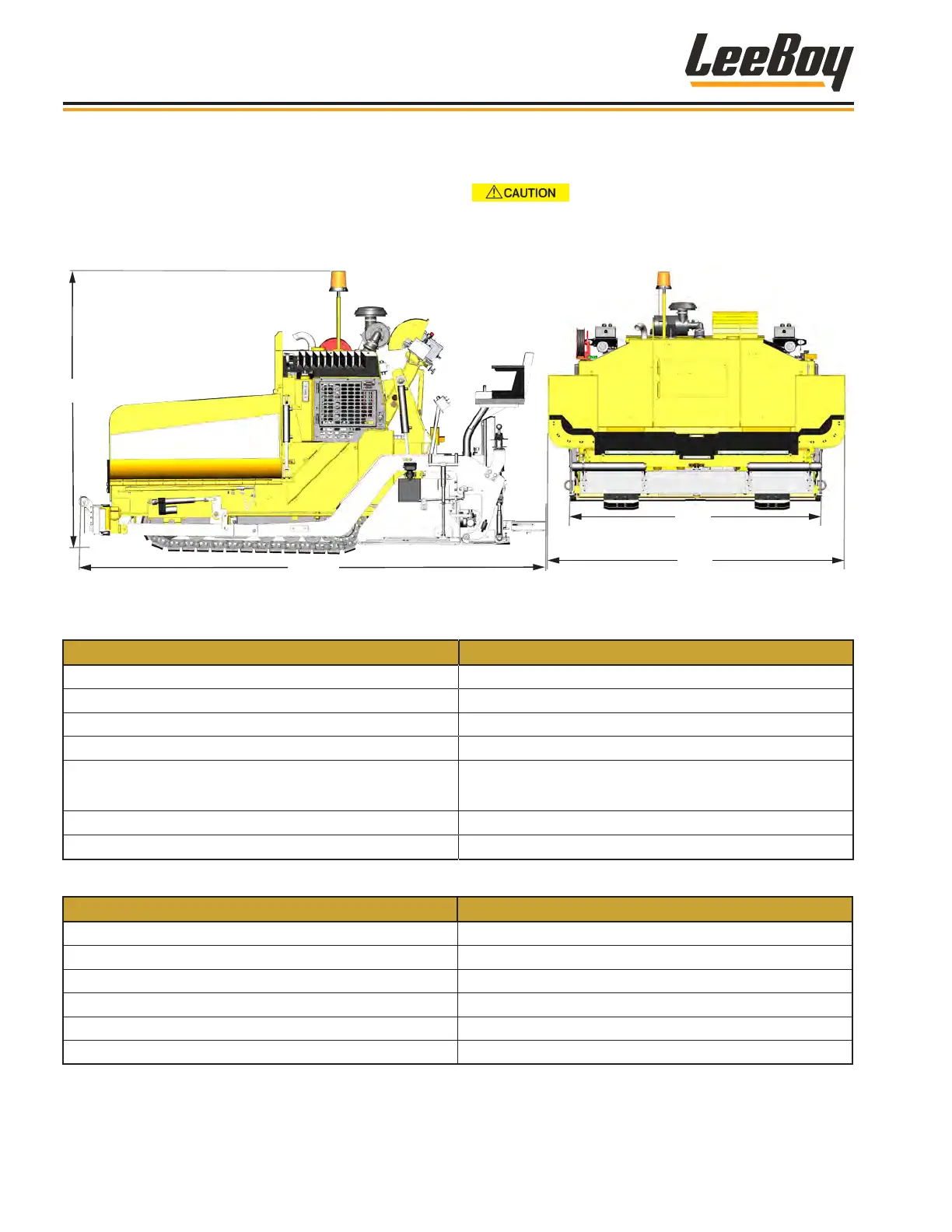

Table 2-1. Machine Dimensions
ITEM SPECIFICATION
Overall Length 13 ft 4 in
Overall Height 8 ft
Overall Width (Hopper Wings In) 8 ft 6 in
Overall Width (Hopper Wings Out) 10 ft
Overall Weight
With Standard Screed: 17,600 lbs
With HD Screed: 17,940 lbs
Paving Width 8 - 15 ft
Tunnel Area 5.5 sq ft
Table 2-2. Engine Specications
ITEM SPECIFICATION
Manufacturer and Model Kubota, V3800-CR-TE4B (Tier 4 Final)
Engine Type Vertical Liquid Cooled Diesel, 4-Cylinder
Bore, Stroke and Displacement 3.9 in; 4.72 in; 2.30 cu in
Power Rating 74 HP
Intake and Combustion Systems Turbo-Charged, Direct-Injection
Maximum Speed 2200 RPMs
Replace original equipment only with
components approved by your LeeBoy dealer.
LeeBoy 8515E Conveyor Paver
2-4
Information and Specications
