LeeBoy 8515E Conveyor Paver 5-15
Maintenance
Conveyor Switch AdjustmentConveyor Switch Adjustment
Small adjustments may be necessary to conveyor
switch for optimum conveyor performance. (Figure
5-12) There are two positions of the conveyor ap:
One upper, shutting the conveyor OFF; and one lower,
turning the conveyor ON.
• When correctly adjusted, the conveyor shuts off when
the paddle is approximately eight (8) inches from the
top of the conveyor switch to the bottom of conveyor
paddle; and turns on when the paddle drops to
approximately 12 inches.
12”
ON Position
Conveyor
Flap
Position
OFF Position
8”
Conveyor
Switch
Conveyor
Flap
Position

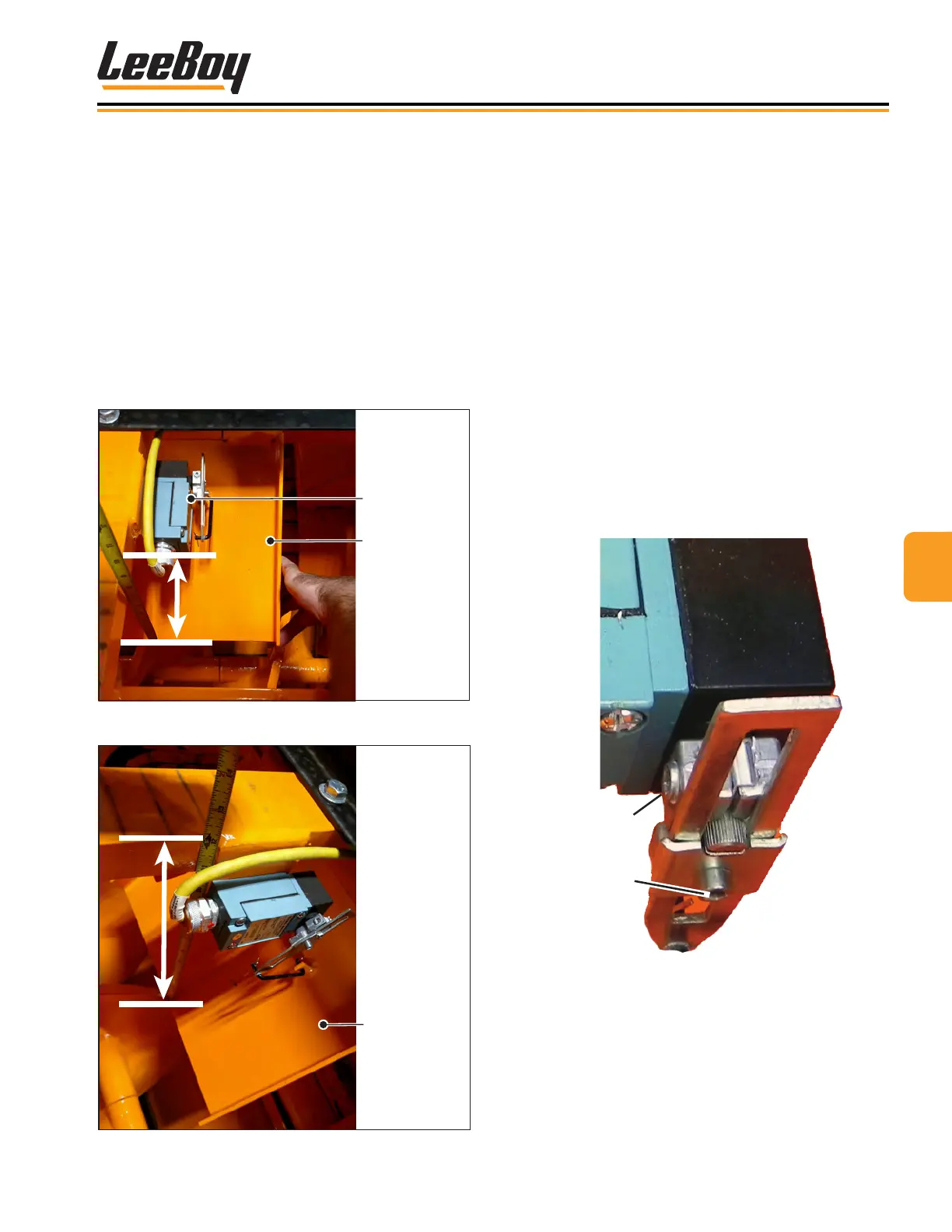

Figure 5-12. Adjustment Measurements
Check AdjustmentCheck Adjustment
1. Remove the upper walk board grate.
2. Raise the conveyor ap eight (8) inches from the
bottom of the channel.
3. Secure conveyor ap so it remains in this position.
4. Check the conveyor switch.
5. If the switch clicked OFF, no further adjustment is
required to the upper ap.
Adjust Conveyor SwitchesAdjust Conveyor Switches
If the conveyor switch did not click OFF, adjustment is
needed:
1. Remove the linkage attaching the actuator arm to
the eyelet on the ap pivot housing.
2. Loosen Setscrew A on the actuator arm. (Figure
5-13)
Setscrew A
Setscrew B
Figure 5-13. Actuator Arm - Setscrews A and B
