LeeBoy 8515E - Machine Overview

33
LeeBoy 8515E Conveyor Paver 3-5
Component Location
Machine Overview
1
2
3
4
5
6
7
8
9
10
11
13
12

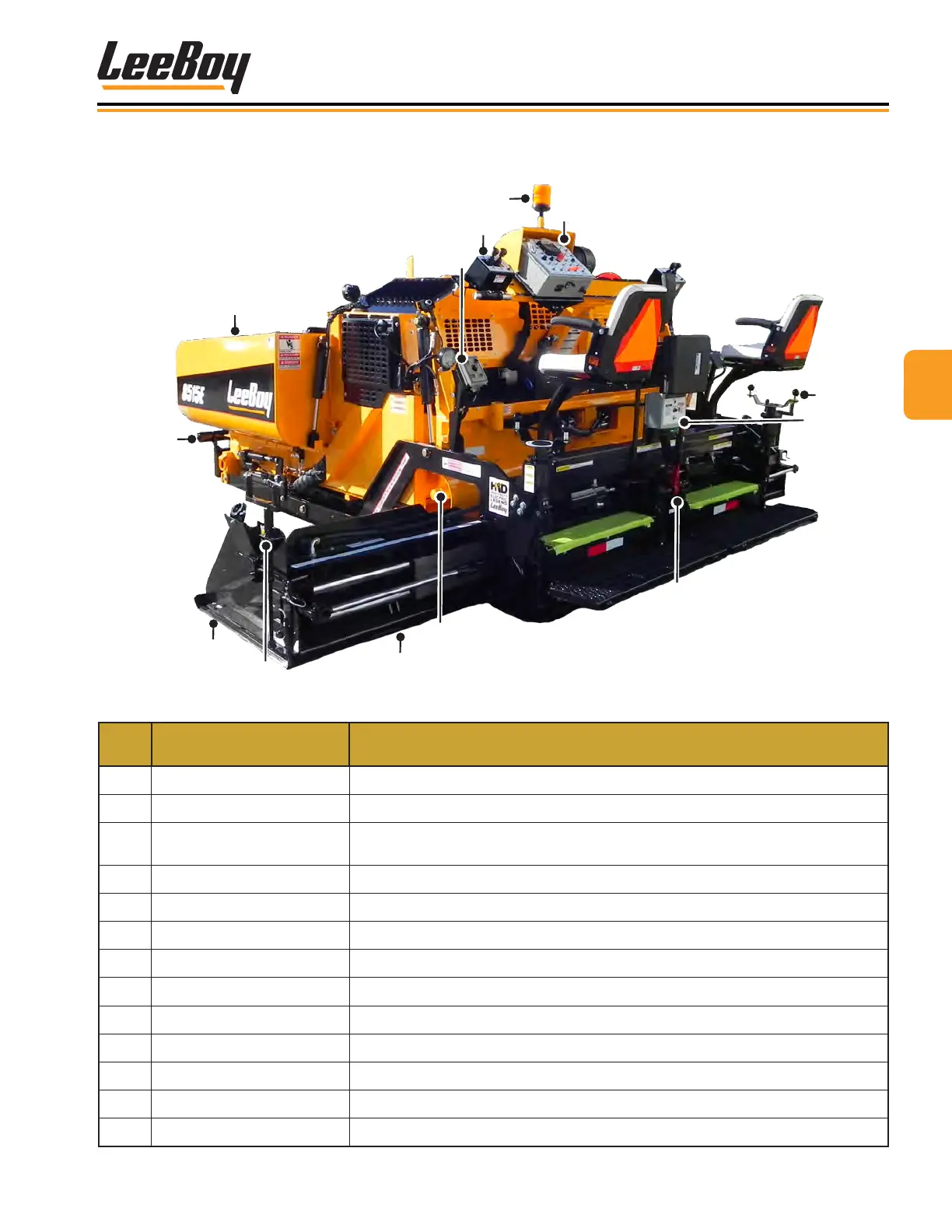

Figure 3-1. Machine Overview
ITEM
NO.
CONTROL NAME FUNCTION
1 Adjustable Roller Bar
Adjust height (manually) for roll-up to asphalt material truck.
2 Hopper
Hopper wings fold out to hold asphalt material.
3 Remote Screed Controls
Control box mounted on each side of screed with auger, screed extension,
slope and cut-off controls.
4 Joysticks
Controls travel direction and speed (on each side of machine).
5 Beacon Light
Revolving amber safety light to alert trafc and others at the work site.
6 Operator Control Panel
Main operator control panel. Slides to either side of operator platform.
7 Main Screed Depth Screw
Controls depth of the asphalt (located on each side).
8 Electric Screed Heat Box
Controls for heating the screed.
9 Crown and Valley Adjusts crown and valley while paving.
10 Auger Rotates to move material from the conveyors to the screed.
11 Screed Extension
Extends paving width from 8 to 15 feet.
12 Sonic Auger Sensor
Sensors automatically gauge and regulate material ow to screed extensions.
13 End Gate
Adjusts for a paving width to match joints and leave a clean edge.
