5-8 LeeBoy 8515E Conveyor Paver
Maintenance
Lubrication PointsLubrication Points

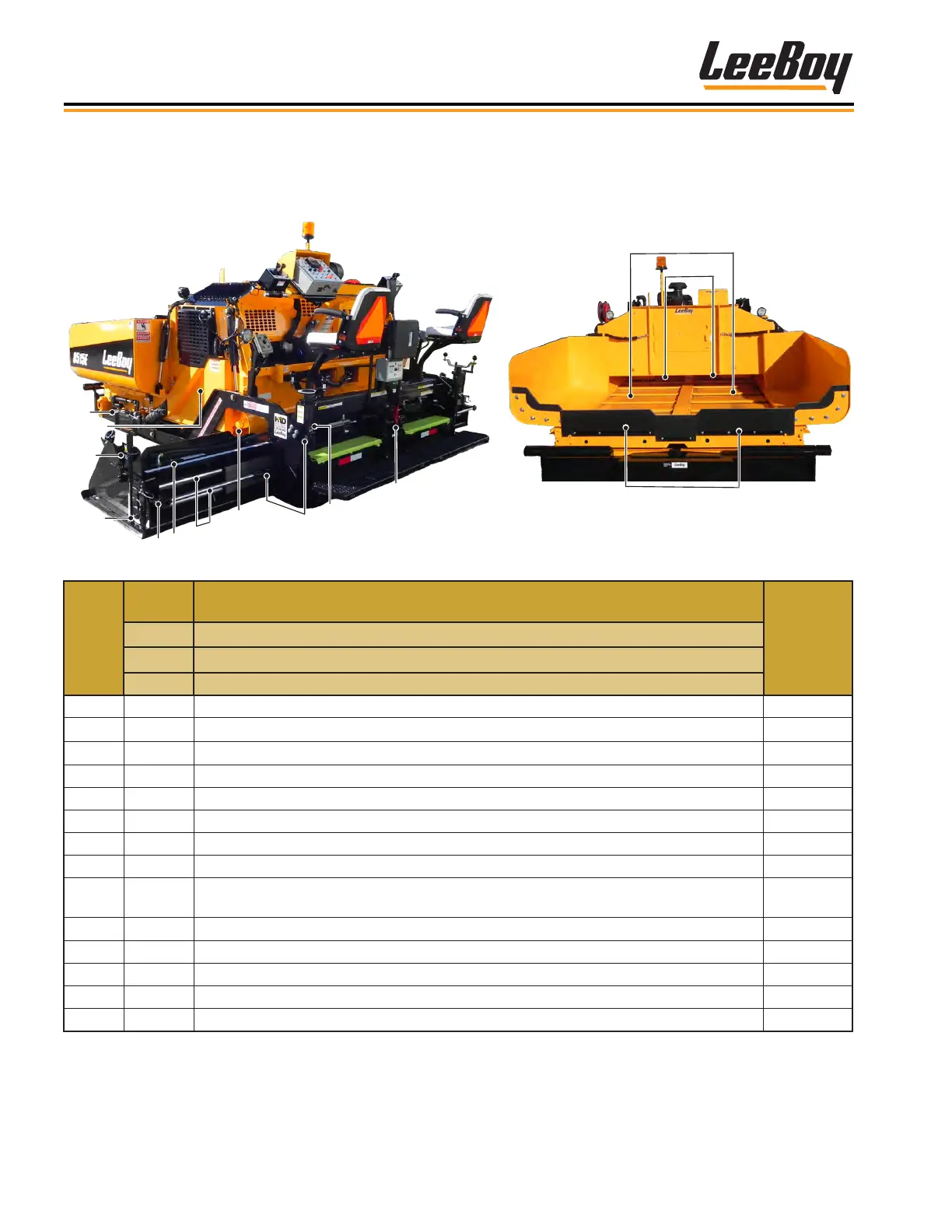

Proper lubrication is necessary to maintain the LeeBoy Model 8515E Conveyor Paver at top efciency. Refer to the
lubrication information below:
1
2
3
4
5
7
8
9
10
11
6
12
13
14
Table 5-1. Lubrication Points Schedule
ITEM
NO.
TYPE
LUBE
DESCRIPTION AND LOCATION
INTERVAL
A Grease With Shell Avania EP Grease 2 or Equivalent
B Spray with Release or Chain Lube Agent
C Spray with Anti-Seize Lubricant
1 B Grease tracks between track pads daily for efcient operation. Daily
2
A
Conveyor pivot (under conveyor deck) on front of screed (both sides). Monthly
3
A
Depth screw (both sides). Grease rst in locked position, unlock, and turn 180° to grease.
Weekly
4 A Screed pivot (both sides). Weekly
5 A Tilt screws (both sides). Weekly
6 A All screws and bearings on screed extensions (both sides). Weekly
7 C Screed extension slide bars (both sides). Weekly
8 B Auger bearings and end mount (both sides). Daily
9 A
Flange bearing and tting on ight screw and ange bearing on T-handle of extensions (both
sides).
Weekly
10 A
Main ight screws ball socket and nut (both sides). Weekly
11 B Screed crown on chain. Weekly
12 B Conveyor chains (one on each side of each conveyor). Daily
13 B Auger (and auger chains). Daily
14 B Spray all parts of paver that come into contact with asphalt. Daily
