LeeBoy 8515E Conveyor Paver 5-11
Maintenance
Plugs

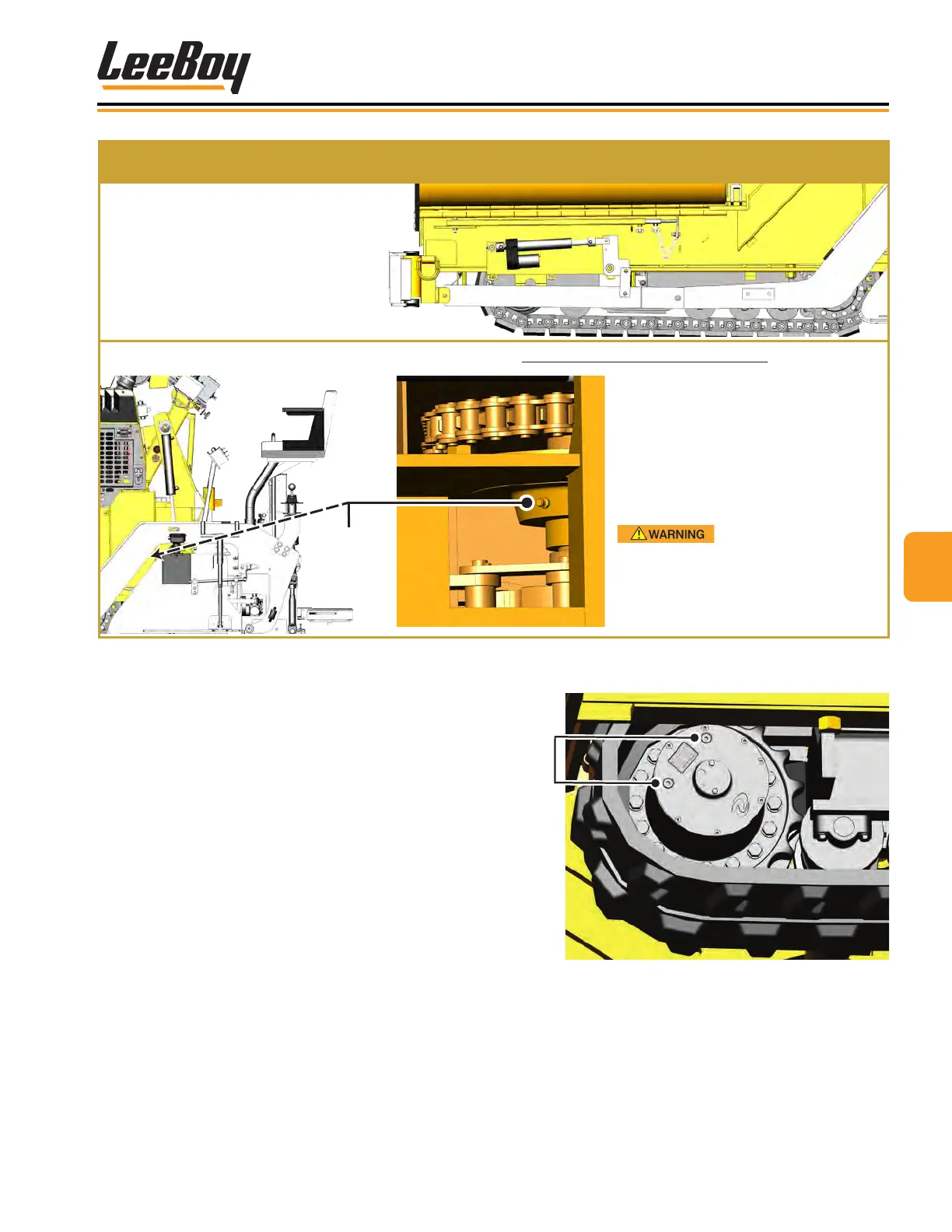

Figure 5-5. Torque Hub Plugs
Torque Hub LubricationTorque Hub Lubrication
1. Remove the plug in the 3 o’clock or 9 o’clock
position. (Figure 5-5)
2. If oil comes out, no oil is needed. Reinsert the plug
and tighten.
3. If oil does not come out, remove the top plug and ll
with SAE 90 WT gear oil until oil starts to appear at
the 3 o’clock plug.
4. Replace both plugs and repeat process on the
other torque hub.
Spray the tracks with release
agent monthly.
Lubricate the conveyor pivots on both sides (shown below) with Shell Avania EP Grease 2 or equivalent monthly.
Conveyor
Pivot
Extend the screed extensions
completely and lock securely.
Use a mechanic creeper or back the
paver up onto ramps to access the
conveyor pivot from the undercarriage.
Lock the screed
before greasing the conveyor pivot
to prevent movement that could
result in injury.
Monthly LubricationMonthly Lubrication
