LeeBoy 8515E Conveyor Paver 5-41
Maintenance
Under Auger Material Cut-OffsUnder Auger Material Cut-Offs
1. Remove roll pin from the cut-off hinge. (Figure
5-53)
2. Insert a 3/8” bolt in the end of the hinge to remove
the hinge pin (inside hinge). Cut-off will slide down.
3. Clean area around the cut-off hinge.
4. Realign cut-off hinge.
5. Grease and insert new hinge pin.
6. Reinsert roll pin into outer cut-off hinge.
7. Reconnect cylinder to cut-off.
Roll Pin
Hinge Pin
(Inside Hinge)

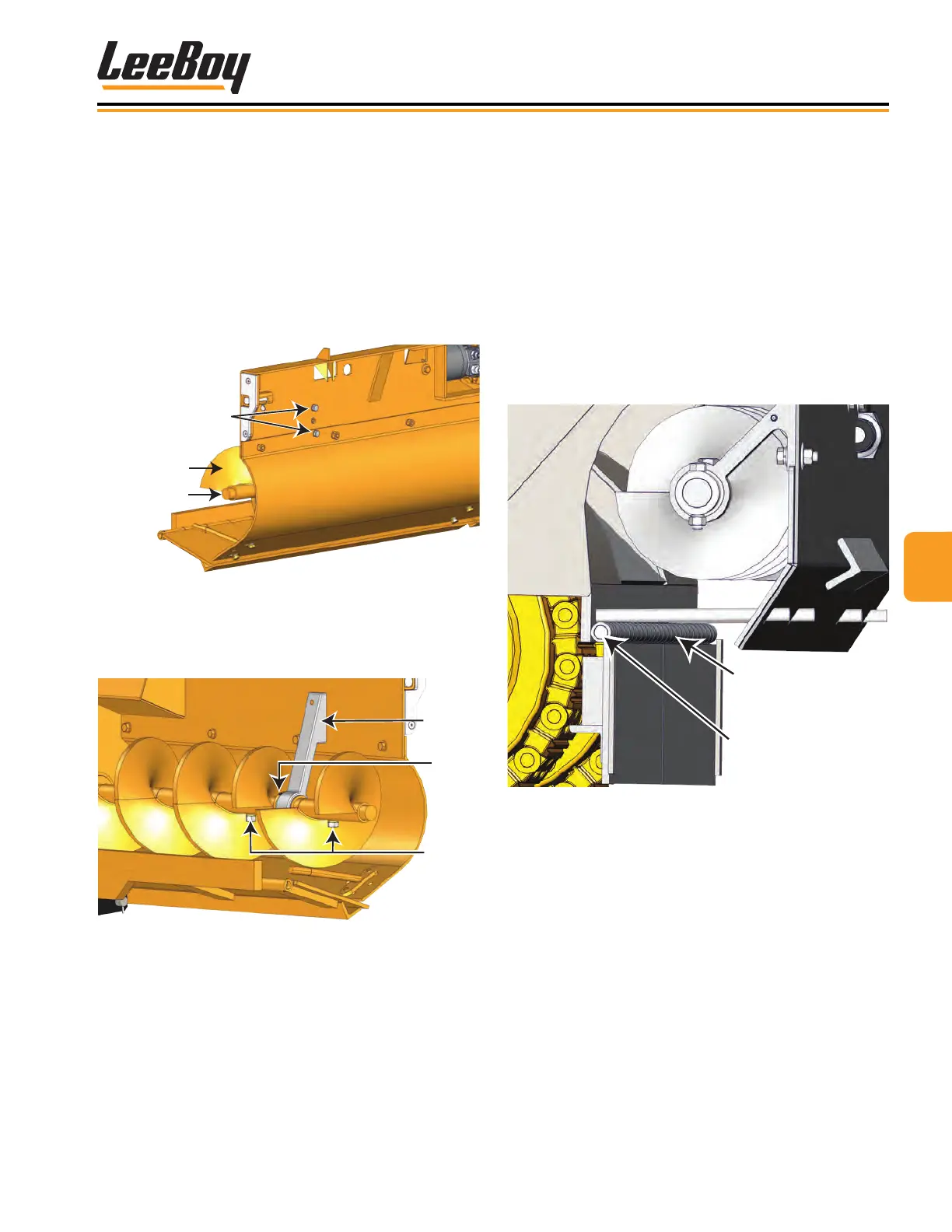

Figure 5-53. Under Auger Material Cut-Offs
Auger End MountsAuger End Mounts
1. Extend the screed extensions completely and
open the Under Auger Material Cutoffs. (You can
remove the rear auger cover if you like, but it isn’t
necessary.)
2. Remove the outermost auger section. (Figure
5-51)
3. Remove upper end mount bolts on the back side of
the auger cover.
Upper End
Mount Bolts
End Mount
Outer Auger
Figure 5-51. Upper End Mounts
4. Loosen the two set screws on the auger end mount
collar, then slide the end mount and collar off the
auger shaft. (Figure 5-52)
Bolts
Set
Screws
(2)
Collar
Figure 5-52. Upper End Mounts
5. Replace with new end mount, retighten set screws,
reinstall outer auger section and upper end mount
bolts (and rear cover if applicable).
