LeeBoy 8515E - Main Control Panel

3-6 LeeBoy 8515E Conveyor Paver
Component Location
Main Control Panel
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
21
22
23
14

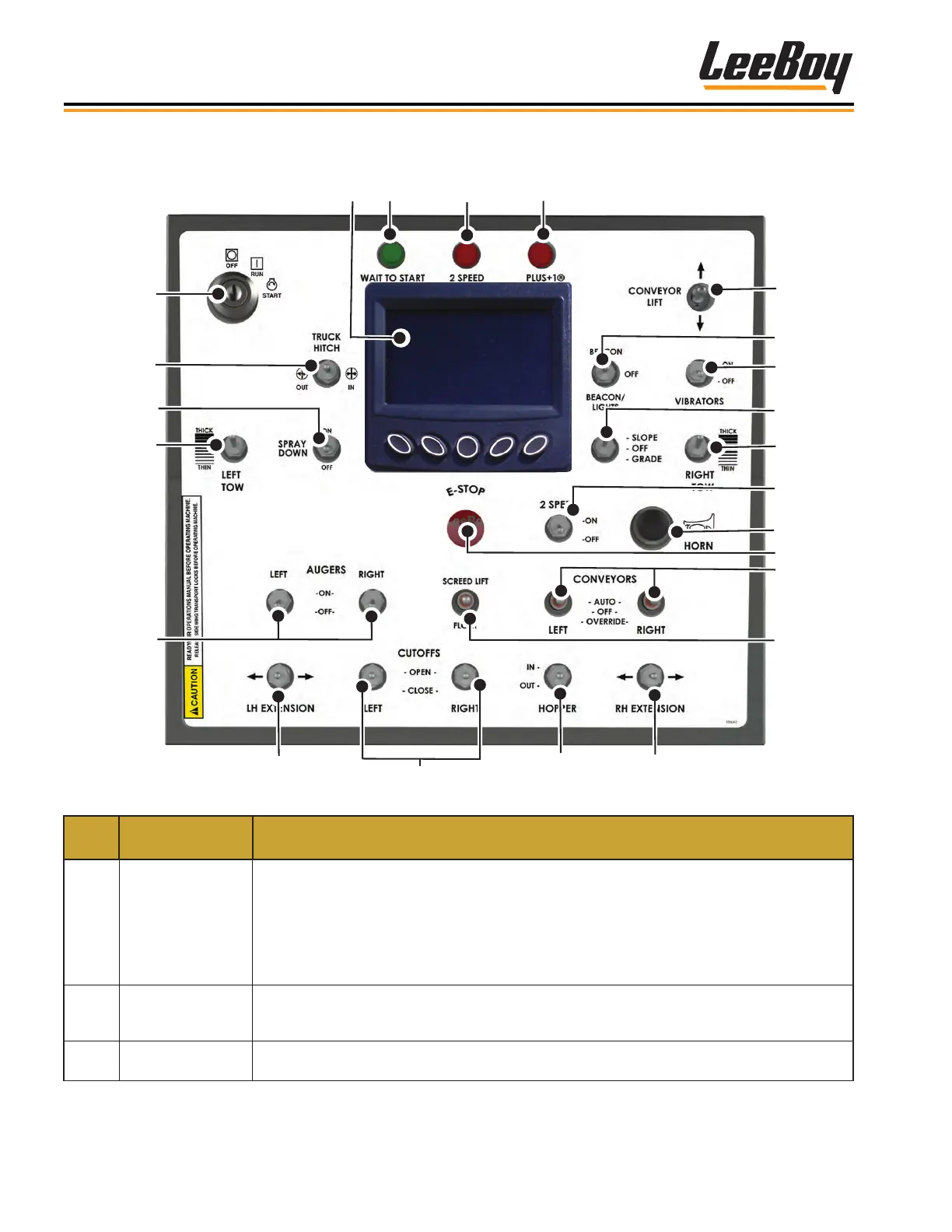

Figure 3-2. Operator Control Panel
ITEM
NO.
CONTROL
NAME
FUNCTION
1
Left and Right
Auger Switches
Turns the left and right augers ON and OFF. Center position is OFF. Use the auger
speed dials on the left or right remote screed control box to increase or decrease
auger speed.
NOTE: The auger switch on the remote screed control box must be set to the
AUTO position (automatic mode) if using the sonic auger sensor. (See
Page 4-24)
2
Left Tow Thicker/
Thinner Switch
Sets the thickness of the asphalt and controls the electric ight screws. Operator can select
either THICKER or THINNER as needed. The Grade Control switch must be set to GRADE on
the control panel to turn power on for this feature.
3 Spray Down Switch
Turns on the spray down system for spraying release agent to lubricate and prevent asphalt from
sticking to machine surfaces.
