LeeBoy 8515E - Change Air Filter

5555
LeeBoy 8515E Conveyor Paver 5-19
Maintenance
Change Air FilterChange Air Filter
Never operate the engine without an
air lter properly installed. Severe damage to the
machine will occur.
Cover
Clamp
Clamp

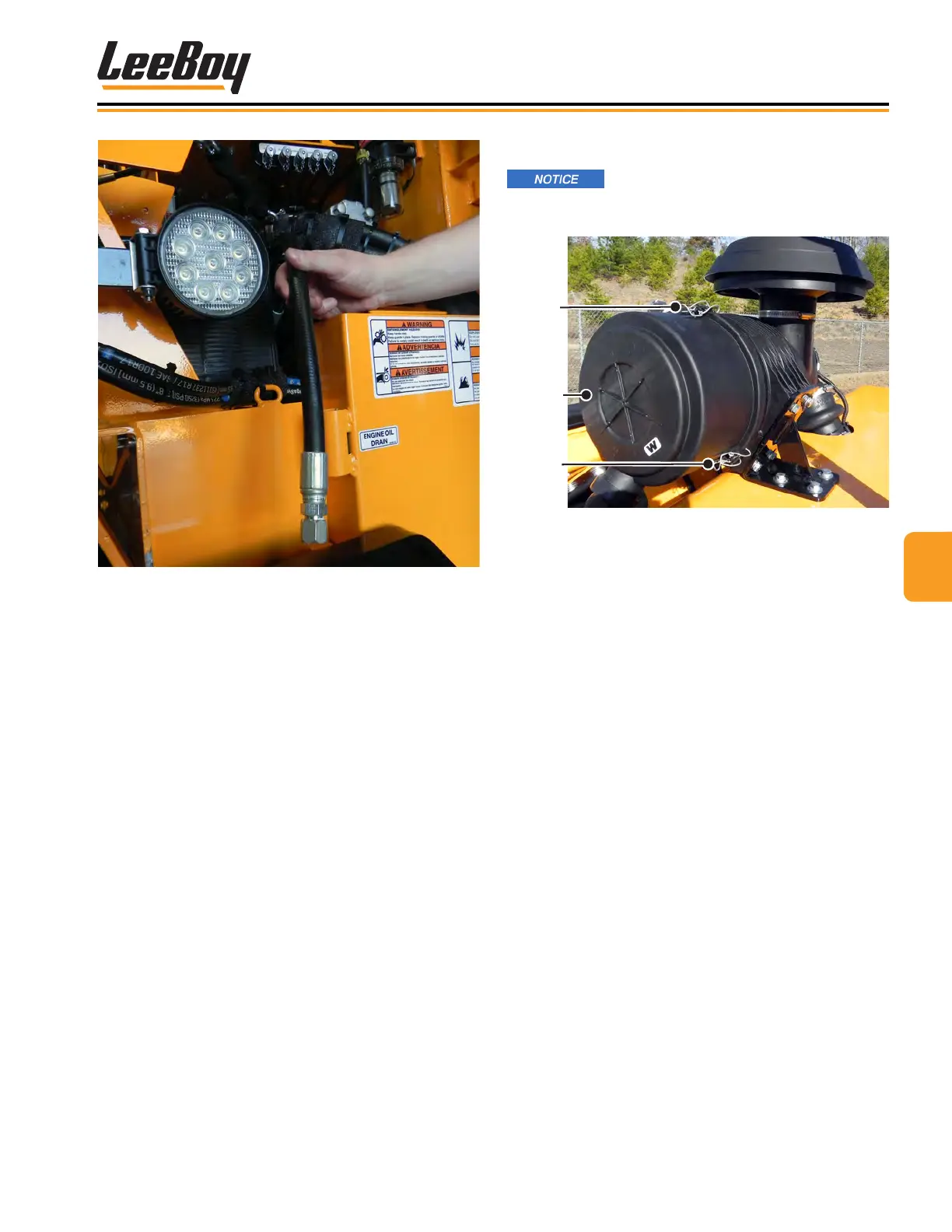

Figure 5-18. Air Filter Cover
To change the air lter elements:
1. Unclamp and remove air lter cover. (Figure 5-18)
2. Remove the primary and secondary air lter
elements. Discard.
3. Clean the inside of the air cleaner body with a clean
cloth.
4. Install new air lter elements inside the canister.
5. Reclamp cap onto the air lter cover.
6. Check clamps to ensure lter elements are tight and
lter elements are making proper contact.
7. Start engine. If engine does not run smoothly,
recheck lter element contact.
NOTE: The air lter elements should be replaced
every 100 service hours of normal paver
operation, but more often if the paver is
operated in severe conditions.
Figure 5-17. Engine Oil Drain Hose
6. Wipe the area around the oil lter and its mounting
base with a clean cloth. (Figure 5-16)
7. Place a suitable container under the lter element.
8. Use a lter removal wrench to remove the lter,
turning counterclockwise.
9. Wipe inside the oil lter head using a clean, lint-free
cloth and rub a little oil onto the rubber gasket area
before installing the new lter element.
10. Fill new lter with oil and reinstall, then ll the engine
with 9.5 quarts of oil at the oil ll cap.
11. Check oil level using the oil dipstick.
12. Dispose of used oil in accordance with local and
federal environmental laws.
