4-10 LeeBoy 8515E Conveyor Paver
Operation
Status IconsStatus Icons
The Status Icons (Table 4-3) are color-coded and light
up when communicating to the operator. Pay close
attention to any Status Icon and its color.
Table 4-3. Status Icons
Status Icon Description
Check Engine — When this lamp is
illuminated, a fault exists within the con-
trol system. The engine may continue
to operate, however, it is unable to
perform DPF cleaning either automati-
cally or manually.
Take action
immediately to correct the fault.
Parking Brake Switch — The park icon
displays when the parking brake is
applied.
NOTE: To perform a Parked REGEN,
the “P” and “N” lamps must be
illuminated.
Transmission Neutral — The neutral
icon displays when the transmission is
in neutral.
NOTE: To perform a Parked REGEN,
the “P” and “N” lamps must be
illuminated.
Engine Exhaust High Temperature
Lamp — This lamp illuminates during
the REGEN cycle to warn of high
exhaust temperatures. This lamp will
turn off when normal operating temper-
atures are reached after the REGEN
cycle.
Be sure engine
exhaust is away from any potentially
combustible materials when this is
illuminated.

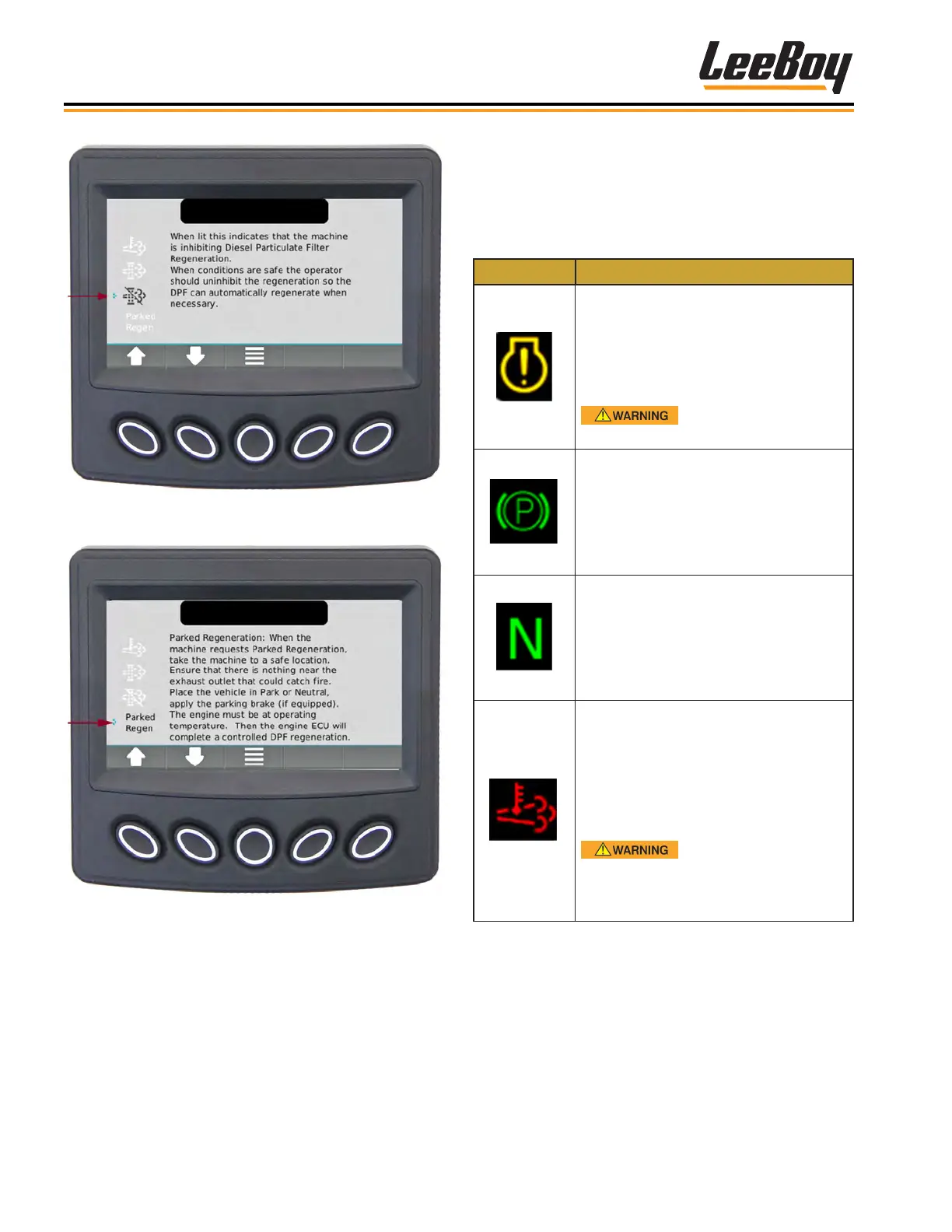

Figure 4-15. Machine Inhibiting DPF Regeneration
Screen
Figure 4-16. Parked Regeneration Overview Screen
