Screed Extension VibrationScreed Extension Vibration
Screed vibration helps compact material. If equipped
with this option, use the Vibrators switch on the main
control panel to turn vibration on and off.
Automatic Temperature ControlAutomatic Temperature Control
Automatic temperature control (ATC) for heating the
screed is an option that offers additional convenience
for operators, automatically turning the heating ele-
ments on and off to maintain desired screed tempera-
ture. The ATC control is on the side of the electric heat
box. (Figure 4-78)
It is only available with the Legend HD screed option.
The ATC unit is located inside the screed heat control
box.
The green numbers that illuminate on the controller
is the set point temperature. Use the UP and DOWN
arrows to increase or decrease the set point tempera-
ture. The screed temperature appears in red numbers
above the set point temperature. (Figure 4-79)
Increase
Heat
Decrease
Heat
Temperature
Set Point
Temperature
NOTE: DO NOT push other buttons as they
are for service technician access only.

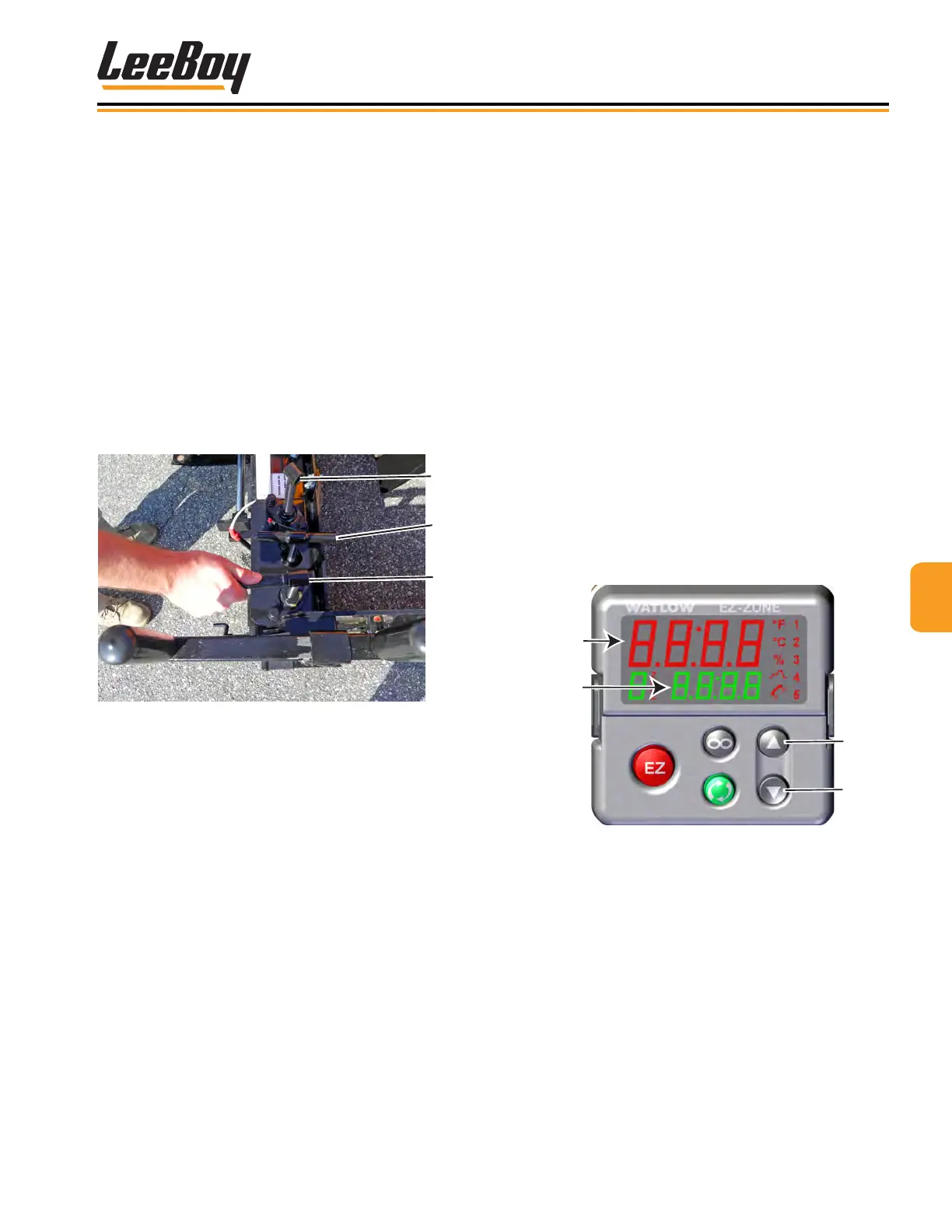

Figure 4-78. Automatic Temperature Controls
Start with a set point temperature of 200° - 250° F. The
screed runs warmer than the set point temperature due
to heat soak, which is normal, so it’s better to start with
cooler a temperature set point. The displayed tempera-
ture (in red) must fall 25 degrees below the set point
before the heating elements turn on again.
One-Foot Screed ExtensionOne-Foot Screed Extension
The 1-foot screed extension is an option only available
on the HD815 (Heavy Duty) screed option. The exten-
sion attaches to the main screed extensions, extending
paving width from 7 - 9 feet.
To attach the 1-foot extension:
1. Extend both main screed extensions.
2. Remove both endgates.
3. Install each 1-foot extension on correct side.
4. When both are installed, set wearplates at with the
main extension using the vertical lift adjusters and
AOA adjuster. (Figure 4-77)
5. Reinstall endgate.
AOA
Adjuster
Vertical
Lift
Vertical
Lift
Figure 4-77. One-Foot Screed Extension
