LeeBoy 8515E Conveyor Paver 3-9
Component Location
Remote Screed ControlsRemote Screed Controls
The 9-function remote screed extension control boxes
are mounted on each side of the paver for screed
operator convenience (left control box shown).
1
2
3
4
5
6
7
8
9

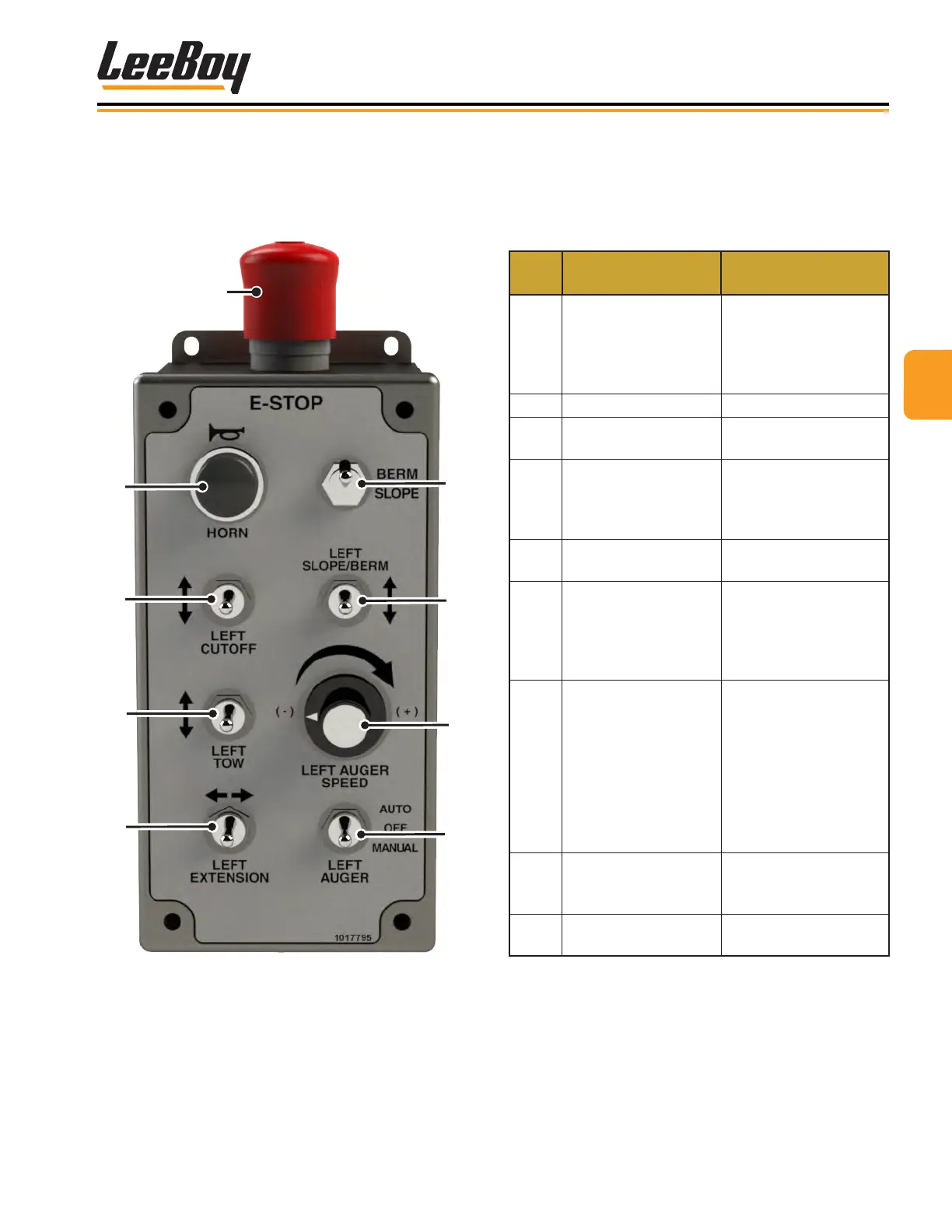

Figure 3-4. Screed Control Box
(Left Control Box Shown)
ITEM
NO.
CONTROL NAME FUNCTION
1
Emergency Stop
(E-Stop) Button
Immediately stops the
paver engine and all
electronic functions.
Turn clockwise to
release E-Stop button.
2 Horn Sounds horn.
3
Under Auger Material
Cut-Offs
Opens and closes Under
Auger Material Cut-Offs.
4 Tow Switch
Sets the thickness
of the asphalt and
controls the electric
ight screws.
5 Screed Extension
Extends and retracts
screed extension.
6 Berm/Slope
Selects either SLOPE
or BERM function,
if equipped with
the optional berm
attachment.
7 Slope/Berm
Raises and lowers
the asphalt slope if
the SLOPE switch
(#6) is selected.
Raises and lowers
the berm attachment
if the BERM switch is
selected, if equipped
with this option.
8 Auger Speed Dial
Controls auger speed
in AUTO or MANUAL
mode.
9 Auger Switch
Turns auger on and
off.
