LeeBoy 8515E Conveyor Paver 5-5
Maintenance
3. Grasp top of the side wing with one hand and the
handle with the other, and carefully pull out ve to
six inches, then pull bottom handle out until the side
wing folds out from the bottom hinge. (Figure 5-3)
Repeat for the other side.
Figure 5-3. Fold Out Side Wings
4. Raise conveyor by pushing the Conveyor Raise/
Lower switch to the RAISE position and hold until
conveyor is fully raised. Immediately after raising the
hopper, place the safety prop in position. (Figure
5-5)
Figure 5-4. Safety Prop in Position
Crush Hazard! Safety prop must be
placed in position. Use extreme care when working
under conveyors. Clear the area of untrained
personnel.
RAISING AND LOWERING
CONVEYOR
The conveyor bed can be hydraulically lifted for easy
access to the undercarriage and tracks for cleaning,
maintenance and adjustments. (Figure 5-1)

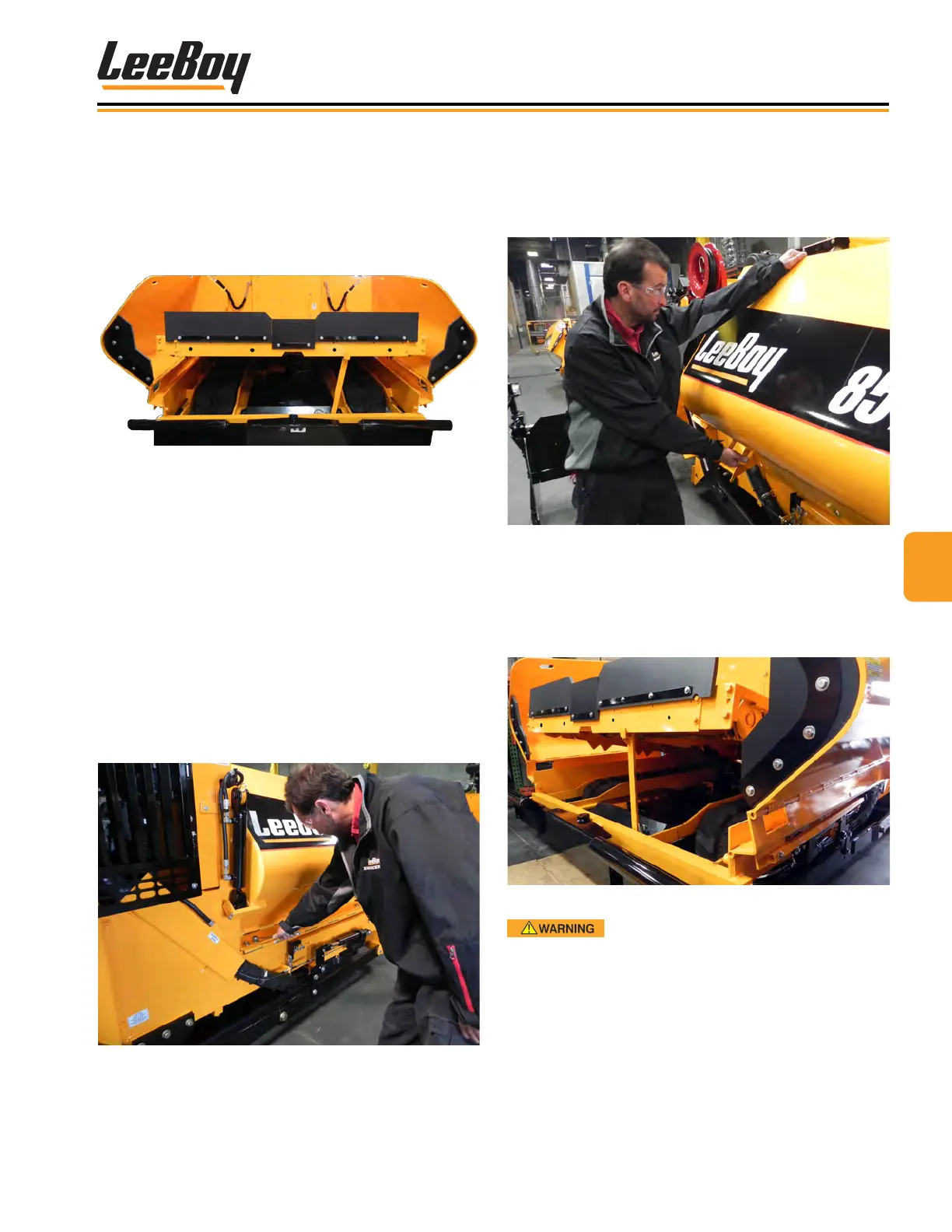

Figure 5-1. Hydraulic Conveyor Bed in the Raised
Position
NOTE: Engine must be running to raise the hydraulic
conveyor bed, but can be turned off while
unbolting the side wings.
Use the following procedures to raise and lower the
conveyor.
1. Retract the side wings by pushing the Side Wings
In/Out switch to the IN position and holding until the
wings are completly retracted.
2. Remove the bolts on the upper side wing hinges
(ve bolts on each hopper wing) using the wrench
provided with your machine. (Figure 5-2)
Figure 5-2. Remove Side Wing Bolts
