LeeBoy 8608 - Check Engine Lubrication Oil

Maintenance
LeeBoy 8608 Commercial Paver5-16
1 - DEF (Diesel Exhaust Fluid) Tank
2 - ACU (Aftertreatment Control Unit)
3 - SCR (Selective Catalytic Reduction
4 - Exhaust Pipe
5 - Engine Oil Filter Cap (2 Locations)
6 - Radiator Cap
7 - Radiator
8 - Engine Oil Filter
9 - Engine Oil Dipstick
10 - Cooling Fan and Safety Shield
11 - Air Filter
12 - Fan Belt
13 - Engine Oil Drain Plug
14 - Alternator
15 - Oil Separator
16 - Generator
17 - Battery Master Switch
Check Engine Lubrication OilCheck Engine Lubrication Oil
The engine lubrication oil must be kept at a level above
the ADD mark, but not above the FULL mark, on the
engine oil dipstick.
DO NOT check the oil while the engine
is running. Hot oil can spew and cause serious
personal injury.
Engine oil should be API classication CJ-4. Change the
type of oil according to the ambient temperature:
Table 5-3. Ambient Temperature Oil Chart
Temperature Engine Oil
Above 77°F
SAE 10W-30
SAE 15W-40
SAE 30
14°F to 77°F
SAE 10W-30
SAE 15W-40
Below 14°F SAE 10W-30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

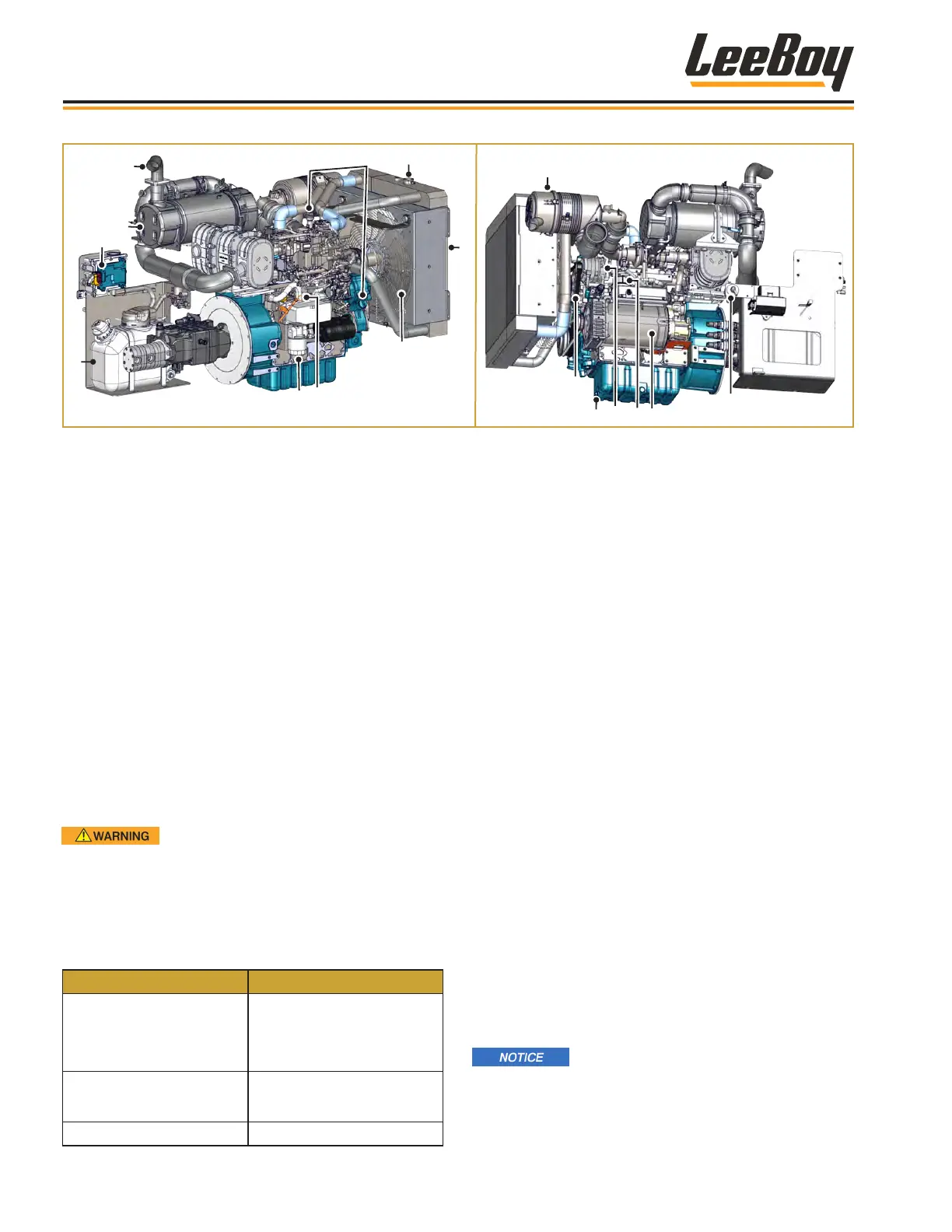

Figure 5-9. Engine and Related Components
To check the engine lubrication oil level:
1. Park the machine on a level surface and turn off the
engine.
2. Wait ve minutes to allow the oil to return to the oil
pan so you can obtain an accurate measurement of
the engine oil level.
3. Raise the engine hood. (Page 5-6)
4. Clean the area around the engine oil dipstick before
removing it from the engine. (Figure 5-10)
5. Remove the dipstick from the engine and checking
the oil level. The oil level should be above the
ADD mark--but not above the FULL mark--on the
dipstick.
6. Add oil if needed.
DO NOT overll. Oil can drain through
the air intake system if overlled and cause oil leaks
from breather piping.
