STEERING AND SPEED
CONTROL BOX
1
3
2

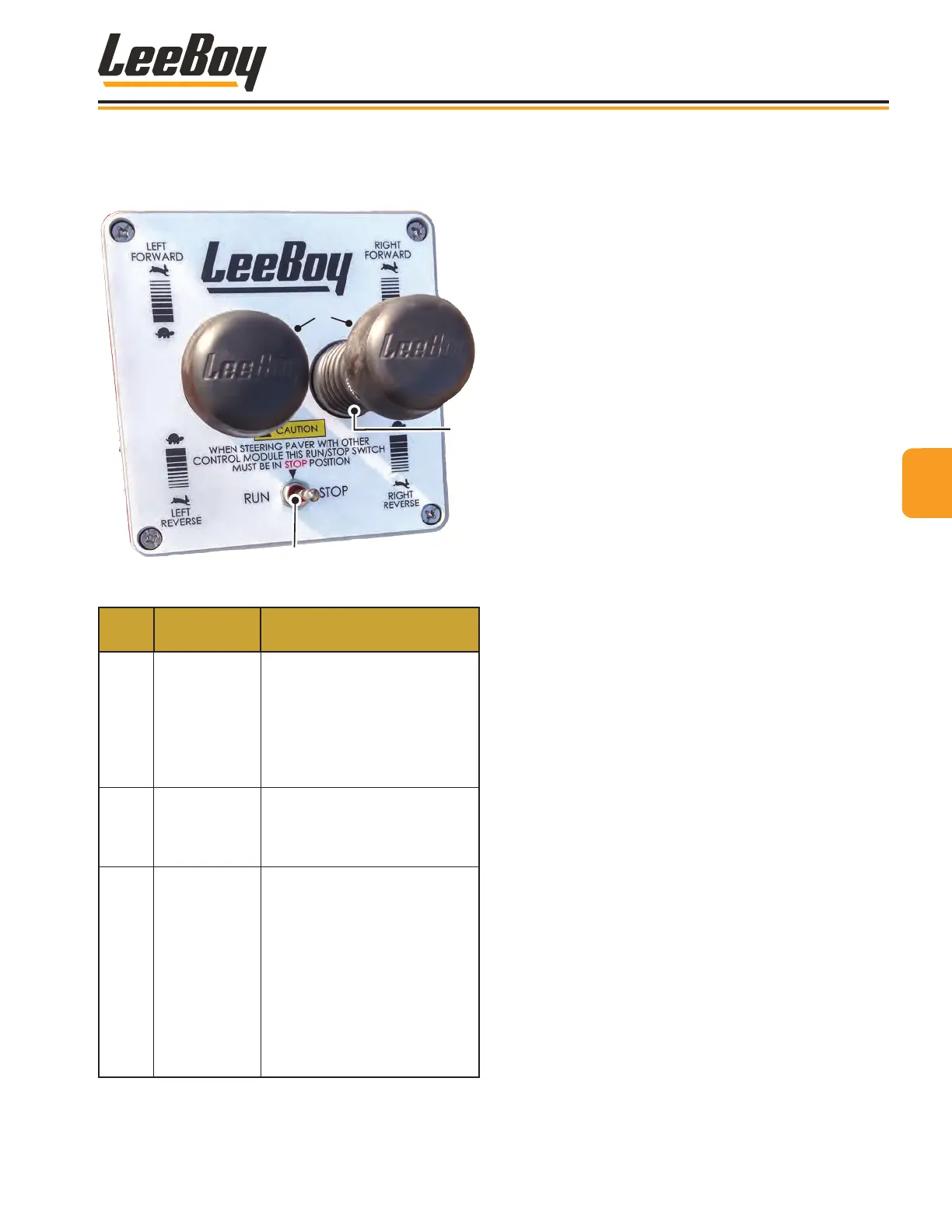

Figure 3-5. Steering and Speed Control Box
ITEM
NO.
CONTROL
NAME
FUNCTION
1
Left and Right
Steering
Joysticks
Joystick control speed and
direction forward or reverse.
The farther pushed in either
direction, the faster the speed.
Pull up on the locking collar
to move joysticks forward or
reverse.
2
Joystick
Neutral Lock
Collar
Locks the Forward/Reverse
joystick in neutral. Lift up on
the locking collar to move
joysticks forward or reverse.
3
Run/Stop
Switch
Controls stopping and
activating/deactivating
operator control station. When
set to STOP, control station
is deactivated, parking brake
applied, and machine will
not move. When set to RUN,
control station is activated,
parking brake is released, and
machine resumes previously
set speed.
33
Component Location
LeeBoy 8608 Commercial Paver 3-11
