LeeBoy 8608 Commercial Paver 5-27
AlternatorAlternator
The alternator supplies electrical power to electronic
controls and charges the battery. Its built-in regulator
controls voltage output. (Figure 5-23)

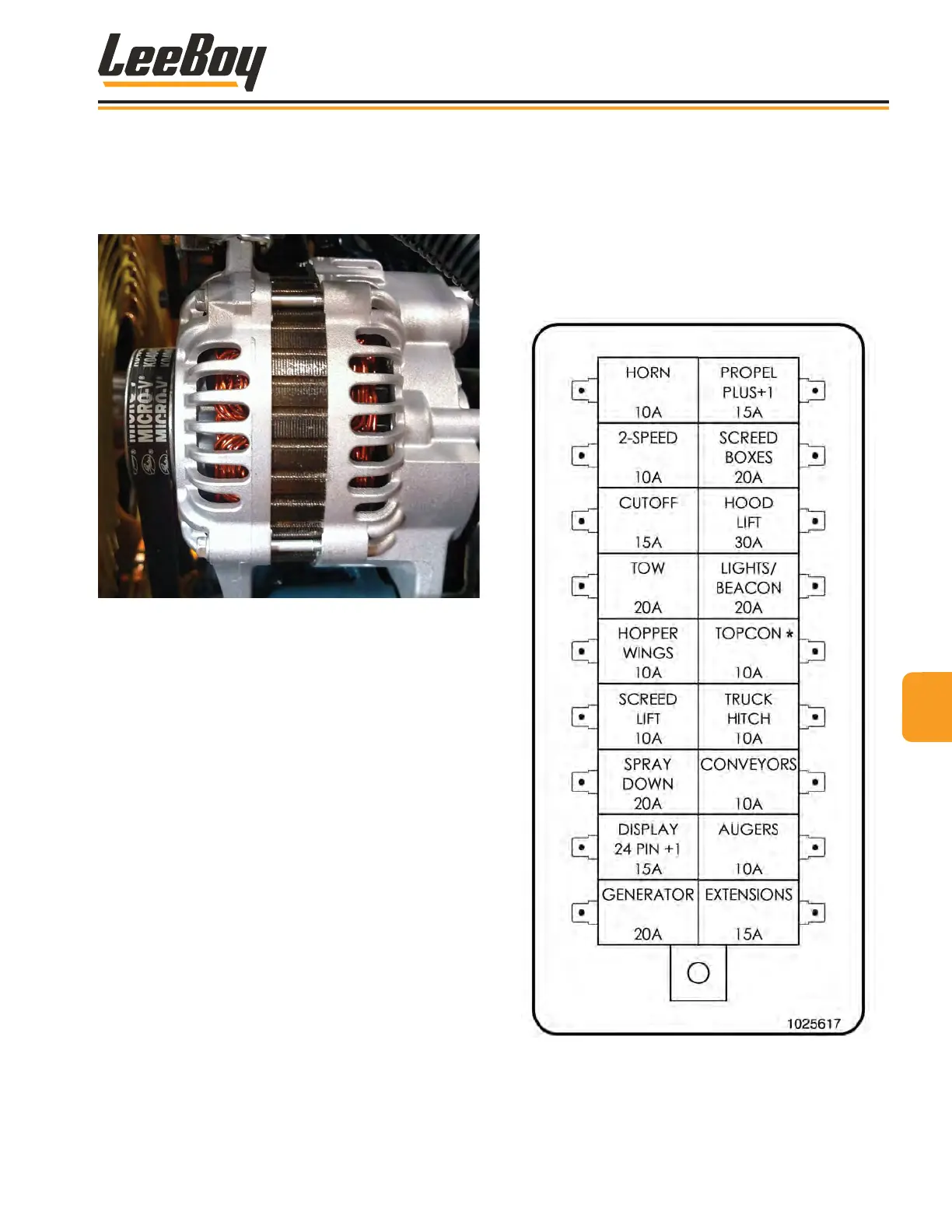

Figure 5-23. Alternator
Use the following precautions to prevent damage to the
alternator or regulator:
• Never polarize the alternator.
• Never ground any alternator terminals or circuits.
• Always disconnect the battery before disconnecting
or connecting the alternator.
• Never disconnect the alternator while machine is
operating.
• Ensure wiring is properly connected before
connecting the battery.
• Always connect a booster battery in the proper
polarity: Negative (-) to negative (-) and positive (+) to
positive (+).
Fuse PanelFuse Panel
The electrical system is protected from overload
damage by fuses. If an electrical component fails to
operate, check the fuse box panel rst to ensure that a
fuse has not “blown.” A blown fuse is an indication that
there is an overload that needs to be corrected.
The fuse panel is located inside the junction box for
convenient access. (Figure 5-24)
Figure 5-24. Fuse Panel
