Maintenance
LeeBoy 8608 Commercial Paver5-42
Quick Change AugersQuick Change Augers
The dual augers are hardened, 3/4-inch thick, 12-inch
round, HRC 55-60 augers that will last for years. The
modular auger assembly, in one-foot sections, allows for
a simple quick change of the assembly using only a few
standard tools should an auger get damaged.
NOTE: Because each auger is very heavy, the quick
change procedure requires two people to
lift the used and new auger during removal
and replacement.
To replace the auger(s):
1. Park the paver on a level surface.
2. Ensure the Under Auger Material Cut-Offs are
closed.
3. Extend both screed extensions completely as
you will be reaching between the paver frame and
screed. Shut off the engine.
4. Remove the operator seat on the side for auger
replacement by removing the cotter pin and then the
clevis pin from the seat mount. (Figure 5-48)

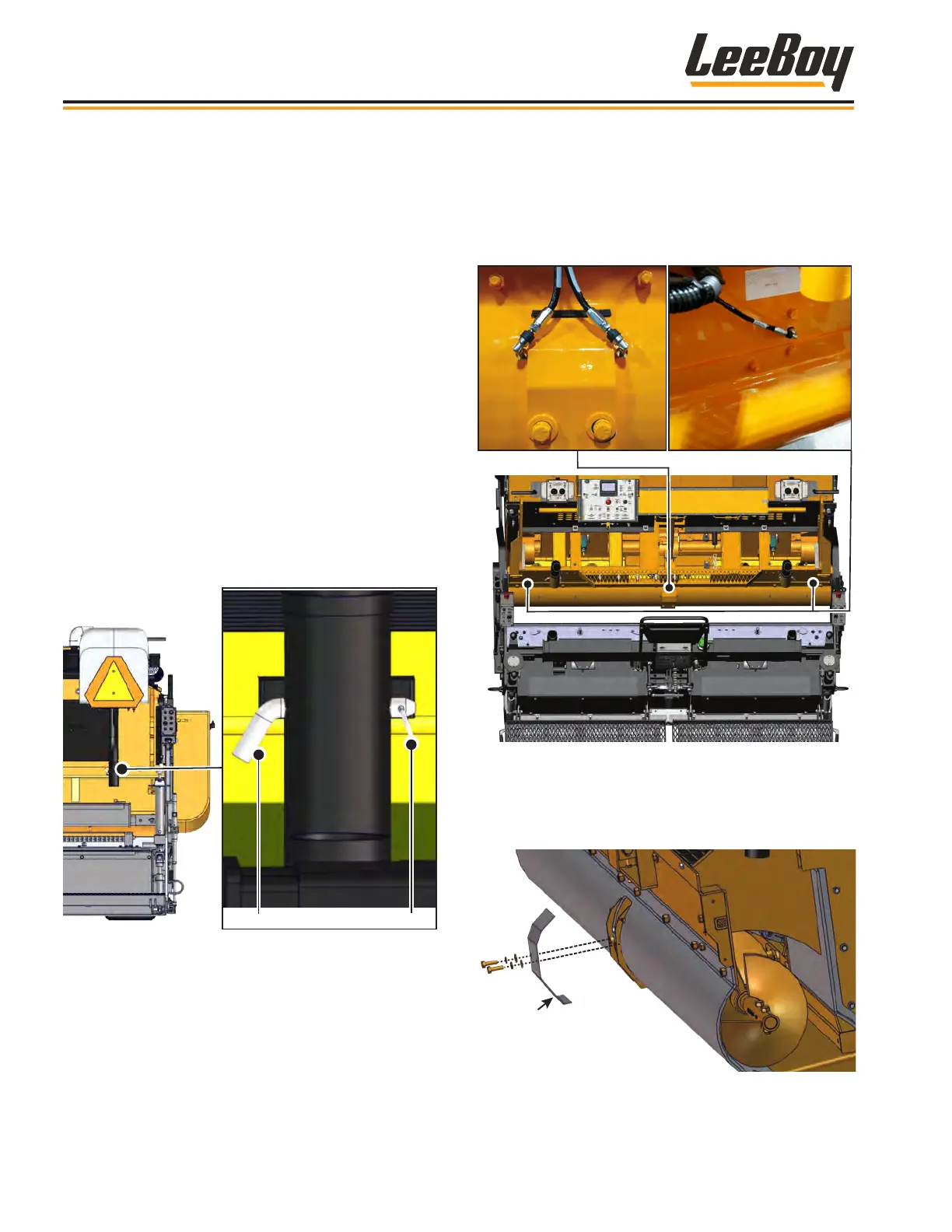

Cotter PinClevis Pin
Figure 5-48. Remove Operator Seat
5. Remove all bolts holding the operator station deck
grate and lift it off the platform.
6. Disconnect (and cap) the lubrication hoses from
the grease points on each side of the lower auger
cover, and grease hose on the side for auger
replacement. (Figure 5-49)
Auger Cover
Figure 5-49. Lubrication Hoses at Auger Chain
Cover
7. Remove the bolts holding the lower auger cover in
place, then remove cover. (Figure 5560)
Lower
Auger
Cover
Figure 5-50. Remove Lower Auger Cover
