3. Load the paver screed-end rst as shown in Figure
4-73 on the previous page. Set throttle at half the
operating RPMs.
4. Set steering control lever so paver moves very
slowly onto the ramp.
5. Using the steering control joysticks, SLOWLY guide
paver up the ramp.
6. Position paver in center of trailer.
7. Lower the screed.
8. Shut down the engine.
9. Secure paver to transport using the following tie-
down procedures.

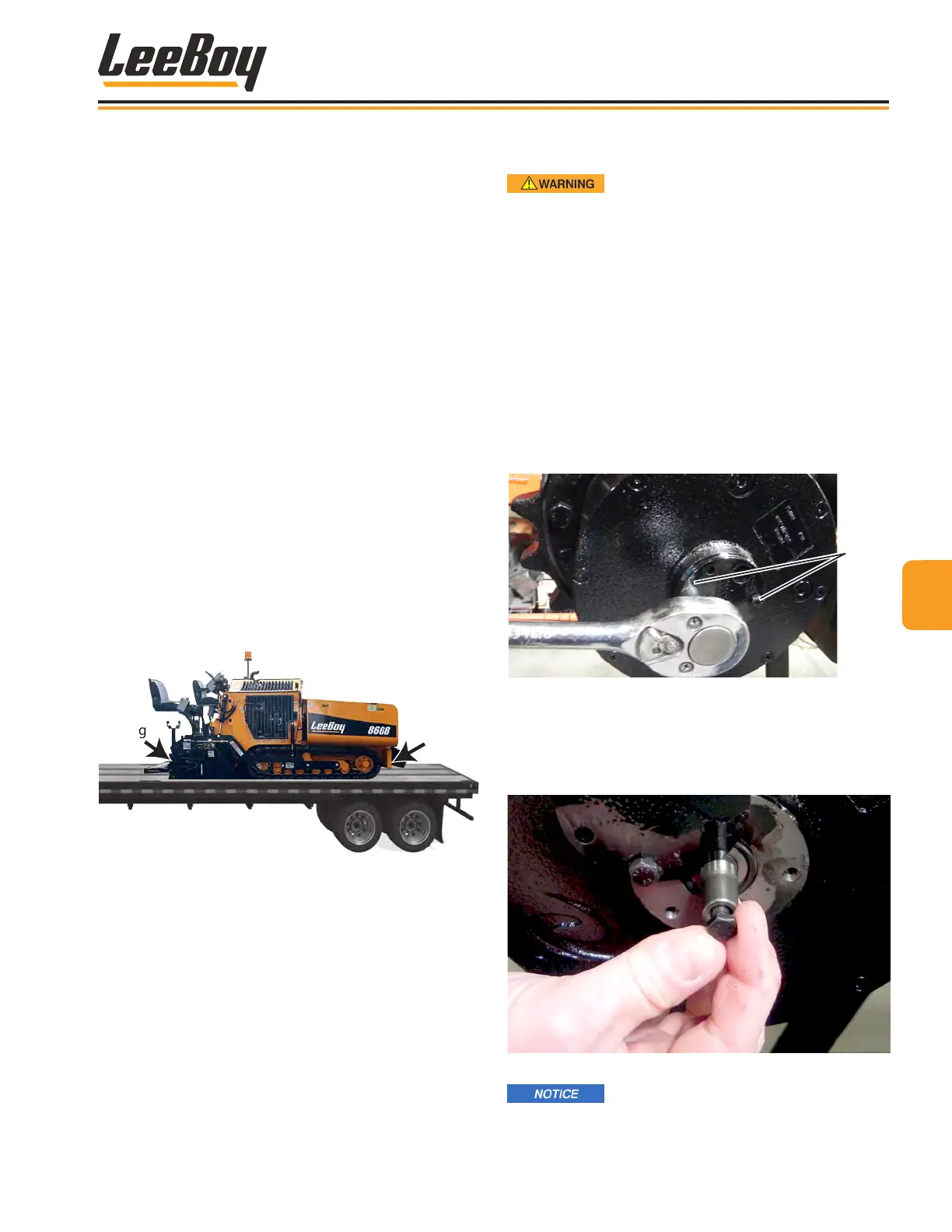

Tie-Down ProcedureTie-Down Procedure
1. Position paver in center of the trailer.
2. Attach tie-down chains to the front weight block
and the D-Rings in front of the torque hubs. (Figure
4-79).
3. Place chocks at wheels or tracks.
4. Ensure that all chains are tightly secured before
transporting the paver.
D-Ring
Hole
Figure 4-79. Tie-Down D-Ring Locations
TOWING
Ensure the paver is on level ground
and blocked to prevent machine from moving while
preparing for towing. Be especially careful after
disconnecting the torque hub as the paver could roll.
While it is strongly recommended that the paver be
transported rather than towed, there are situations
where you may need to tow the paver off the road until
a transport vehicle arrives. Do not tow paver long
distances.
You must disconnect the torque hub to prepare the
machine for towing as follows:
1. Using a wrench, loosen one of the two bolts on the
torque hub cap, then remove the other bolt and
retain for next step. (Figure 4-80)
Bolts
Figure 4-80. Remove Cap Bolts
2. Slide cap over and insert retained bolt into the
center of the hub. (Figure 4-81) This allows you to
pull the release mechanism out, which disconnects
the torque hub.
Figure 4-81.
Be sure to push release mechanism
back into place and reinstall/tighten bolts on cap
when nished moving the paver.
44
Operation
8608 Commercial Paver 4-39
