Pivot
Rod

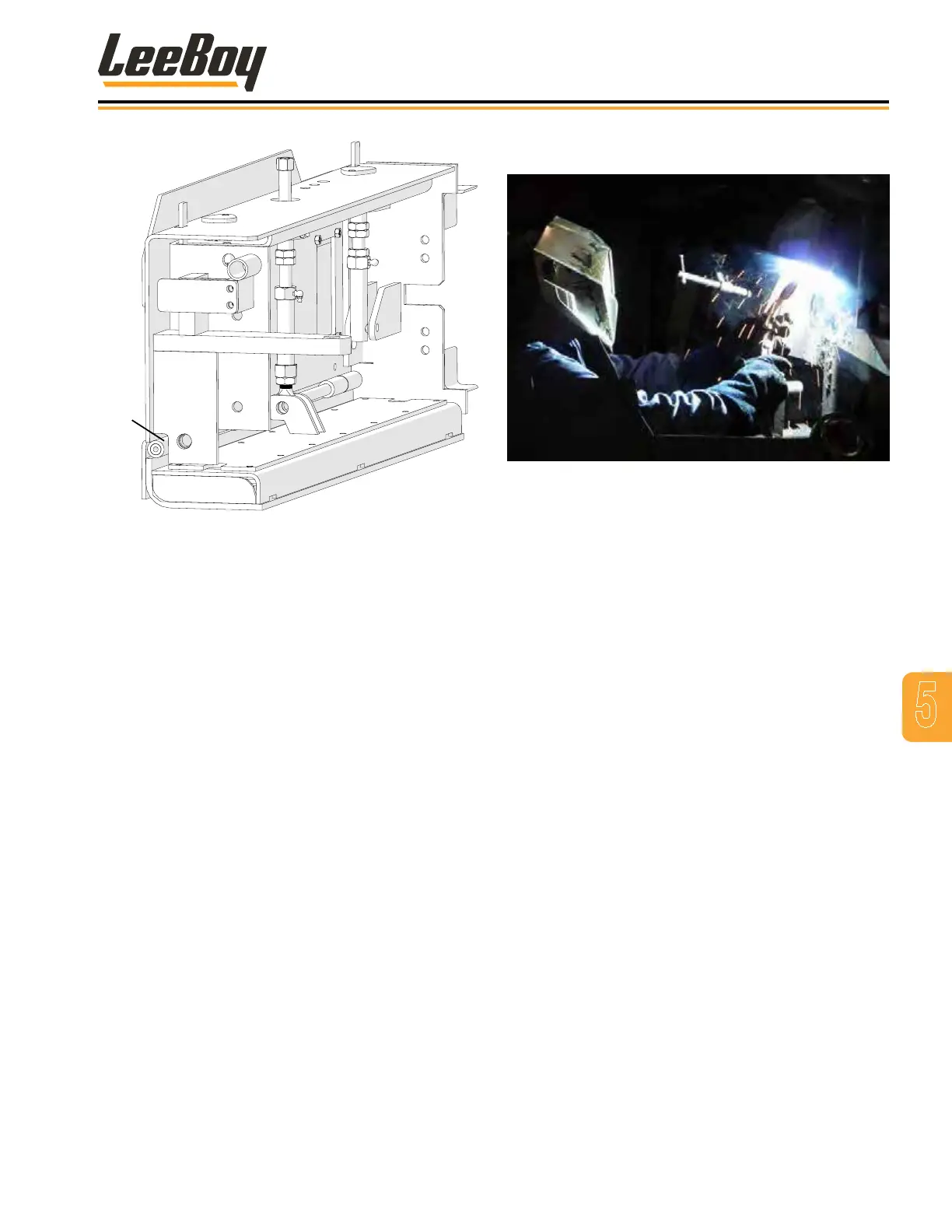

Figure 5-31 Pivot Rod
10. Lift the screed and disconnect the wearplate.
11. Clean all areas.
12. Position the new wearplate with a oor jack or by
lowering screed onto the oor and sliding in the
pivot rod.
13. Reconnect the element power wire and power
cable. Leave a little slack in the cable where it
enteres the protective hose tting.
14. Reattach adjustment screw to new wearplate.
15. Reinstall the endgate, adjusting the nuts so the
endgate and move up and down freely. Lock into
place with jam nut.
16. Reconnect the tilt screw.
WELDMENT
Figure 5-32. Welding
If the machine has been damaged or metal parts worn
due to extensive use, minor welding may be necessary
for repair. Welding is very dangerous. Only individuals
who are properly trained should weld in a dedicated
area away from others as even looking at ultraviolet light
from the ame can cause serious eye injury.
Welding hazards include toxic fumes, harmful dust,
light radiation, burns, combustion from sparks and the
potential for extensive damage to the eye. There is also
a danger of electric shock. If combustible or ammable
materials are nearby, the heat and sparks produced by
welding can cause res or explosions.
TURN THE BATTERY SWITCH OFF AND
DISCONNECT BATTERY TERMINALS BEFORE
WELDING ON THE MACHINE. (Page 5-12)
Electrical current can ignite re or cause an explosion,
therefore it is critical to turn off power to the machine. It
is also important to grind off the paint to ensure proper
ground on the area being welded.
DO NOT MAKE MODIFICATIONS TO THE MACHINE.
ONLY weld if needed for repair purposes. Weldment
modications to the machine can void your warranty.
5
LeeBoy 8616B Conveyor Paver 5-29
