LeeBoy 8616B - Harness, Front Manifold

HARNESS, FRONT MANIFOLD

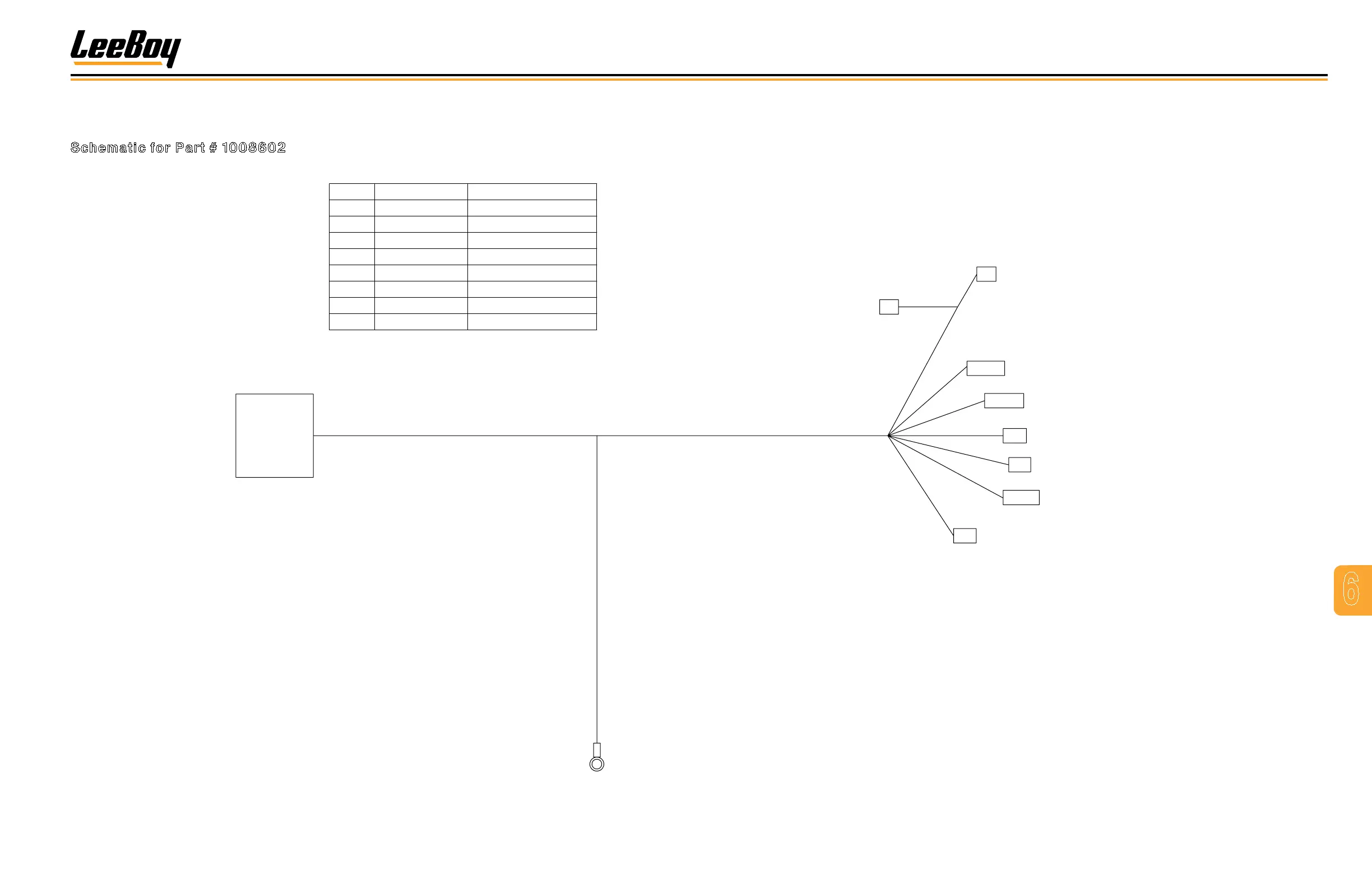

Schematic for Part # 1008602
Figure 6-7. Harness, Front Manifold
DT06-08S
27"
20"
20"
10"
10"
10"
10"
10"
10"
13"
3" 3"
DT04-2P
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
1 PUR
2 BLK
1 BLU/RED
2 BLK
1 YEL
2 BLK
1 ORG
2 BLK
1 WHT/BLK
2 BLK
1 GRY/BLK
2 BLK
1 BLU
2 BLK
1 BLU
2
LEFT CONV
RIGHT CONV
LEFT AUGER
RIGHT AUGER
VIBRATOR
2 SPEED
GENERATOR
HARNESS
GENERATOR
COIL
3/8" RING TERMINAL
C8
PIN COLOR FUNCTION
1 PUR LEFT CONV
2 YEL LEFT AUGER
3 BLU/RED RIGHT CONV
4 ORG RIGHT AUGER
5 GRY/BLK 2 SPEED
6 WHT/BLK VIBRATOR
7 BLU GENERATOR
8 N/A
LeeBoy 8616B Conveyor Paver 6-15
Schematics
6
