LeeBoy 8616B - Machine Overview

3
2
4
5
1
6
5
7
8
9
7
10
12
13
11
9

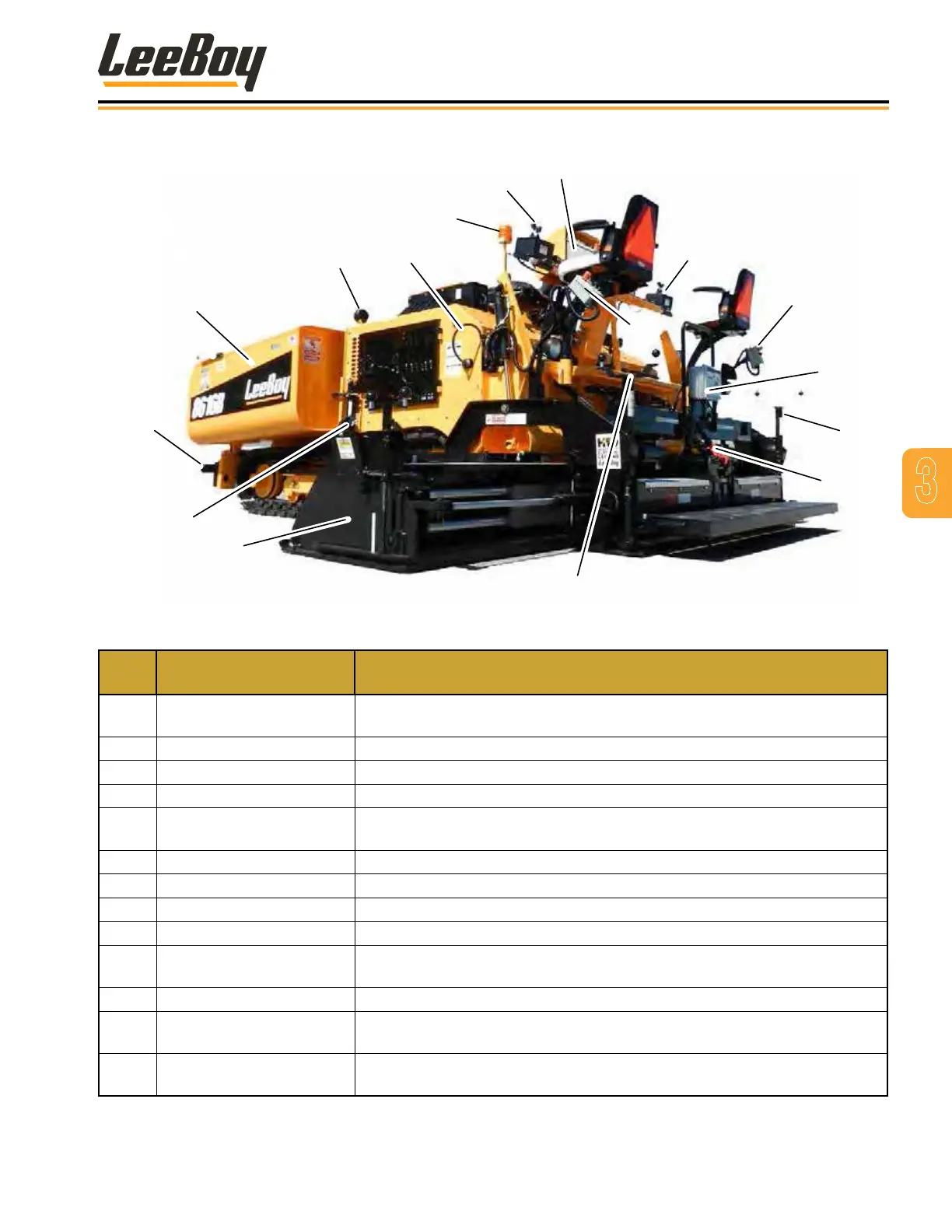

Figure 3-1. Operation Panels and Controls
ITEM
NO.
CONTROL NAME FUNCTION
1 Hopper
Receives and holds paving material load as conveyors move material to back
of the paver and screed.
2 Work Light Used for illuminate the path of the paver.
3 Spray Down Hose Used to spray the paver clean.
4 Beacon Light Used to alert surrounding vehicles and pedestrians.
5
Steering and Speed
Control Box
Contains various steering and screed controls (one on each side of
operator’s platform).
6 Control Panel Contains major paver systems and controls.
7 Screed Control Box Contains various screed controls (one on each side of machine).
8 Electric Heat Control Box Provides electric heat to the screed. Houses element breakers.
9 Flight Screw Controls the depth of the asphalt (one on each side).
10
Power Crown Control
(Option)
Toggle switch up or down for power crown.
11 Endgate Creates a clean edge in the paved base. Has vertical and angle adjustments.
12 Sonic Sensor Bracket
Holds the optional Sonic Conveyor/Auger Sensor in position. Connected to
the Sonic Auger Adjustment.
13 Truck Rollers
These rollers pushes the material delivery truck along as it delivers asphalt
into the paver hopper.
MACHINE OVERVIEW
3
Component Location
LeeBoy 8616B Conveyor Paver 3-5
