5
LeeBoy 8616B Conveyor Paver 5-11
High Gear Adjustment
This adjustment should only be
performed by an authorized LeeBoy dealer. Work
not performed by an authorized dealer can damage
machine and void the warranty.
Your authorized LeeBoy dealer will perform the tracking
adjustment on the high side gear by adjusting the
screw on the underside of the hydraulic motor. This
adjustment on the motor for the fast track must be
screwed in to equalize track speed.
Your LeeBoy dealer will perform the following
procedures:
1. With paver running, push the 2-Speed switch to the
ON position, activating high gear.
2. Adjust screw on bottom of hydraulic motor until you
feel back pressure on the adjustment screw. This
indicates adjustment is close.
3. Finalize adjustment by making a one-quarter
(1/4) turn at a time until the correct adjustment is
accomplished.
NOTE: If hydraulic motor has not been previously set,
ten revolutions of the adjustment screw may be
required before noticing any difference in travel.
ELECTRICAL SYSTEM
The electrical system is a 12-volt negative ground
system. Connect the positive (+) cable to the positive
(+) post of the battery. Connect the ground cable to
the negative (-) post of the battery. It is advisable to
disconnect the negative (-) cable rst and connect it last.
Reversed polarity can damage the electrical system.
Fire and Explosion Hazard! Always
observe battery polarity when connecting a battery
charger or jumper cables to the battery: negative (-)
to negative (-), positive (+) to positive (+). Failure to
do so can produce sparks.
When connecting a booster battery, connect one end
of the rst jumper cable to the positive (+) terminal of
the dead battery and the other end to the positive (+)
terminal of the booster battery. Connect one end of the
second jumper cable to the negative (-) terminal of the
booster battery and the other end to the frame of the
paver with the dead battery.
Fire and Explosion Hazard! Be sure
that the battery charger is in the OFF position before
connecting it to the battery.
Be sure to keep the battery fully charged during cold
weather to keep it from freezing. Freezing weather has
little effect on a fully-charged battery.
Battery

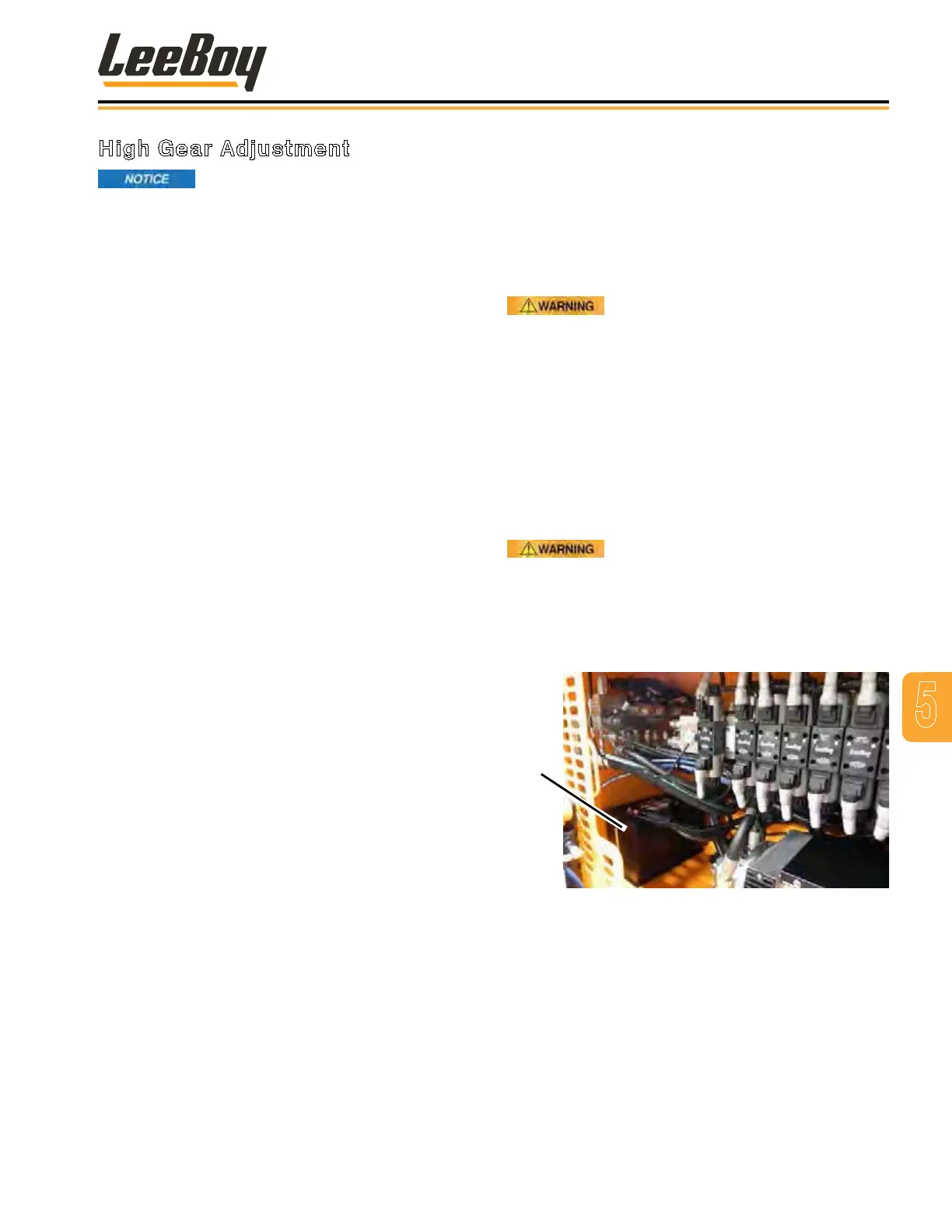

Figure 5-10. Battery Location
