LeeBoy 8616B - Harness, Main Manifold

HARNESS, MAIN MANIFOLD

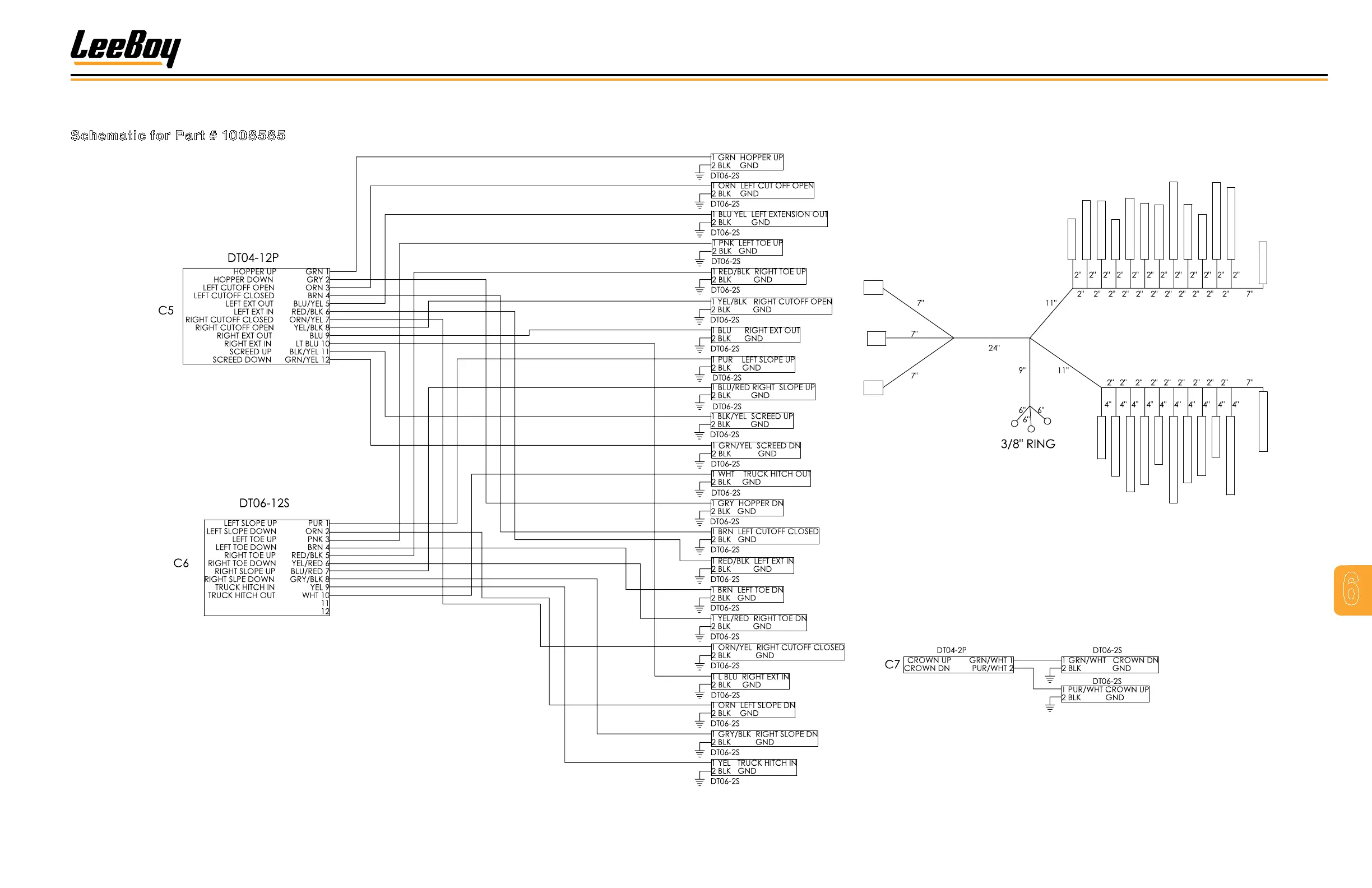

Schematic for Part # 1008585
Figure 6-6. Harness, Main Manifold
MANIFOLD CROWN
C5
SCREED DOWN
CROWN UP
SCREED UP
HITCH OUT
TRUCK HITCH IN
GROUNDS
LEFT CUTOFF CLOSED
LEFT EXT IN
LEFT TOE DOWN
RIGHT TOE DOWN
RIGHT CUTOFF CLOSED
RIGHT EXT IN
LEFT SLOPE DOWN
RIGHT SLOPE DOWN
HOPPER DOWN
HOPPER UP
LEFT CUT OFF OPEN
LEFT EXTENSION OUT
LEFT TOE UP
RIGHT TOE UP
RIGHT CUTOFF OPEN
RIGHT EXT OUT
LEFT SLOPE UP
RIGHT SLOPE UP
CROWN DOWN
C6
C7
LeeBoy 8616B Conveyor Paver 6-13
Schematics
