STEERING WHEEL (OPTION)
1
3
2
4

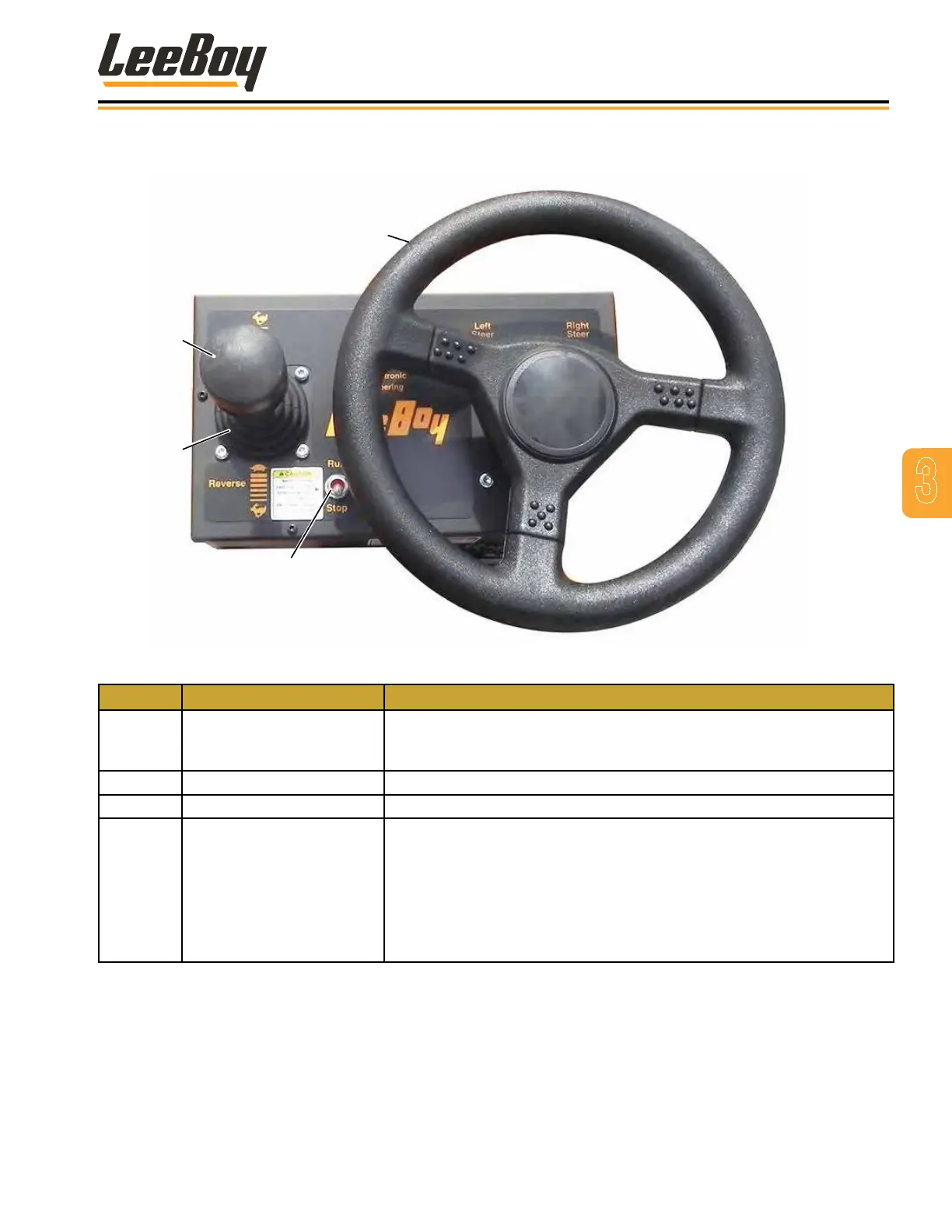

Figure 3-7. Steering Wheel Option
ITEM NO. CONTROL NAME FUNCTION
1 Forward/Reverse Joystick
Controls the speed of travel forward and reverse. The farther moved
in either direction, the faster the speed. When joystick is centered, the
machine is in neutral and the brake is engaged.
2 Steering Wheel Controls the direction of travel right or left.
3 Neutral Lock Locks the Forward/Reverse joystick in neutral.
4 Run/Stop Switch
Controls stopping the machine and activating or deactivating the operator
controls station. Operator control station is deactivated when the switch
is set to the STOP position, parking brake is applied and the machine will
not move. When setting the switch to RUN, the operator control station
is activitated, parking brake is released and the machine resumes to the
previously set speed.
NOTE: Only one operator control station can be active at a time.
