LeeBoy 8616B - Electric Screed Operation Controls

Electric Screed Operation Controls
3
4
5
6
1
2
7
10
8
9

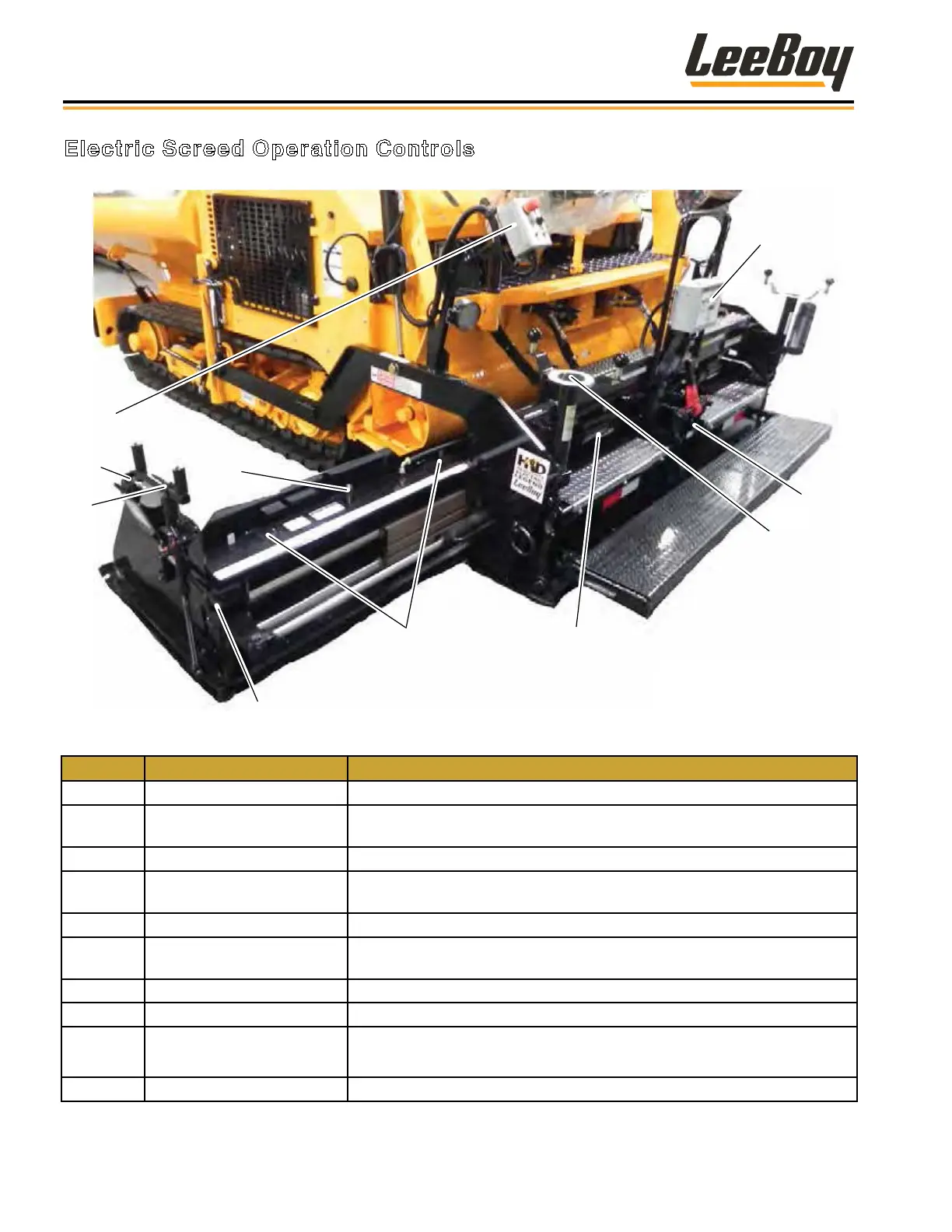

Figure 3-6. Screed Operation Controls
ITEM NO. CONTROL NAME FUNCTION
1 Screed Operator Controls Controls for screed functions.
2 Sonic Auger Sensor
Bracket
Holds the sonic auger sensor in proper position to maintain the proper
height of augered material. Connected to the sonic auger adjustment.
3 Depth Screw Controls the depth of the endgate.
4 Extension Angle of Attack
Screw
Adjusts the front of the extension wearplate to provide the best mat.
Moves up or down and can level extension at wide widths.
5 Tilt Screw Adjusts the tilt of the endgate.
6 Extension Vertical
Adjustment Screws (2)
Adjusts the front of the extension wearplate to provide the best mat.
Moves up or down and can level extension at wide widths.
7 Screed Vibrator Provides vibration to the screed frame for better mat compaction.
8 Flight Screw Controls the depth of the asphalt.
9 Crown and Valley Adjuster
Adjusts for positive crown or negative valley in wear plate.
NOTE: Powered adjustment option available.
10 Electric Heat Box Provides electric heat to the screed. Houses element breakers.
Component Location
LeeBoy 8616B Conveyor Paver3-10
