LeeBoy 8616B - Quick Reference

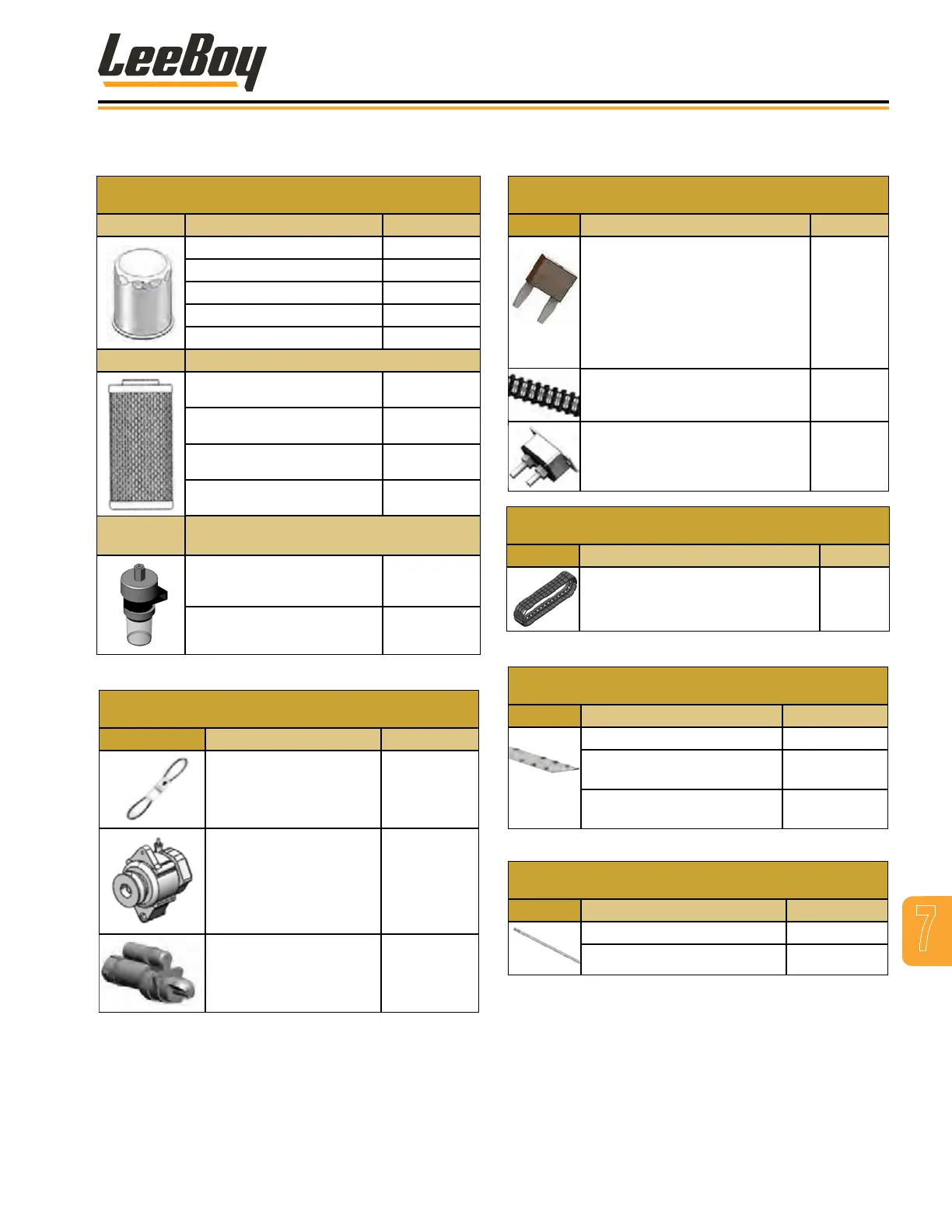

QUICK REFERENCE
FILTERS/STRAINERS
Engine Description Part #
Oil Filter 986537-03
Water Separator 1009253-19
Fuel Filter 1009253-19
Air Cleaner, Primary 38385-01
Air Cleaner, Secondary 1009253-16
Hydraulic
Hydraulic Filter Element 980350-01
Charge Filter 290030
Suction Strainer 1007095
Charge/Return Filter Head 982940
Spray
Down
Pump and Strainer Kit 1011738
Strainer 1011738-1
ENGINE COMPONENTS
Description Part #
Engine Belt 1009253-20
Alternator 1009253-21
Starter 1001166-03
ELECTRICAL COMPONENTS
Description Part #
FUSE KIT:
• 25 Amp (1)
• 10 Amp (2)
• 5 Amp (1)
• 20 Amp (14)
37303
36340
36746
36342
Terminal Block 685060
Breaker, 10 Amp 986546
TRACK ASSEMBLIES
Description Part #
Track Assembly w/Poly Pads 1008900
WEAR PLATES
Description Part #
Main Screed, 1/2” w/ Studs 1008056SRV
Screed Extension (Left or
Right)
1006382SRV
Heat Box Assembly (Left or
Right)
1006380SRV
HEATING ELEMENTS
Description Part #
Main Heating Element (4) 1007276SRV
Extensions (2) 1007278SRV
Specications and designs may change without prior notice. These
illustrations do not necessarily show the standard versions.
7
Illustrated Parts List
LeeBoy 8616B Conveyor Paver 7-3
