STEERING AND SPEED CONTROL BOX
1
3

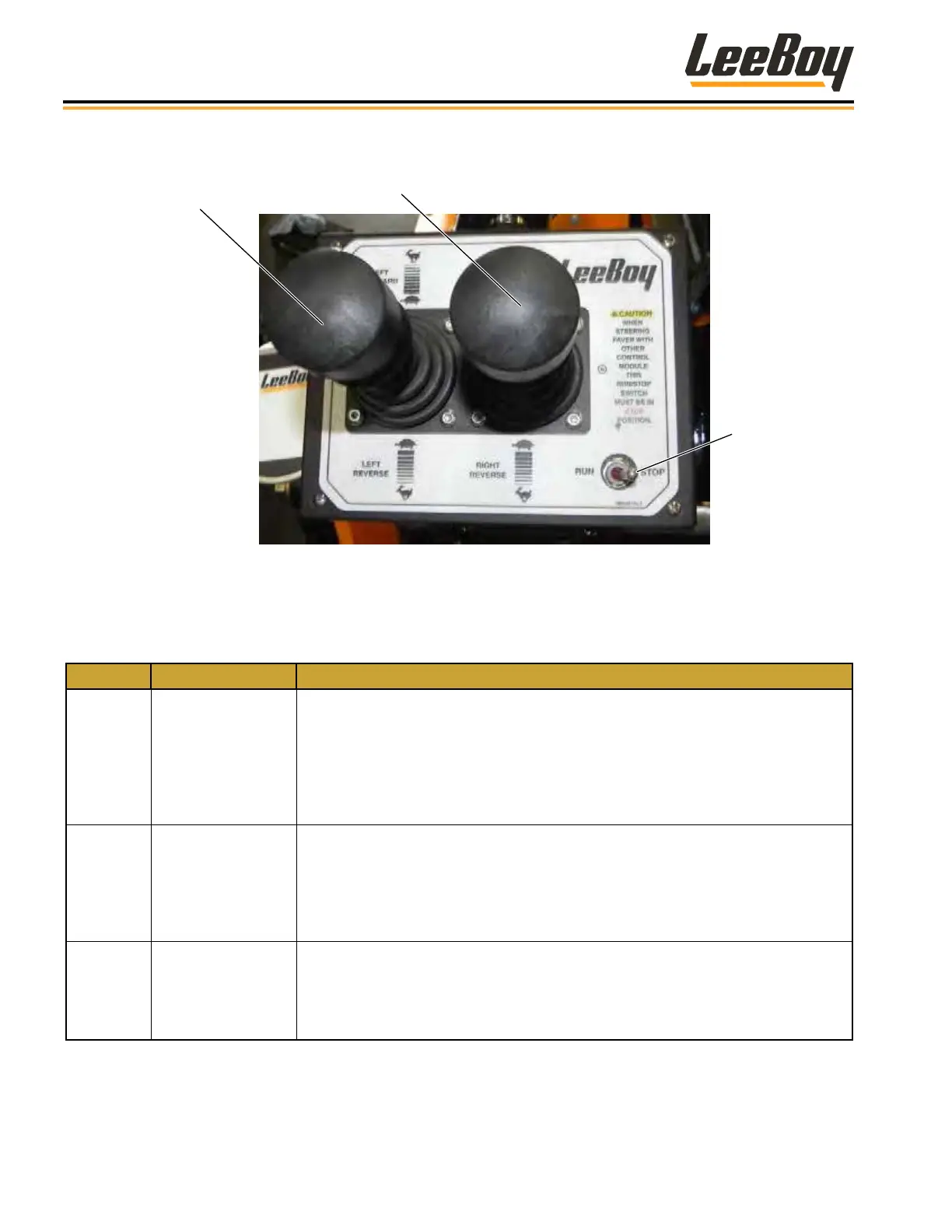

Figure 3-2. Steering and Speed Control Box
ITEM NO. CONTROL NAME FUNCTION
1 Left Steer Joystick Lever controls the speed and direction of travel forward and reverse. Pushing
joystick forward moves machine forward. The farther forward, the faster the
speed. Pulling joystick backward moves machine backward. The farther
backward, the faster the speed. When joystick is centered, the machine is in
neutral and brake comes on. Pushing left joystick farther forward than right
joystick steers the paver to the right. The farther forward, the more the paver
turns.
2 Right Steer
Joystick
Lever controls the speed and direction of travel forward and reverse. Push-
ing joystick forward moves machine forward. The farther forward the faster the
speed. Pulling joystick backward moves machine backward. The farther back-
ward, the faster the speed. When joystick is centered, the machine is in neutral
and brake comes on. Pushing right joystick farther forward than left joystick
steers the paver to the left. The farther forward, the more the paver turns.
3 Run/Stop Switch The Run/Stop switch controls stopping the machine and activating/deactivating
the operator control station. When the switch is set to the STOP position,
operator control station is deactivated, parking brake is applied, and machine
will not move. When switch is set to RUN, operator control station is activated,
parking brake is released, and machine resumes to previously set speed.
Component Location
LeeBoy 8616B Conveyor Paver3-6
