LeeBoy 8616B - Harness, Jumper, 47 Pin Dash to Pedestal

HARNESS, JUMPER, 47 PIN DASH TO PEDESTAL

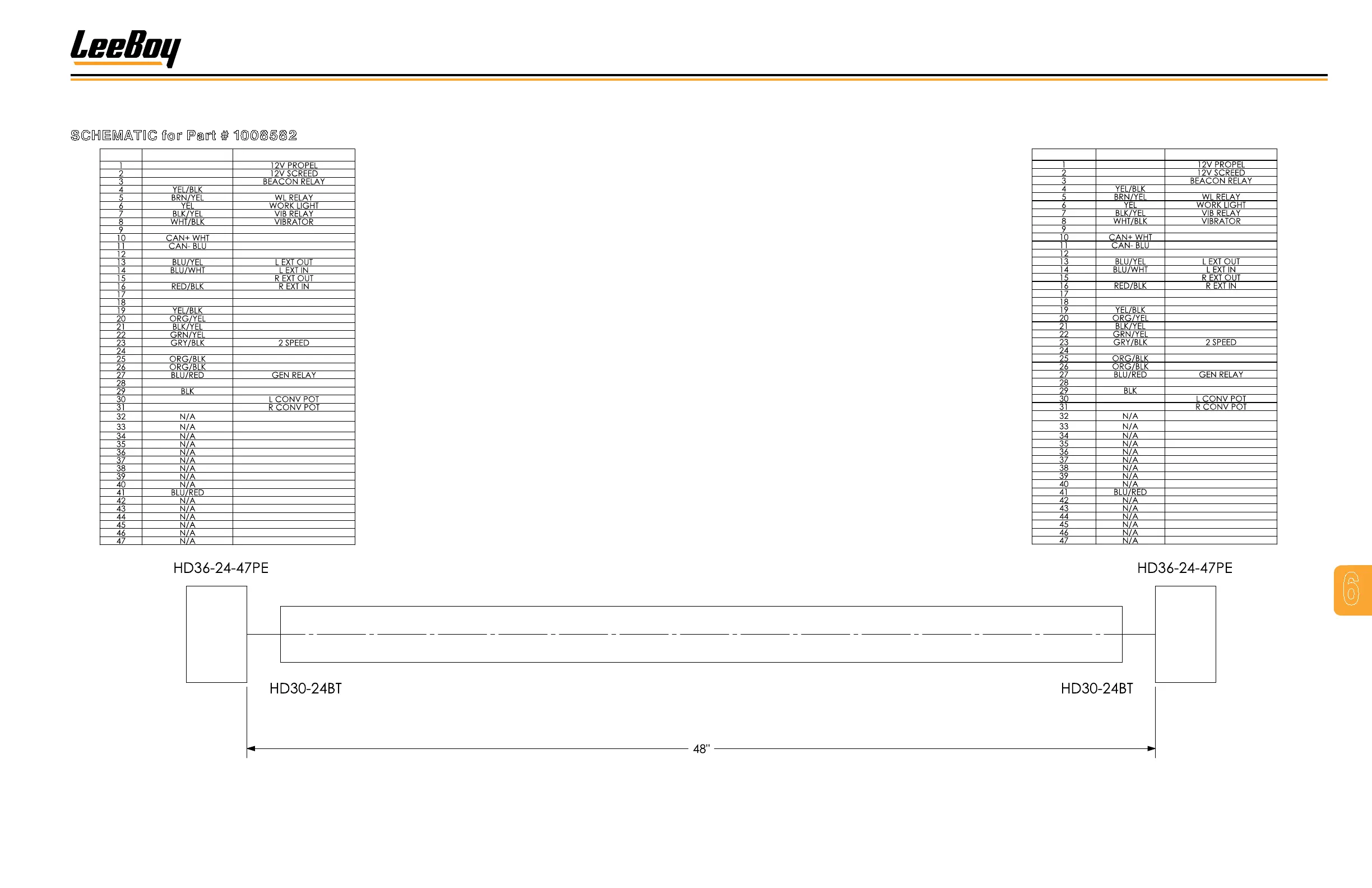

SCHEMATIC for Part # 1008582
Figure 6-5. Harness Jumper, 47 Pin Dash to Pedestal
PIN COLOR FUNCTION
RED
RED
BRN
BEACON
BLU GRADE CONTROL
CAN BUS
CAN BUS
SHIELD CAN BUS
LTBLU
BRN L CUTOFF OPEN
ORG L CUTOFF CLOSE
R CUTOFF OPEN
R CUTOFF CLOSE
SCREED RAISE
SCREED FLOAT
WHT HORN
E STOP
ESTOP
RED SENSOR PWR
SENSOR GND
PRP
BLU
POWER CROWN
PIN COLOR FUNCTION
RED
RED
BRN
BEACON
BLU GRADE CONTROL
CAN BUS
CAN BUS
SHIELD CAN BUS
LTBLU
BRN L CUTOFF OPEN
ORG L CUTOFF CLOSE
R CUTOFF OPEN
R CUTOFF CLOSE
SCREED RAISE
SCREED FLOAT
WHT HORN
E STOP
ESTOP
RED SENSOR PWR
SENSOR GND
PRP
BLU
POWER CROWN
