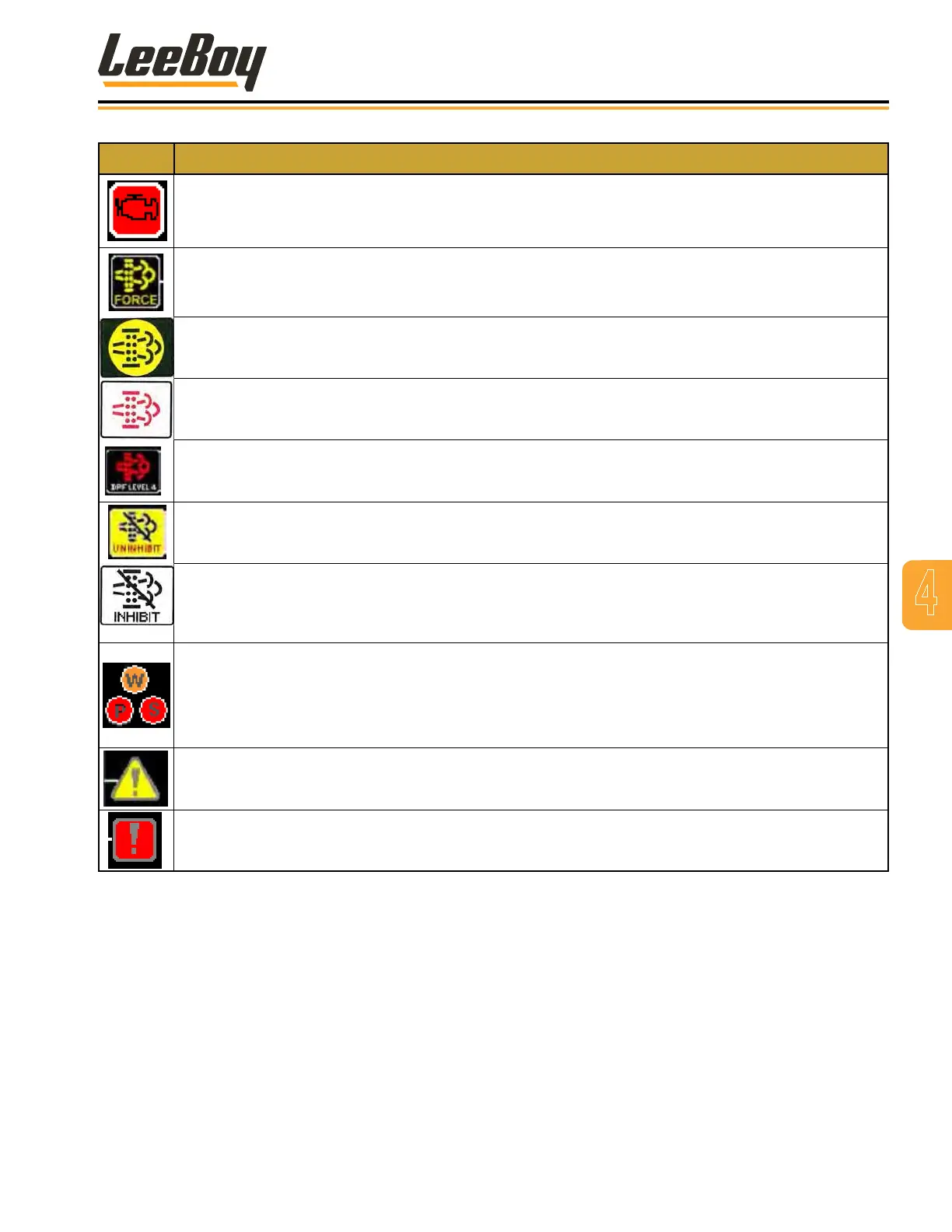

Icon Status Description
Check Engine. Warning light that illuminates when the engine needs attention.
Force Regen. Illuminates when the system is forcing engine regeneration.
DPF Notice. A solid lamp is the initial warning that soot levels are rising.
DPF Flashing. Any time the lamp begins ashing, the operator should increase loading on the engine
so regeneration is possible. If increased load does not cause an automatic regeneration, the operator
should IMMEDIATELY perform a parked, manual regeneration.
DPF (Diesel Particulate Filter) Level. Indicates current DPF level. Changes color with each level.
Levels are 0 - 5. If the DPF reaches Level 4 - 5, non-warranty factory assistance from the engine
manufacturer is required.
Regen Uninhibit. Communicates with the engine that regeneration is not wanted or is unsafe to
regenerate at this time.
DPF Regen Inhibit. The user may choose to inhibit the regeneration if conditions are too hazardous for
high-exhaust temperatures. When this lammp is illuminated, a regeneration cannot be performed and
soot levels will continue to rise. Unless hazardous conditions exist, the Regen Inhibit switch and this
lamp should remain off.
W- Warning. Warns operator there is a condition with the ECM (Engine Control Module).
P - Protect. Noties operator ECM has gone into protect mode. Engine will not start.
S - Stop. Noties operator to shut the engine down.
All three warning lights are directly broadcast from the engine ECM on the CAN bus.
Engine Faults. If this light illuminates, push soft key to display all active and inactive engine faults.
System Faults. When this light illuminates, push soft key to display all active system faults.
4
Operation
LeeBoy 8616B Conveyor Paver 4-9
