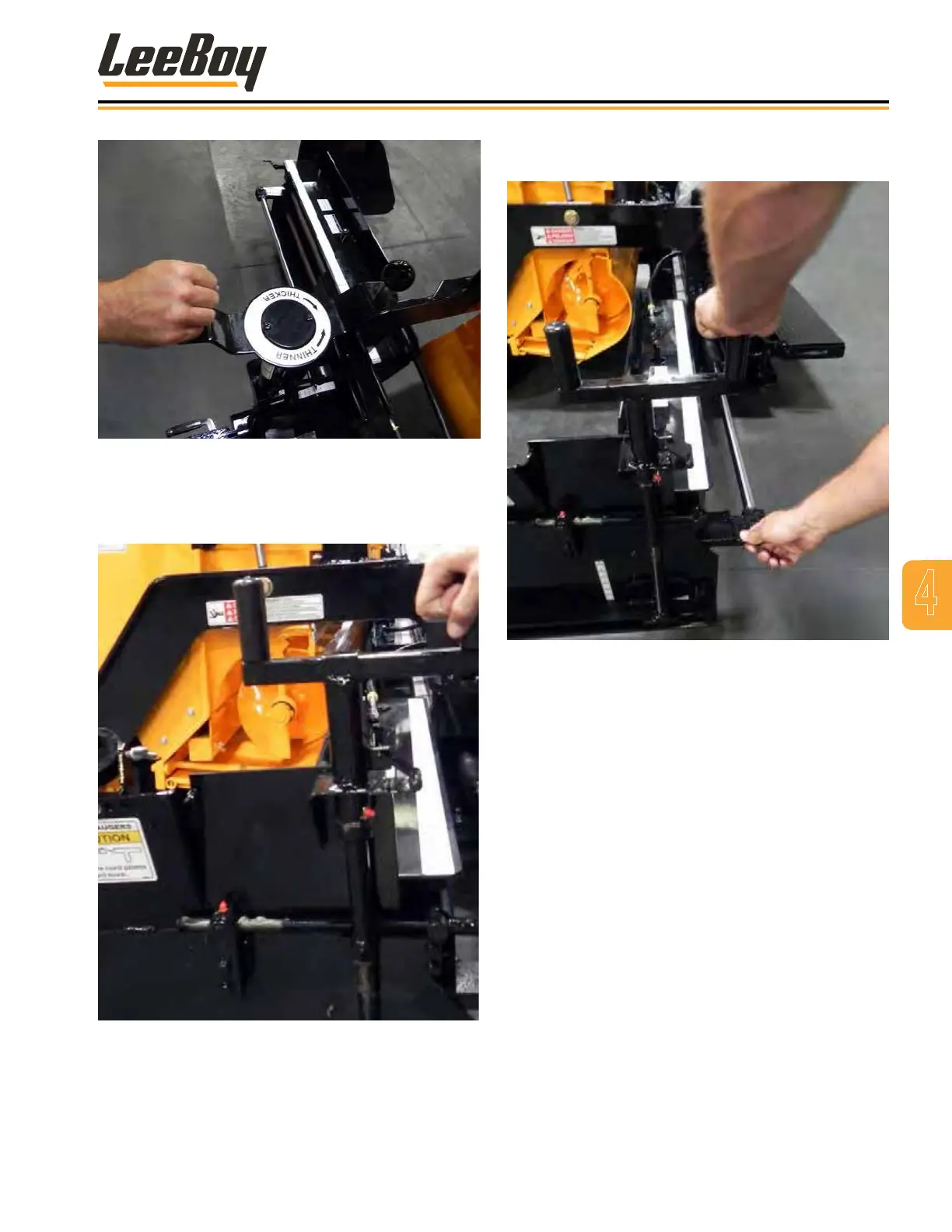

Figure 4-13. Flight Screw Adjustment
6. On the rst pass, turn the endgate depth screw to
lower the endgate until it is about 1/4-inch (6.35 mm)
below the screed. (Figure 4-14)
Figure 4-14. Endgate Depth Screw Adjustment
7. Turn the tilt screw so the front of the endgate tilts
down slightly when the screed is lifted. This will allow
the endgate to set itself to the grade. (Figure 4-15)
NOTE: Never allow the endgate to carry the weight
of the screed to prevent uneven compaction.
Figure 4-15. Endgate Tilt Screw Adjustment
8. If the endgate digs into the asphalt at the front,
adjust the tilt screw until the endgate tilts back more.
9. When making a joint, the endgate must be set to
where it ts ush with bottom of screed.
10. On the rst pass, leave approximately six to eight
inches (15 - 20 cm) of unrolled asphalt where the
joint will be made.
11. When making a joint, the endgate must be set to
where it ts ush with bottom of screed.
NOTE: Keep runners clean. When making a joint,
spray solvent on the runners.
12. If the joint looks too high or too low, adjust the ight
screw on the screed one turn at a time and allow
four to ve feet (1.2 - 1.4 m) of travel to correct itself.
NOTE: Too much adjustment up or down may cause
uneven pavement.
13. If making a cold joint, set the endgate down about
1/4 inch (6.35 mm) for a nice, even edge.
4
Operation
LeeBoy 8616B Conveyor Paver 4-13
