June 2018
Legrand PDU User Guide 51
An RJ-12 to RJ-45 adapter is recommended to connect a DPX or DPX2 sensor package to
DPX3-ENVHUB4.

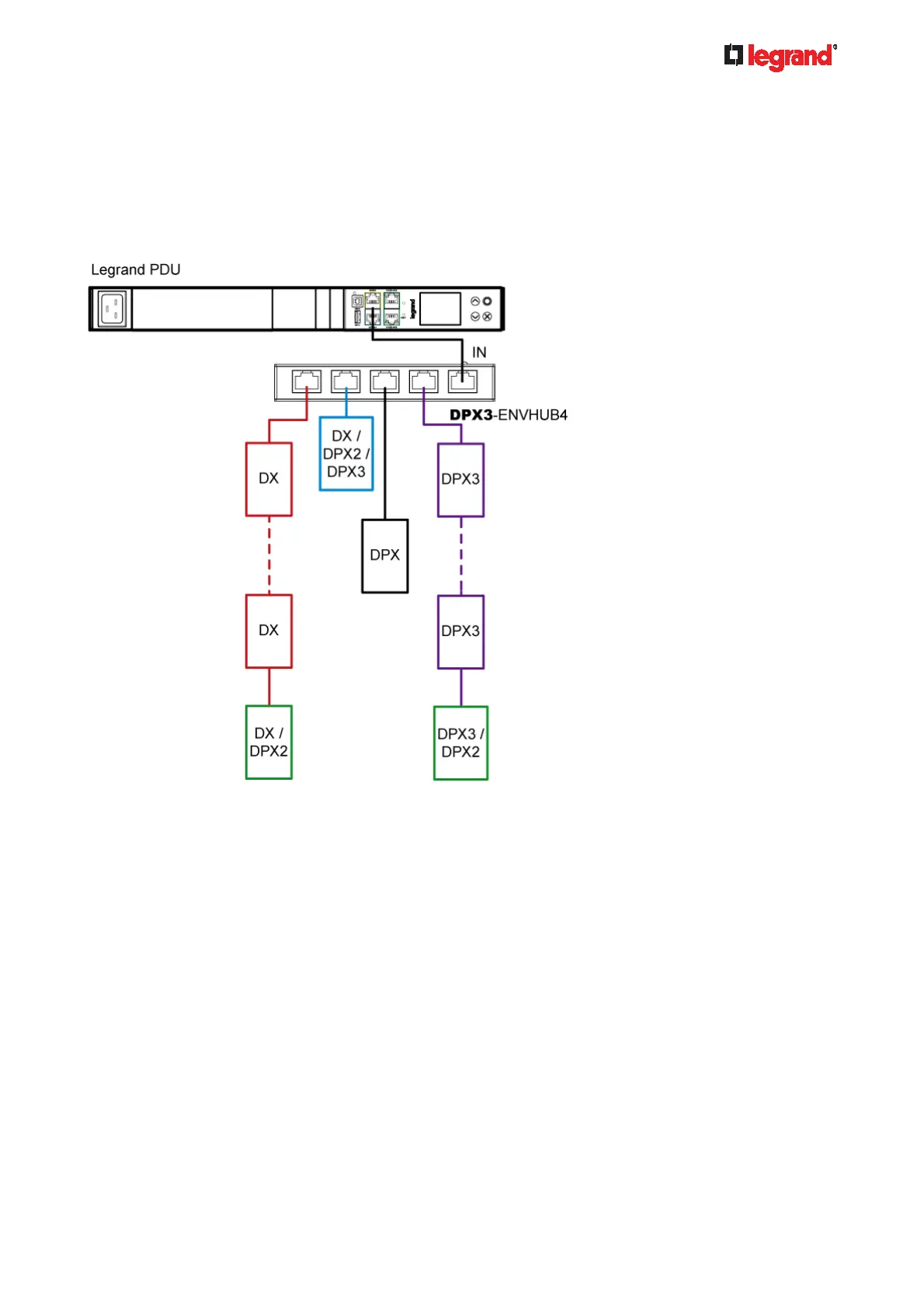

In the following diagrams, the sensor package in "green" can be replaced by a DPX2 sensor package.
The sensor package in "blue" can be one DPX2, DPX3 or DX sensor package.
This section only illustrations the following three combinations, but actually there are tens of different
combinations by using the DPX3-ENVHUB4 sensor hub.
