 1 Warned: 1 'numeric' sensor enters the warning state.
 List of alerted sensors:
Two icons are used to indicate various sensor states.
Icons Sensor states
Numeric sensors:
 above upper warning
 below lower warning
Numeric sensors:
 above upper critical
 below lower critical
State sensors:
 alarmed state
For details, see Sensor/Actuator States (on page 121).

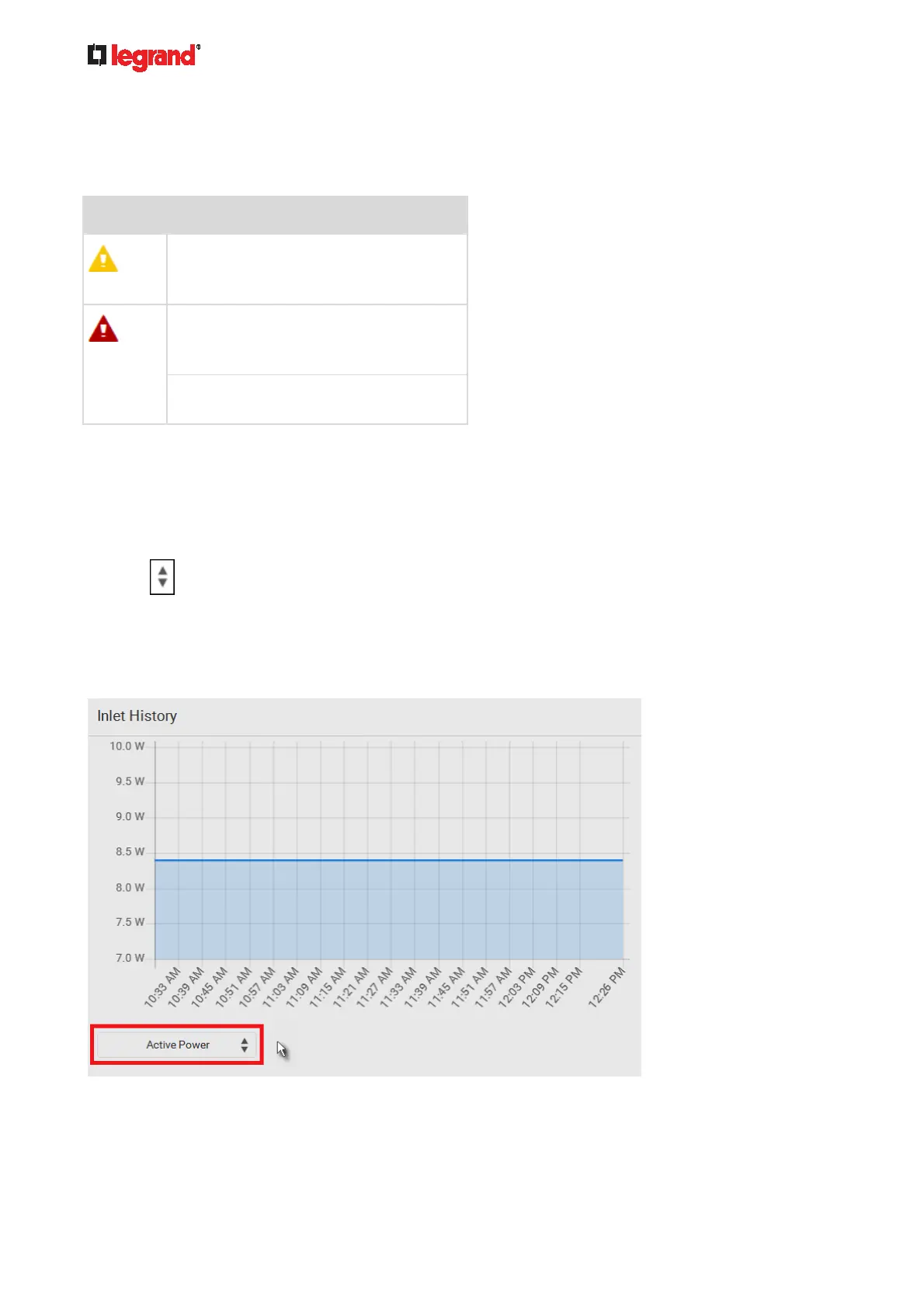

Dashboard - Inlet History
The inlet's power chart helps you observe whether there were abnormal events within the past tens of
minutes. The default is to show the inlet's active power data.
You can have it show the chart of other inlet power data. Simply select a different data type by clicking the
selector
below the diagram. Available data types include:
 RMS current
 RMS voltage
 Active power
 Apparent power
